Visaton FR 10 HMP 4 Ohm, 4 Inch, Full Range Speaker

FR 10 HMP · 4 Ω · part 4880 — Product photo

Product photo · Enlarge image

FR 10 HMP · 4 Ω · part 4880 — Product photoProduct photo FR 10 HMP · 4 Ω · part 4880 — Dimension drawingDimension drawing FR 10 HMP · 4 Ω · part 4880 — Response and impedanceResponse and impedance FR 10 HMP · 4 Ω · part 4880 — Directivity patternDirectivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

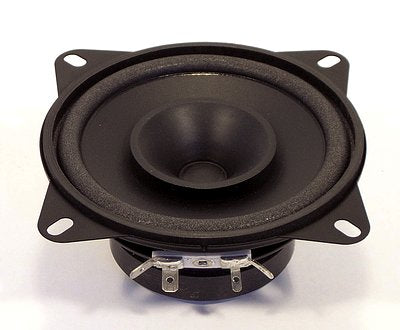

FR 10 HMP · 4 Ω · part 4880 — Product photo

Product photo

Open original image
Part number: 4880

A coated dual-cone driver for vehicle and motorhome audio.

Nominal size
10 cm / 4 inch
Impedance
4 Ω
Rated power
20 W
Cut-out
94 mm
Sensitivity
86 dB (1 W/1 m)
Resonance
120 Hz
ex VAT
£9.54 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The FR 10 HMP combines a waterproof coated cone with a European standard basket for vehicle and motorhome installations. Its dual-cone design covers speech and music without a separate tweeter. The 4 Ω driver handles 20 W rated power; front-side IP64 protection depends on fitting it into a sealed enclosure.

Typical applications

  • Vehicle audio
  • Motorhome audio
Full specifications
FR 10 HMP · 4 Ω
Rated power20 W
Maximum power30 W
Nominal impedance4 Ω
Frequency response (−10 dB)90–20000 Hz
Mean sound pressure level86 dB (1 W/1 m)
Opening angle (-6 dB)87°/4000 Hz
Excursion limit±2 mm
Resonance frequency fs120 Hz
Height of front pole-plate2 mm
Voice coil diameter14 mm
Height of winding5 mm
Cut-out94 mm
Net weight0.268 kg
Terminals2 x 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Protective systemIP64 — front side in a sealed enclosure
Temperature range–25 to 70 °C
Dimensions and drawings
FR 10 HMP · 4 Ω · part 4880 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for a 94 mm panel opening and match the slotted fixings to the vehicle mounting. Leave clearance for the magnet, projecting terminals and window mechanisms. Optional grilles: 4642, 4640 and 4744.

Seal the mounting joint into a sealed enclosure and protect the rear and terminals from moisture. IP64 applies to the front only; adhesive and a front grille may be needed to complete the seal.

Use an amplifier suitable for the 4 Ω load and follow the polarity marks. Check blade width and thickness before choosing connectors, insulate the connections and secure the wiring clear of the moving parts.

Test the driver in the intended enclosure before fixing the cabinet design. Keep the rear acoustic space clear and check low-frequency cone travel at the intended operating level; a small driver’s usable bass depends on the enclosure and required output.
