Visaton FR 6.5 8 Ohm, 6.5 Inch, Full Range Speaker

FR 6.5 · 8 Ω · part 31065 — Product photo

Product photo · Enlarge image

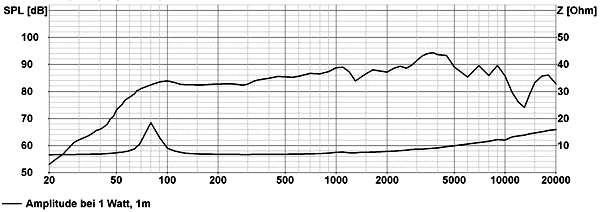

FR 6.5 · 8 Ω · part 31065 — Product photo Product photo FR 6.5 · 8 Ω · part 31065 — Dimension drawing Dimension drawing FR 6.5 · 8 Ω · part 31065 — Response and impedance Response and impedance FR 6.5 · 8 Ω · part 31065 — Directivity pattern Directivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

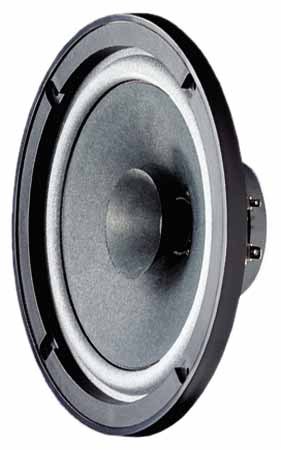

FR 6.5 · 8 Ω · part 31065 — Product photo

Product photo

Open original image
Part number: 31065

A 16 cm dual-cone driver for public-address and ceiling installations.

Nominal size
16 cm / 6.5 inch
Impedance
8 Ω
Rated power
40 W
Cut-out
143 mm
Sensitivity
87 dB (1 W/1 m)
Resonance
75 Hz
ex VAT
£23.94 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The FR 6.5 uses a tweeter cone and a rising high-frequency response to support clear sound reinforcement. Its impregnated cone resists moisture, and the decoration ring can be removed to suit the mounting arrangement. The 8 Ω driver handles 40 W rated power and is suitable for ceiling speakers and electronic musical instruments.

Typical applications

  • Public-address systems
  • Ceiling speakers
  • Electronic musical instruments
Full specifications
FR 6.5 · 8 Ω
Rated power40 W
Maximum power60 W
Nominal impedance8 Ω
Frequency response (−10 dB)70–20000 Hz
Mean sound pressure level87 dB (1 W/1 m)
Opening angle (-6 dB)41°/4000 Hz
Excursion limit±3 mm
Resonance frequency fs75 Hz
Magnetic induction0.75 T
Magnetic flux190 µWb
Height of front pole-plate4 mm
Voice coil diameter20 mm
Height of winding4 mm
Cut-out143 mm
Net weight0.47 kg
D.C. resistance Rdc6.8 Ω
Mechanical Q factor Qms4.94
Electrical Q factor Qes3.26
Total Q factor Qts1.96
Equivalent volume Vas16 l
Effective piston area Sd129 cm²
Dynamically moved mass Mms5.9 g
Force factor Bxl2.5 T m
Inductance of the voice coil L0.8 mH
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Temperature range–25 to 70 °C
Dimensions and drawings

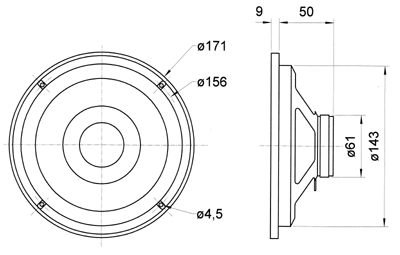

FR 6.5 · 8 Ω · part 31065 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for a 143 mm opening, a 171 mm outer diameter and the fixing positions shown in the drawing. Support the basket securely and leave room for the rear terminals. Keep the rear and connections dry; the treated cone does not make the whole installation waterproof.

Mount on a rigid panel with a continuous seal around the frame to prevent air leaks and rattles. Keep the cone and surround clear of the grille and internal parts.

Use an amplifier suitable for the 8 Ω load and follow the polarity marks. Check blade width and thickness before choosing connectors, insulate the connections and secure the wiring clear of the moving parts.

For a 100 V line system, connect through a correctly rated line transformer; do not connect this low-impedance driver directly to the line.

Use this impedance version’s enclosure parameters when developing a cabinet, and test the response at the intended listening level. Allow for the volume occupied by the driver and keep damping material clear of the cone and terminals.
