Visaton FR 9.15, 4 Ohm, 4 x 6 Inch - Full Range Oval Loudspeaker

Product Description

Oval full-range driver (9 x 15 cm). Well-balanced frequency response makes this speaker ideal for both voice and music reproduction e.g. extremely well suited to use in vehicles. Minimum depth required.

Technical Data:
Rated power 15 W
Maximum power 30 W
Nominal impedance Z 4 Ohm
Frequency response 75–16000 Hz
Mean sound pressure level 85 dB (1 W/1 m)
Maximum cone displacement 3 mm
Resonance frequency fs 120 Hz
Magnetic induction 0,9 T
Magnetic flux 170 µWb
Height of front pole-plate 3 mm
Voice coil diameter 20 mm
Height of winding 5 mm

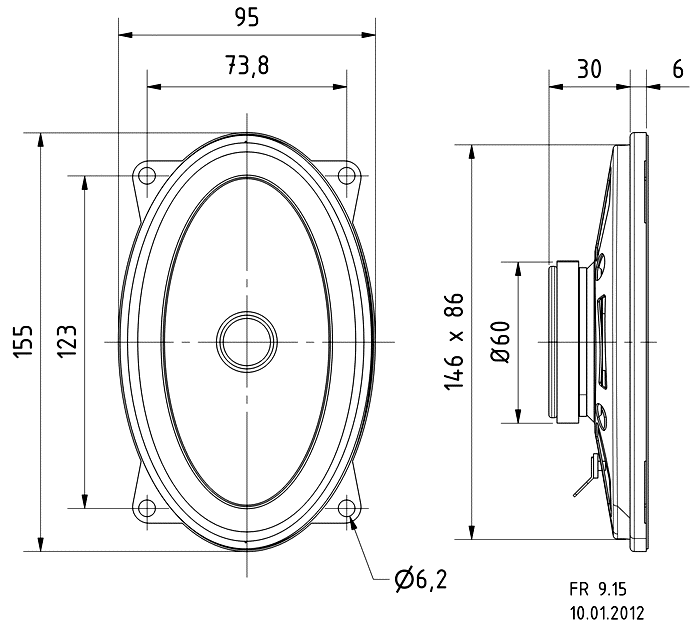

Cutout diameter 146 x 87 mm (oval)
Net weight 0,277 kg
D.C. resistance Rdc 3,5 Ohm
Mechanical Q factor Qms 8,90
Electrical Q factor Qes 2,29
Total Q factor Qts 1,82
Equivalent volume Vas 2,9 l
Effective piston area Sd 79 cm²
Dynamically moved mass Mms 4,6 g
Force factor Bxl 2,3 T m
Inductance of the voice coil L 0,3 mH
Heat resistance −25 ... 70 °C

ex VAT
£14.23 inc VAT
