Visaton FRS 10 WP 4 Ohm (Black), 4 Inch, Waterproof Speaker

Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
This black 4 Ω FRS 10 WP combines 25 W rated power with 90 dB sensitivity at 1 W/1 m. Its construction suits outdoor sound systems and installations exposed to saltwater. The front-side IP65 rating depends on correct installation in a sealed enclosure.
Typical applications
- Outdoor PA and weatherproof column systems
- Boats, ships and open vehicles
- Sauna speaker systems within the specified conditions
- Model boat audio
Full specifications
| Rated power | 25 W |
|---|---|
| Maximum power | 50 W |
| Nominal impedance | 4 Ω |

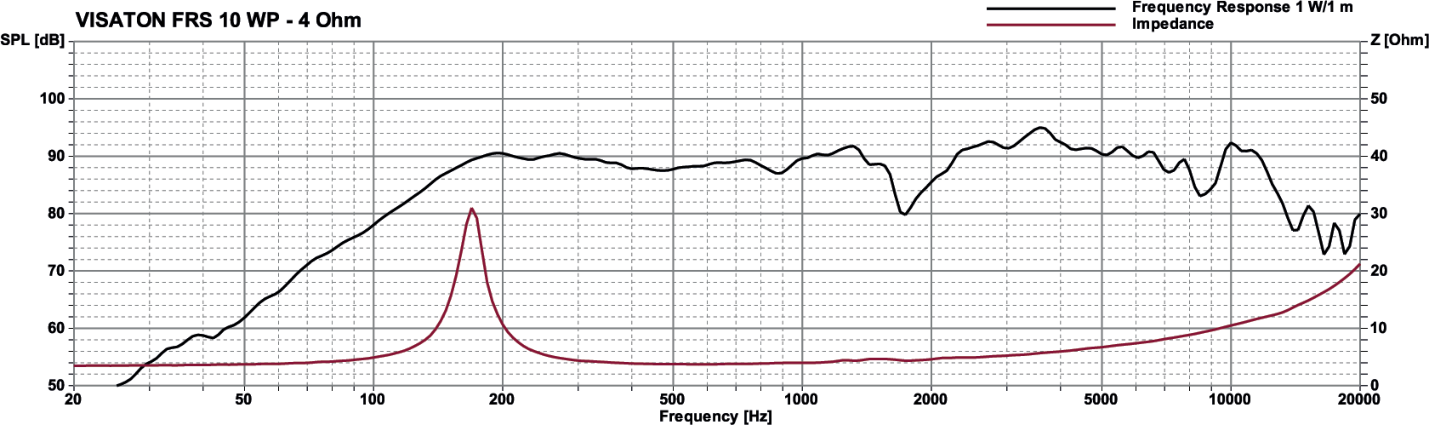

| Frequency response (−10 dB) | 90–19000 Hz |
| Mean sound pressure level | 90 dB (1 W/1 m) |

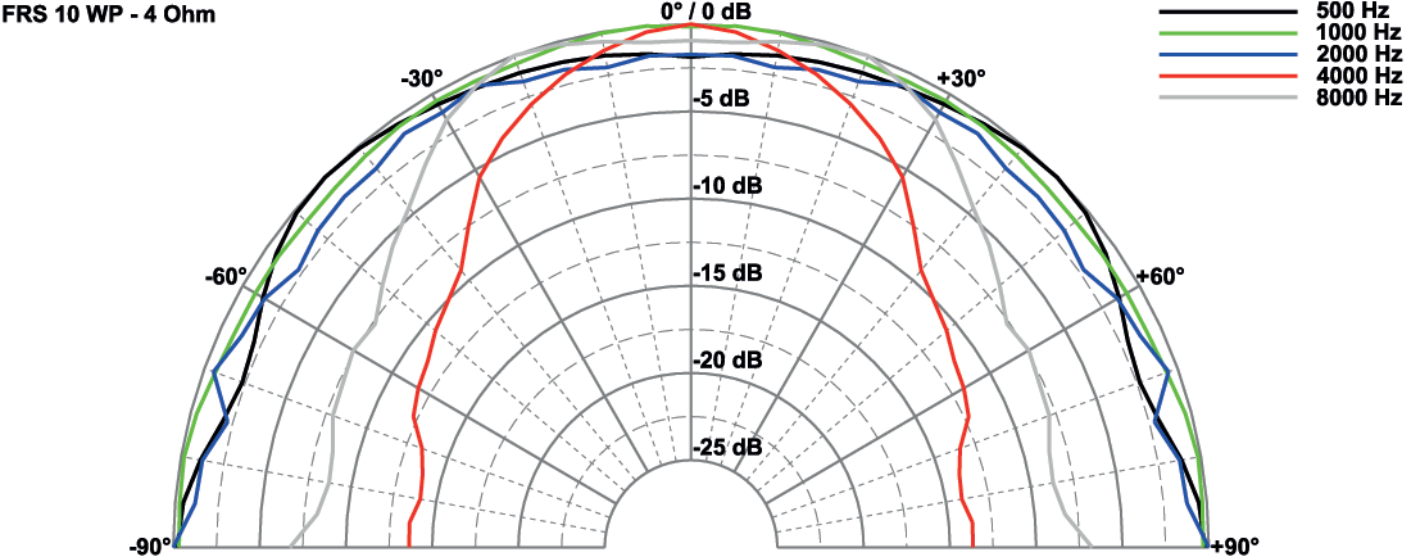

| Opening angle (−6 dB) | 64°/4000 Hz |
| Excursion limit | ±3 mm |
| Resonance frequency (fs) | 190 Hz |
| Magnetic induction | 1.0 T |
| Magnetic flux | 190 µWb |
| Height of front pole-plate | 3 mm |
| Voice coil diameter | 20 mm |
| Height of winding | 5 mm |
| Cut-out diameter | 92 mm |
| Net weight | 0.36 kg |
| DC resistance (Rdc) | 3.4 Ω |
| Mechanical Q factor Qms | 8.29 |
| Electrical Q factor Qes | 1.02 |
| Total Q factor Qts | 0.91 |
| Equivalent volume Vas | 2 l |
| Effective piston area Sd | 57 cm² |
| Dynamically moved mass Mms | 2.4 g |
| Force factor Bxl | 3.8 Tm |
| Inductance of the voice coil L | 0.2 mH |
| Colour | Black |
| Terminals | 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-) |
| Protective system | IP65 at the front when installed in a sealed enclosure |
| Temperature range | −40 to 120 °C |
| Low-temperature test | EN 60068-2-1: −40 °C for 96 hours |
| Low-temperature requirements | Germanischer Lloyd |
| Plastic flammability rating | PC plastic, UL 94 V-0 |
| Ball resistance | Ball-resistant component; suitability depends on the finished installation |

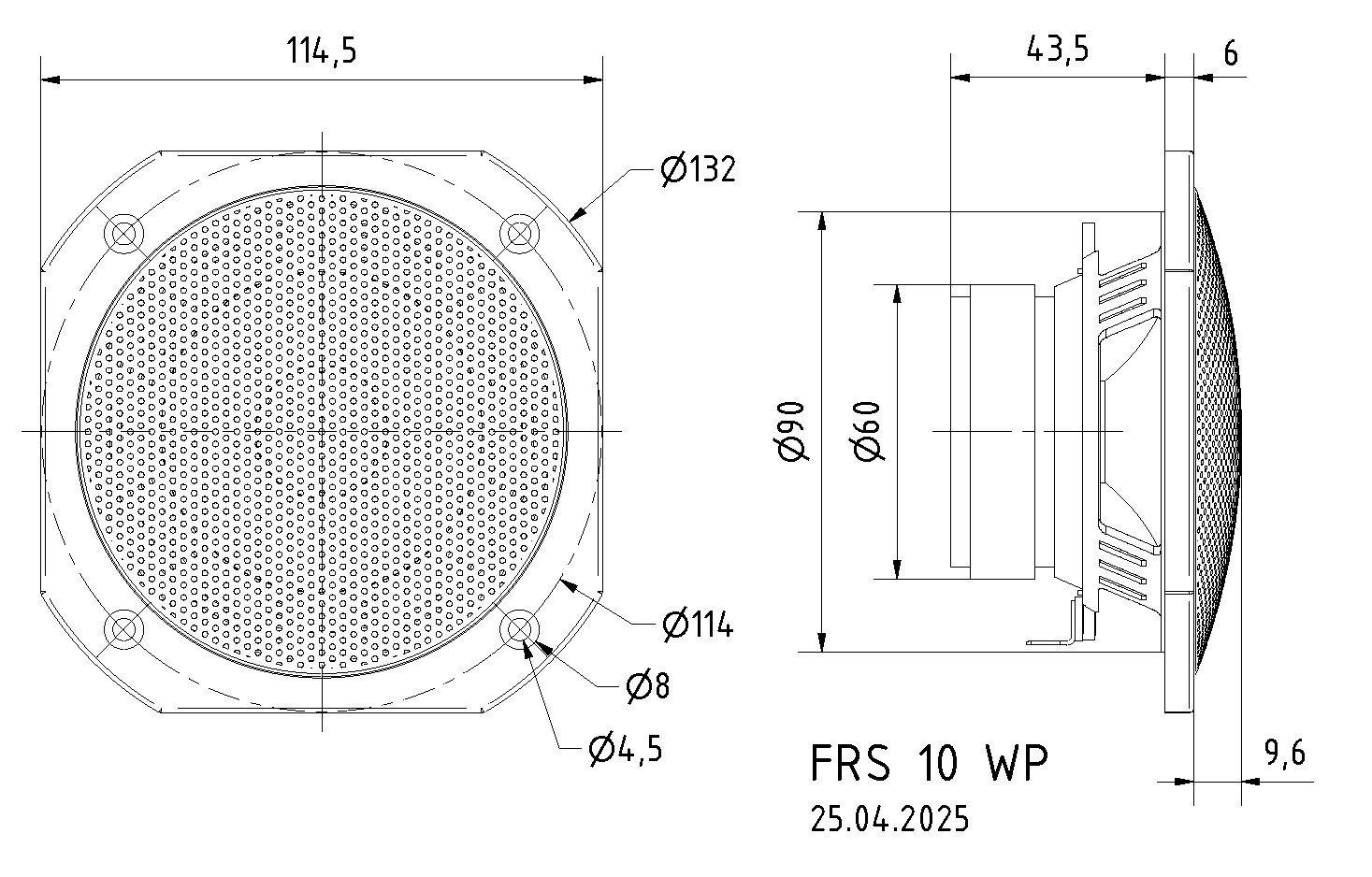

Dimensions and drawings
Installation and cabinet guidance
Use a sealed enclosure to provide the front-side IP65 protection. Seal the mounting joint and protect the rear from moisture; adhesive and a front cover may be needed to complete the seal. Match the fixing positions before drilling. Optional gasket: 2170.
