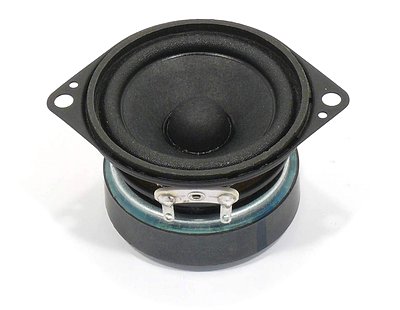

Visaton FRS 5 X 8 Ohm, 2 Inch, Full Range Miniature Speaker

Part number: 2235

A slim 5 cm full-range driver with a black basket and solder lugs for compact music and equipment-monitoring systems.

Nominal size
5 cm / 2 inch
Impedance
8 Ω
Rated power
5 W
Cut-out
46 mm
Sensitivity
86 dB (1 W/1 m)
Resonance
190 Hz
ex VAT
£14.34 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The FRS 5 X has a slim black basket with two fixing lugs, making it useful in narrow columns and small equipment panels. It uses solder connections; the FRS 5 XTS provides blade terminals and a foam gasket.

Typical applications

  • Narrow speaker columns
  • Equipment monitoring
  • Small music systems
  • Model projects
Full specifications
FRS 5 X · 8 Ω
Rated power5 W
Maximum power8 W
Nominal impedance8 Ω
Frequency response (−10 dB)120–20000 Hz
Mean sound pressure level86 dB (1 W/1 m)
Opening angle (-6 dB)180°/4000 Hz
Excursion limit± 2 mm
Resonance frequency fs190 Hz
Height of front pole-plate2.5 mm
Voice coil diameter14 mm
Height of winding3 mm
Cut-out46 mm
Net weight0.14 kg
D.C. resistance Rdc7.7 Ω
Mechanical Q factor Qms3.49
Electrical Q factor Qes0.88
Total Q factor Qts0.7
Equivalent volume Vas0.23 l
Effective piston area Sd12.5 cm²
Dynamically moved mass Mms0.7 g
Force factor Bxl2.67 Tm
TerminalsSolder lugs
Temperature range–25 to 70 °C
Dimensions and drawings

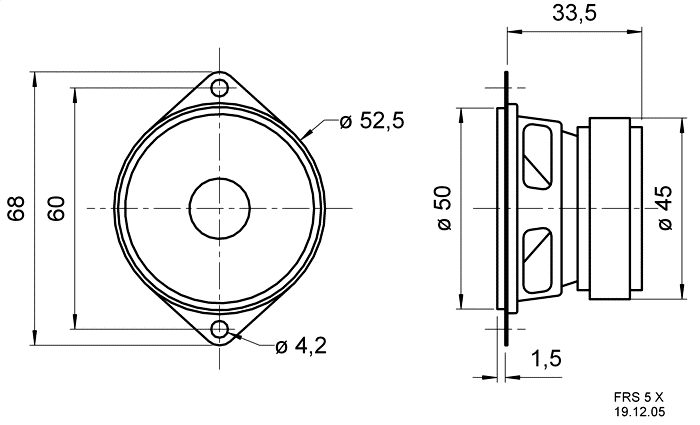

FRS 5 X · 8 Ω · part 2235 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for a 46 mm panel opening and two fixing lugs. Provide access to the solder connections and support the wiring so it does not pull on the terminals.

Use an amplifier suitable for the 8 Ω load and observe terminal polarity. For a 100 V line system, connect through a suitable line transformer; do not connect the driver directly to the line.
