Visaton FRS 7 W 8 Ohm, 2.5 Inch, Full Range Speaker

FRS 7 W · 8 Ω · part 2017 — Product photo

Product photo · Enlarge image

FRS 7 W · 8 Ω · part 2017 — Product photoProduct photo FRS 7 W · 8 Ω · part 2017 — Label and terminalsLabel and terminals FRS 7 W · 8 Ω · part 2017 — Dimension drawingDimension drawing FRS 7 W · 8 Ω · part 2017 — Response and impedanceResponse and impedance FRS 7 W · 8 Ω · part 2017 — Directivity patternDirectivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

FRS 7 W · 8 Ω · part 2017 — Product photo

Product photo

Open original image
Part number: 2017

A compact full-range driver with a lower resonance than the standard FRS 7 for small music and monitoring systems.

Nominal size
6.5 cm / 2.5 inch
Impedance
8 Ω
Rated power
8 W
Cut-out
61 mm
Sensitivity
86 dB (1 W/1 m)
Resonance
160 Hz
ex VAT
£15.54 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The FRS 7 W combines a compact basket with a 160 Hz resonance frequency, lower than the standard FRS 7. It is suited to small music systems, monitoring speakers and electronic instruments.

Typical applications

  • Narrow speaker columns
  • Equipment monitoring
  • Electronic instruments
  • Model projects
Full specifications
FRS 7 W · 8 Ω
Rated power8 W
Maximum power15 W
Nominal impedance8 Ω
Frequency response (−10 dB)120–20000 Hz
Mean sound pressure level86 dB (1 W/1 m)
Opening angle (-6 dB)180°/4000 Hz
Excursion limit±2.5 mm
Resonance frequency fs160 Hz
Magnetic induction1.1 T
Magnetic flux120 µWb
Height of front pole-plate2.5 mm
Voice coil diameter14 mm
Height of winding4.5 mm
Cut-out61 mm
Net weight0.22 kg
D.C. resistance Rdc6.6 Ω
Mechanical Q factor Qms2.08
Electrical Q factor Qes0.91
Total Q factor Qts0.63
Equivalent volume Vas0.78 l
Effective piston area Sd22 cm²
Dynamically moved mass Mms0.9 g
Force factor Bxl2.5 Tm
Terminals2.8 x 0.5 mm (+)/2.8 x 0.5 mm (-)
Temperature range–25 to 70 °C

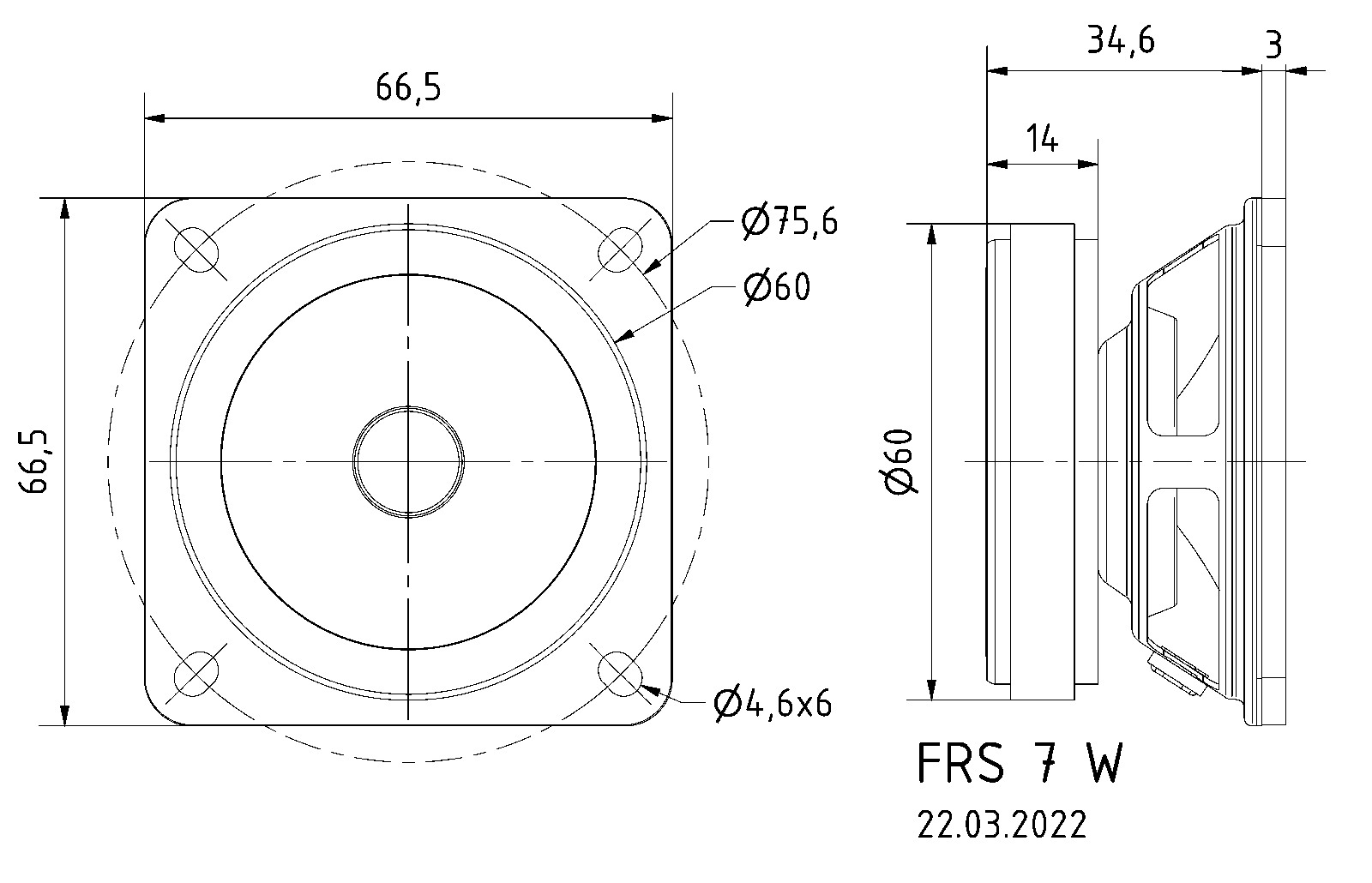

Dimensions and drawings
FRS 7 W · 8 Ω · part 2017 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for a 61 mm panel opening, 34.6 mm depth and additional space for the connections. Protect the rear and terminals from moisture. Optional grille: 2312.

Use an amplifier suitable for the 8 Ω load and observe terminal polarity. For a 100 V line system, connect through a suitable line transformer; do not connect the driver directly to the line.
