Visaton FRW 10 N 8 Ohm, 4 Inch, Full Range Speaker

FRW 10 N · 8 Ω · part 2032 — Product photo

Product photo · Enlarge image

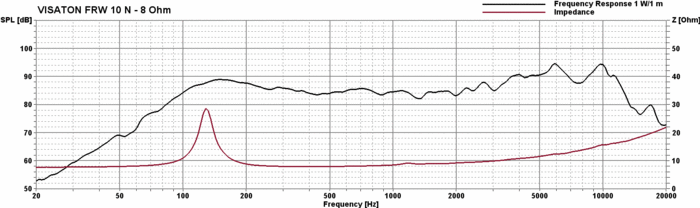

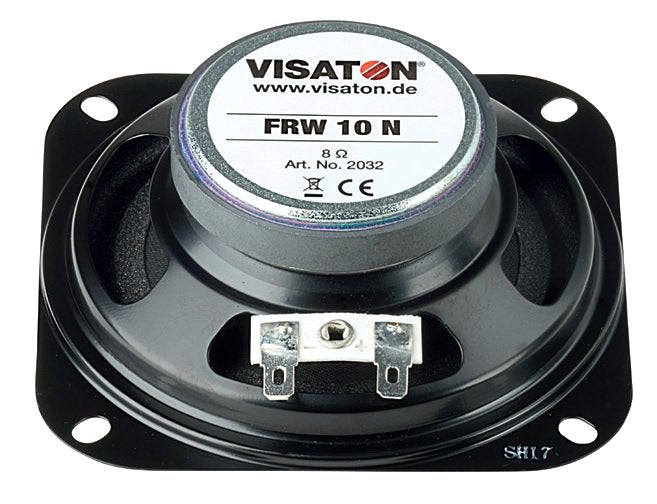

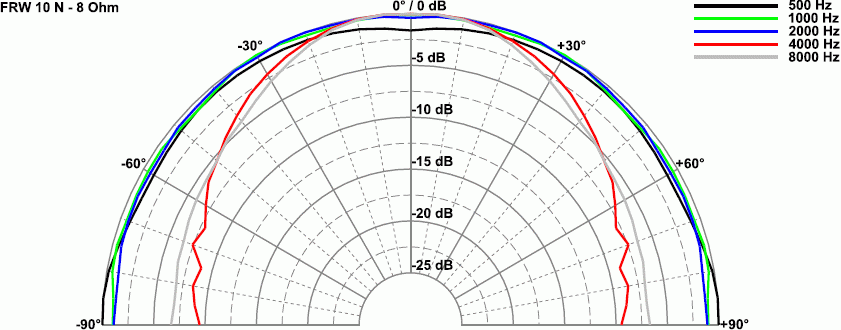

FRW 10 N · 8 Ω · part 2032 — Product photo Product photo FRW 10 N · 8 Ω · part 2032 — Rear view and connections Rear view and connections FRW 10 N · 8 Ω · part 2032 — Dimension drawing Dimension drawing FRW 10 N · 8 Ω · part 2032 — Response and impedance Response and impedance FRW 10 N · 8 Ω · part 2032 — Directivity pattern Directivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

FRW 10 N · 8 Ω · part 2032 — Product photo

Product photo

Open original image
Part number: 2032

A light 10 cm speaker for monitoring and built-in electronic audio.

Nominal size
10 cm / 4 inch
Impedance
8 Ω
Rated power
10 W
Weight
0.16 kg
Sensitivity
86 dB (1 W/1 m)
Resonance
120 Hz
ex VAT
£13.14 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The FRW 10 N provides speech and music reproduction for electronic equipment and compact sound systems. Its 160 g construction keeps added weight low, while the 120 Hz resonance and balanced response make it useful where a small monitoring speaker needs some lower-frequency reach. This 8 Ω version handles 10 W rated power.

Typical applications

  • Electronic equipment
  • Monitoring speakers
  • Built-in sound systems
Full specifications
FRW 10 N · 8 Ω
Rated power10 W
Maximum power20 W
Nominal impedance8 Ω
Frequency response (−10 dB)80–17000 Hz
Mean sound pressure level86 dB (1 W/1 m)
Resonance frequency fs120 Hz
Net weight0.16 kg
Terminals5.2 x 0.5 mm (+)/5.2 x 0.5 mm (-)
Temperature range-25 to 70 °C
Dimensions and drawings

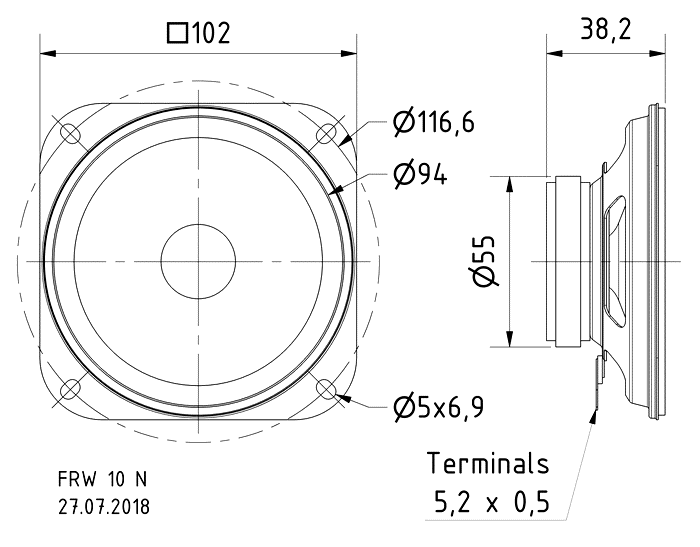

FRW 10 N · 8 Ω · part 2032 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow space for the 102 mm square frame and 38.2 mm depth shown in the drawing, plus the terminals and cable bends. Check the basket and fixing slots against the actual panel before machining; nominal speaker size is not the required cut-out.

Mount on a rigid panel with a continuous seal around the frame to prevent air leaks and rattles. Keep the cone and surround clear of the grille and internal parts.

Use an amplifier suitable for the 8 Ω load and follow the polarity marks. Check blade width and thickness before choosing connectors, insulate the connections and secure the wiring clear of the moving parts.

Test the driver in the intended enclosure before fixing the cabinet design. Keep the rear acoustic space clear and check low-frequency cone travel at the intended operating level; a small driver’s usable bass depends on the enclosure and required output.
