Visaton FRWS 4 ND 8 Ohm, 1.6 Inch, Full Range Speaker

FRWS 4 ND · 8 Ω · part 2207 — Product photo

Product photo · Enlarge image

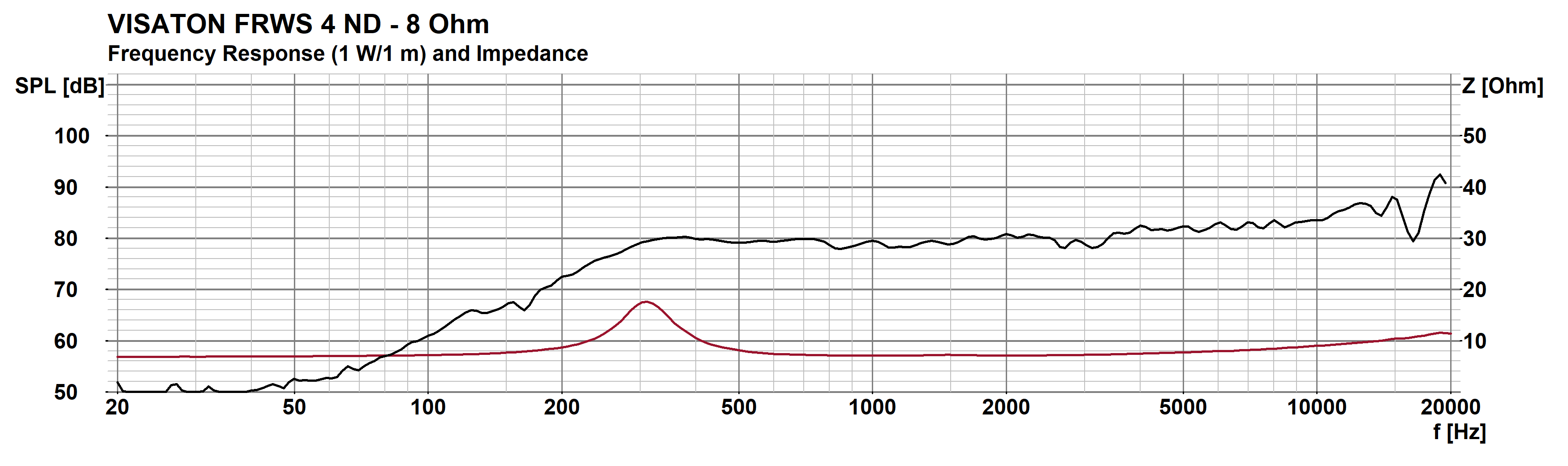

FRWS 4 ND · 8 Ω · part 2207 — Product photoProduct photo FRWS 4 ND · 8 Ω · part 2207 — Rear view and connectionsRear view and connections FRWS 4 ND · 8 Ω · part 2207 — Dimension drawingDimension drawing FRWS 4 ND · 8 Ω · part 2207 — Response and impedanceResponse and impedance FRWS 4 ND · 8 Ω · part 2207 — Directivity patternDirectivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

FRWS 4 ND · 8 Ω · part 2207 — Product photo

Product photo

Open original image
Part number: 2207

A miniature neodymium speaker for compact music and speech systems.

Nominal size
4 cm / 1.6 inch
Impedance
8 Ω
Rated power
2 W
Weight
0.028 kg
Sensitivity
78 dB (1 W/1 m)
Resonance
270 Hz
ex VAT
£15.54 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The FRWS 4 ND combines a coated paper cone, black metal basket and compact neodymium magnet. It suits miniature hi-fi speakers and built-in audio where space and weight are limited. The 8 Ω driver weighs 28 g, handles 2 W rated power and provides a broad response from a 4 cm format.

Typical applications

  • Miniature hi-fi speakers
  • Compact electronic audio
Full specifications
FRWS 4 ND · 8 Ω
Rated power2 W
Maximum power3 W
Nominal impedance8 Ω
Frequency response (−10 dB)150–20000 Hz
Mean sound pressure level78 dB (1 W/1 m)
Resonance frequency fs270 Hz
Net weight0.028 kg
TerminalsSolder lugs
Temperature range–25 to 70 °C
Dimensions and drawings
FRWS 4 ND · 8 Ω · part 2207 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for the 41 mm square frame, 32 mm fixing pitch and 21 mm depth shown in the drawing. Check the opening against the basket profile before cutting and leave access to the solder lugs.

Mount on a rigid panel with a continuous seal around the frame to prevent air leaks and rattles. Keep the cone and surround clear of the grille and internal parts.

Use an amplifier suitable for the 8 Ω load and follow the polarity marks. Solder without prolonged heating, insulate the joints and secure the wires so they cannot touch the cone or pull on the lugs.

Test the driver in the intended enclosure before fixing the cabinet design. Keep the rear acoustic space clear and check low-frequency cone travel at the intended operating level; a small driver’s usable bass depends on the enclosure and required output.
