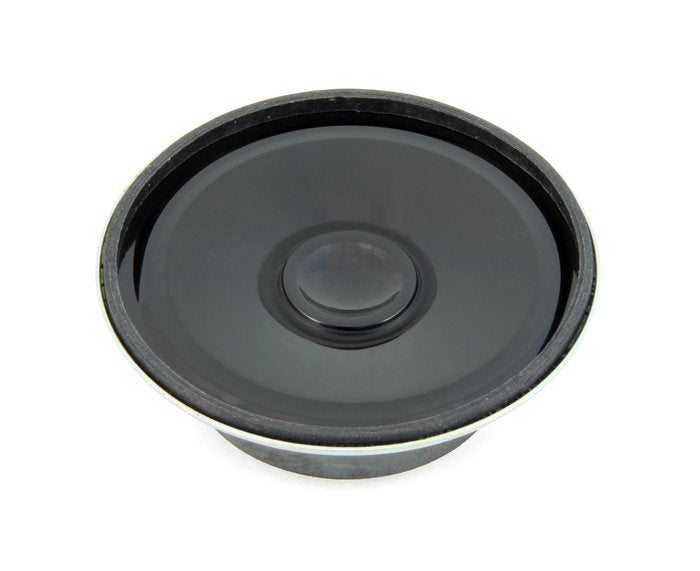

Visaton K 50 50 Ohm, 2 Inch, Miniature Speaker

Part number: 2899

A 5 cm miniature speaker with a Mylar diaphragm and metal basket for voice and signal output in machines.

Nominal size
5 cm / 2 inch
Impedance
50 Ω
Rated power
2 W
Cut-out
45 mm
Sensitivity
83 dB (1 W/1 m)
Resonance
500 Hz
ex VAT
£3.54 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The K 50 is a 5 cm miniature speaker with a Mylar diaphragm and a metal basket, made for voice and signal output in machines and equipment indoors and outdoors, and tested for cold operation to EN 60068-2-1 and EN 50155. This 50 Ω version handles 2 W rated power and weighs 50 g. Its IP65 front-side protection applies when it is built into a sealed enclosure.

Typical applications

  • Voice and signal output in machines
  • Indoor and outdoor equipment
  • Rail and transport equipment
Full specifications
K 50 · 50 Ω
Rated power2 W
Nominal impedance50 Ω
Frequency response (−10 dB)250–10000 Hz
Mean sound pressure level83 dB (1 W/1 m)
Opening angle (-6 dB)180°/4000 Hz
Excursion limit±0.5 mm
Resonance frequency fs500 Hz
Height of front pole-plate2 mm
Voice coil diameter14 mm
Height of winding3 mm
Cut-out45 mm
Net weight0.05 kg
TerminalsSolder lugs
Protective systemIP65 — front side in a sealed enclosure
Temperature range−40 to 70 °C
Dimensions and drawings
K 50 · 50 Ω · part 2899 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for a 45 mm opening and the 50 mm basket, with about 17 mm behind the panel for the magnet and solder lugs. Seal the rim to the panel so the front-side protection is effective; bonding and a front cover or grille may be needed.

Solder to the lugs and observe polarity. Match the 50 Ω impedance to the output stage and keep the drive within the 2 W rating.
