Visaton K 50 SQ 8 Ohm, 2 Inch, Miniature Speaker
Product photo · Enlarge image
Product photo

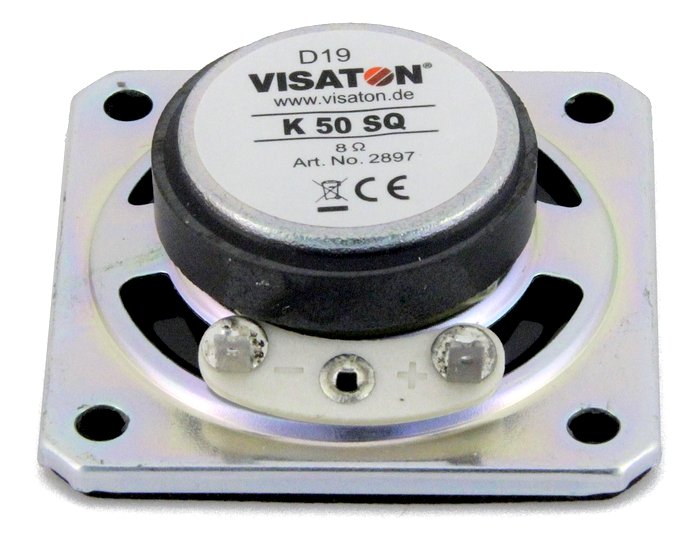

Rear view and connections
Dimension drawing
Response and impedance
Directivity pattern (K 50 measurement)
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The K 50 SQ is a 5 cm miniature speaker with a Mylar diaphragm in a square metal basket with four mounting holes and a foam gasket, made for voice and signal output in machines and equipment indoors and outdoors. The 8 Ω unit handles 2 W rated power and has 2.8 x 0.5 mm contact pins. Its IP65 front-side protection applies when it is built into a sealed enclosure.
Typical applications
- Voice and signal output in machines
- Indoor and outdoor equipment
- Rail and transport equipment
Full specifications
| Rated power | 2 W |
|---|---|
| Nominal impedance | 8 Ω |
| Frequency response (−10 dB) | 250–10000 Hz |
| Mean sound pressure level | 83 dB (1 W/1 m) |
| Opening angle (-6 dB) | 180°/4000 Hz |
| Excursion limit | ±1 mm |
| Resonance frequency fs | 480 Hz |
| Height of front pole-plate | 2 mm |
| Voice coil diameter | 14 mm |
| Height of winding | 3 mm |
| Cut-out | 45 mm |
| Net weight | 0.05 kg |
| D.C. resistance Rdc | 7.3 Ω |
| Mechanical Q factor Qms | 6.42 |
| Electrical Q factor Qes | 7.32 |
| Total Q factor Qts | 3.42 |
| Equivalent volume Vas | 0.06 l |
| Effective piston area Sd | 12.5 cm² |
| Dynamically moved mass Mms | 0.4 g |
| Force factor Bxl | 1.12 T m |
| Terminals | 2.8 x 0.5 mm (+)/2.8 x 0.5 mm (-) |
| Protective system | IP65 — front side in a sealed enclosure |
| Temperature range | −40 to 80 °C |
Dimensions and drawings

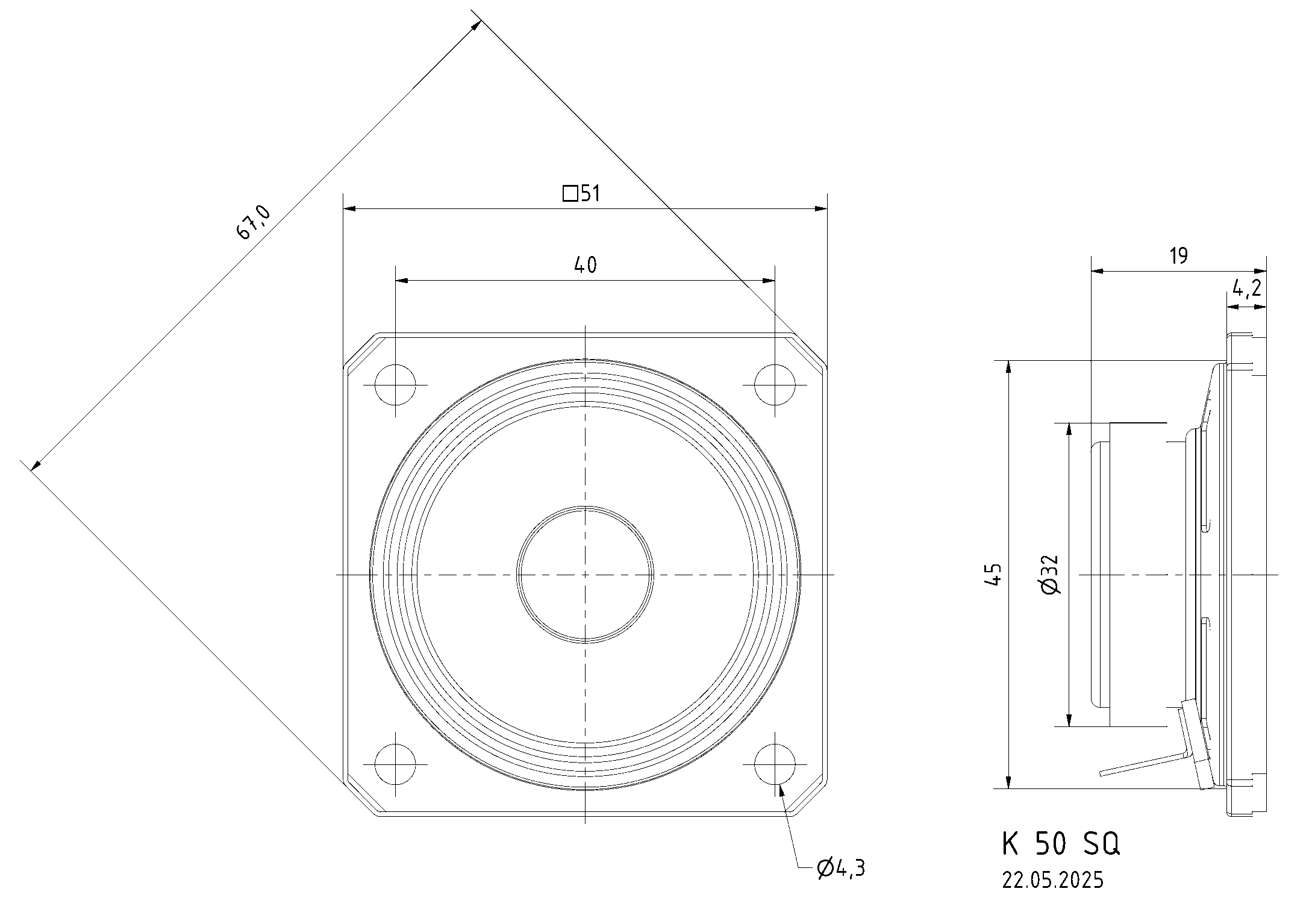

Dimension drawing · Open original image
Installation and cabinet guidance
Allow for a 45 mm opening and the 51 mm square frame, with four 4.3 mm fixing holes on a 40 mm pitch. Leave about 20 mm behind the panel for the magnet and contact pins.
Compress the foam gasket evenly against a flat panel so the front-side protection is effective; bonding and a front cover or grille may be needed.
Use connectors that fit the 2.8 x 0.5 mm pins, observe polarity and keep the drive within the 2 W rating from an output stage suitable for the 8 Ω load.
