Visaton KL 33 EN 100 V/4 Ohm, Spherical Speaker (White)

Part number: 50344

33 cm spherical loudspeaker. Equipped with one 17 cm bass/midrange and four midrange/highrange drivers which have a good directivity pattern at off-axis angles and therefore provide a uniform and pleasant sound quality.

Rated power
50 W
Maximum power
70 W
Nominal impedance Z
4 Ω
Frequency response
70–18000 Hz
Mean sound pressure level
86 dB (1 W/1 m)
Transformer matching
12/6/3/1.5 W
ex VAT
£507.54 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

33 cm spherical loudspeaker. Equipped with one 17 cm bass/midrange and four midrange/highrange drivers which have a good directivity pattern at off-axis angles and therefore provide a uniform and pleasant sound quality. The KL 33 EN can be connected to a 100 V network or a normal amplifier (4 Ω).

Typical applications

  • Commercial audio systems
  • Speech and programme reproduction
  • Fixed installations using the stated 100 V or low-impedance connection
Full specifications
KL 33 EN 100 V/4 Ohm, Spherical Speaker (White)
Rated power50 W
Maximum power70 W
Nominal impedance Z4 Ω

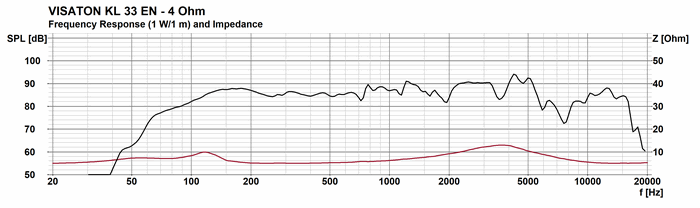

Frequency response70–18000 Hz
Mean sound pressure level86 dB (1 W/1 m)

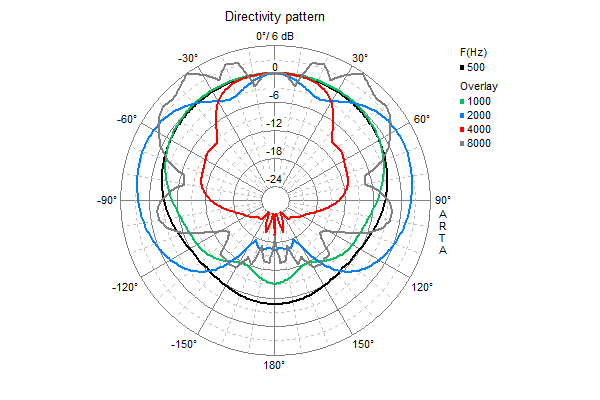

Opening angle (-6 dB)73°/4000 Hz
Net weight4.6 kg
Transformer matching12/6/3/1.5 W
Max. sound pressure level97 dB (12 W/1 m)
Colourwhite
Length of cable3 m
Protective systemIP 44
Dimensions and drawings

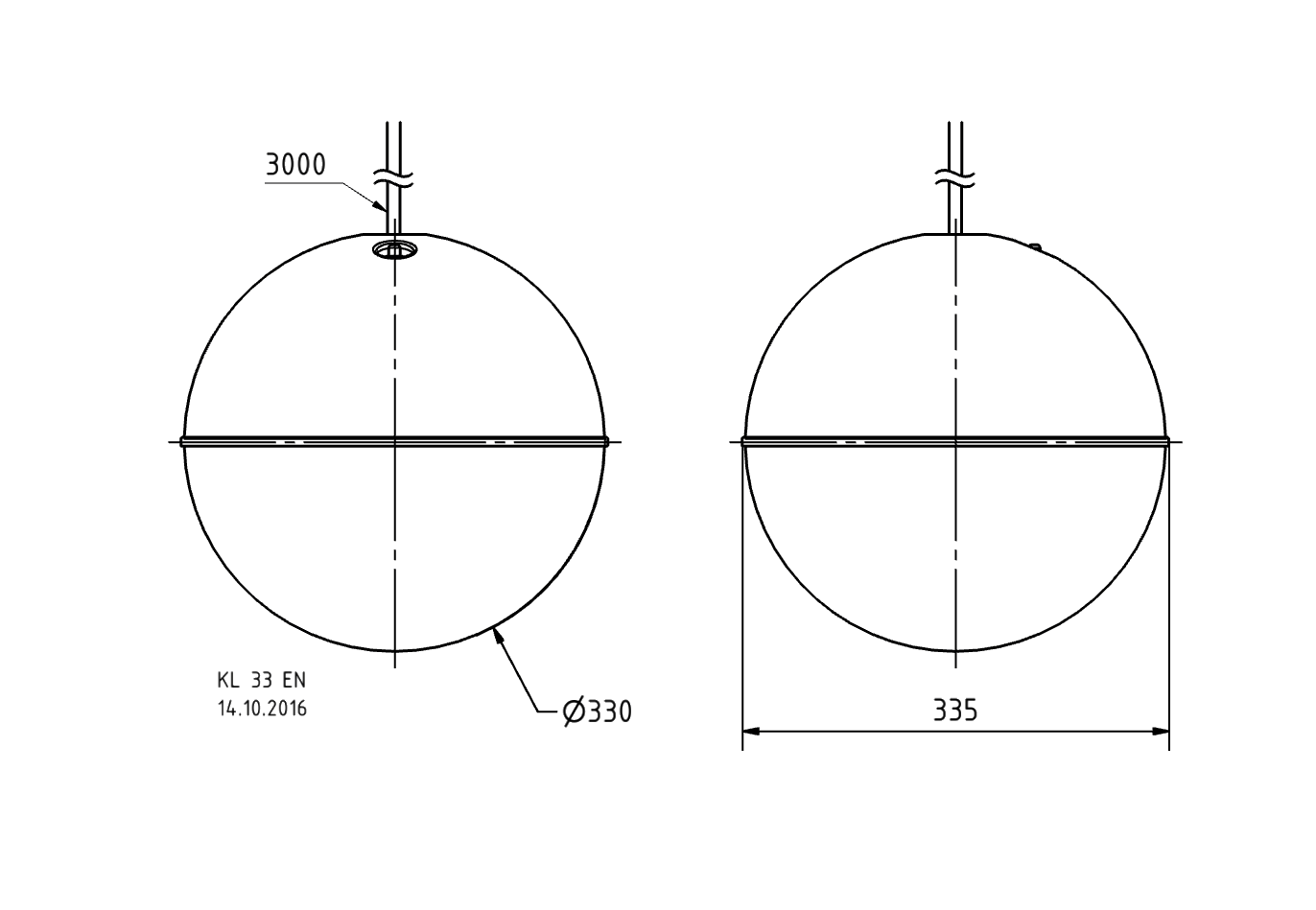

Visaton KL 33 EN - 100 V — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Isolate the 100 V line before wiring and select the transformer tap for the required local level.

Keep the total selected tap load within the amplifier's rated 100 V output, including design headroom.

Use the manufacturer drawing for fixing and clearance; secure the cable and preserve any stated environmental protection at the mounting surface.
