Visaton PL 8 RV 4 Ohm, 3.3 Inch, Flush Mount Speaker

PL 8 RV · 4 Ω · part 4480 — Product photo

Product photo · Enlarge image

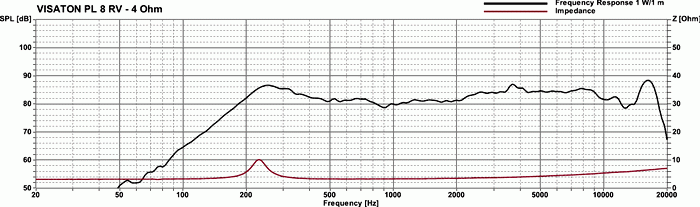

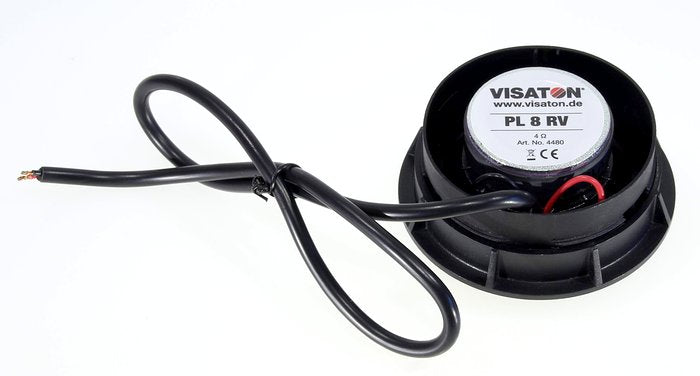

PL 8 RV · 4 Ω · part 4480 — Product photo Product photo PL 8 RV · 4 Ω · part 4480 — Rear view and connections Rear view and connections PL 8 RV · 4 Ω · part 4480 — Dimension drawing Dimension drawing PL 8 RV · 4 Ω · part 4480 — Response and impedance Response and impedance

Product photographs and manufacturer drawings. Images are not to scale.

PL 8 RV · 4 Ω · part 4480 — Product photo

Product photo

Open original image

Quantity discounts

Part number: 4480

An open-backed flush-mount speaker with a threaded fixing ring for vehicle panels and intercoms.

Type
Flush-mount speaker
Impedance
4 Ω
Rated power
10 W
Cut-out
72.5 mm
Face / finish
Black
Mean SPL
84 dB (1 W/1 m)
£23.95 Business price, ex VAT £28.74 inc VAT at 20%
Maximum quantity available reached.

Description

The PL 8 RV combines an open-backed driver with a threaded mounting ring for fitting into dashboards, trims and equipment panels. Its broad response supports clear speech in special vehicles and intercoms. This black 4 Ω model handles 10 W and comes with a 0.5 m cable.

Typical applications

  • Special vehicles
  • Intercoms
  • Equipment panels
Full specifications
PL 8 RV · 4 Ω
Rated power10 W
Maximum power20 W
Nominal impedance4 Ω
Frequency response (−10 dB)140–19000 Hz
Mean sound pressure level84 dB (1 W/1 m)
Net weight0.2 kg
ColourBlack
Length of cable0.5 m
Cut-out diameter72.5 mm
Temperature range–25 to 70 °C
Front diameter86.2 mm
Depth shown in drawing37 mm
Front projection shown4.5 mm
Dimensions and drawings

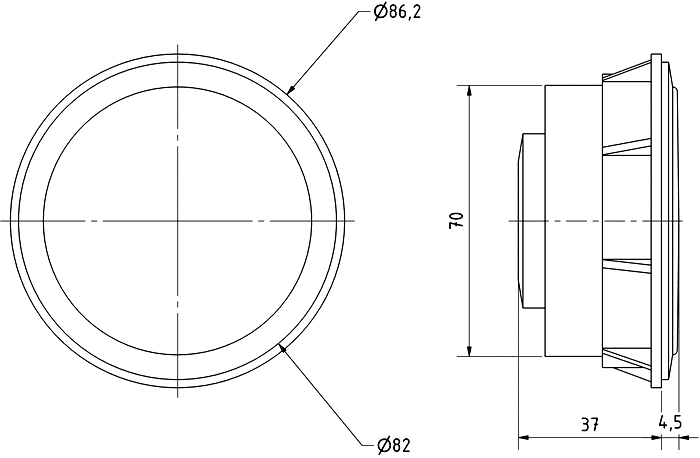

PL 8 RV · 4 Ω · part 4480 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Prepare a 72.5 mm circular opening. The front is 86.2 mm in diameter and the drawing shows 37 mm behind the front mounting face. Fit the speaker through the opening and secure it with its threaded ring. Check the thread engagement against the panel before fitting. Leave room for the cable behind it.

Connect the supplied 0.5 m cable to an amplifier suitable for 4 Ω, observing the polarity markings. Keep the cable supported and clear of moving trim or door parts. The rated power is 10 W.

The rear of the speaker is open, so provide space behind the driver and keep surrounding parts clear of it. The matching optional spacer ring is DR PL 8 RV, part 4482; it is a separate accessory.
