Visaton R 10 S-TR 100 V, 4 Inch, Full Range Speaker

R 10 S-TR · 100 V · part 2039 — Product photo

Product photo · Enlarge image

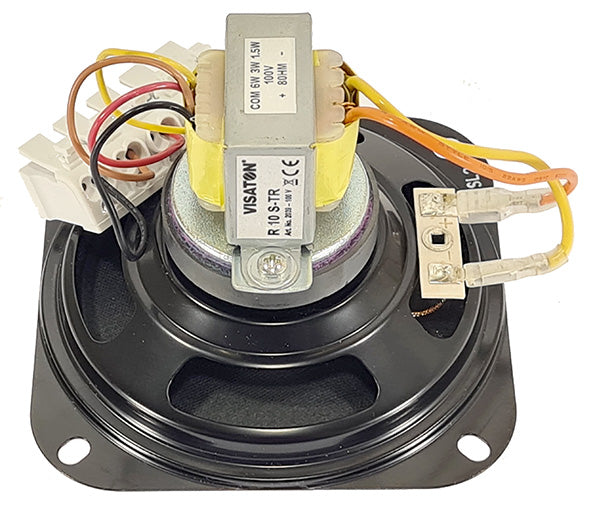

R 10 S-TR · 100 V · part 2039 — Product photoProduct photo R 10 S-TR · 100 V · part 2039 — Rear view and connectionsRear view and connections R 10 S-TR · 100 V · part 2039 — Dimension drawingDimension drawing

Product photographs and manufacturer drawings. Images are not to scale.

R 10 S-TR · 100 V · part 2039 — Product photo

Product photo

Open original image
Part number: 2039

A 10 cm full-range driver with a 100 V transformer for distributed speech systems.

Type
Full-range with transformer
Connection
100 V
Power taps
6 / 3 / 1.5 W
Frequency range
100–13000 Hz
Mean SPL
90 dB (1 W/1 m)
Overall depth
71 mm
ex VAT
£46.74 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The R 10 S-TR combines a full-range cone with a transformer and a five-pin spring terminal. It provides a compact mounting format for 100 V speech systems, with a dedicated earth connection from the transformer to the terminal. The manufacturer lists 6 W, 3 W and 1.5 W transformer taps.

Typical applications

  • Distributed announcements in public interiors
  • Passenger-information speaker installations
Full specifications
R 10 S-TR · 100 V
Frequency response (−10 dB)100-13000 Hz
Mean sound pressure level90 dB (1 W/1 m)
Voice coil diameter15 mm
Cutout diameter93 mm
Net weight0.315 kg
Transformer matching6 W/3 W/1.5 W
Max. sound pressure level98 dB (6 W/1 m)
ConnectionsSpring terminals
Temperature range-40 to 70 °C
Frame width / height102 × 102 mm
Overall depth (drawing)71 mm
Dimensions and drawings

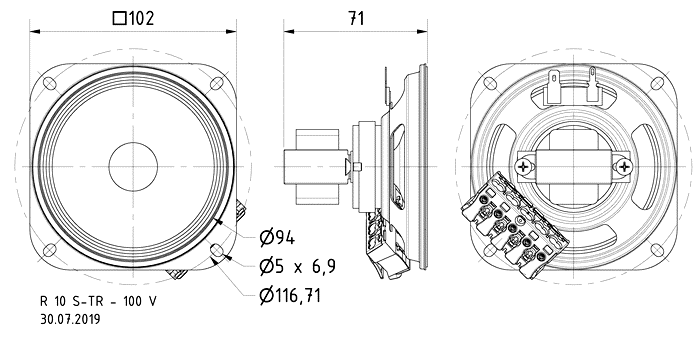

R 10 S-TR · 100 V · part 2039 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Check the 93 mm cutout, 102 × 102 mm frame and 71 mm overall depth. Allow space for the rear transformer and five-pin terminal when positioning the speaker.

The current pin assignment gives black COM, brown 6 W, red 3 W and white earth. It does not identify the 1.5 W tap by colour: confirm its marked terminal on the supplied unit before using that setting. White is an earth connection, not a power tap.

Include the chosen tap in the 100 V amplifier load calculation. Protect and strain-relieve the wiring; never connect through an unmarked terminal.

No IP rating is stated for this version. Protect the rear transformer and terminals within the completed installation.
