Visaton R 10 SC 100 V, 4 Inch, Full Range Speaker

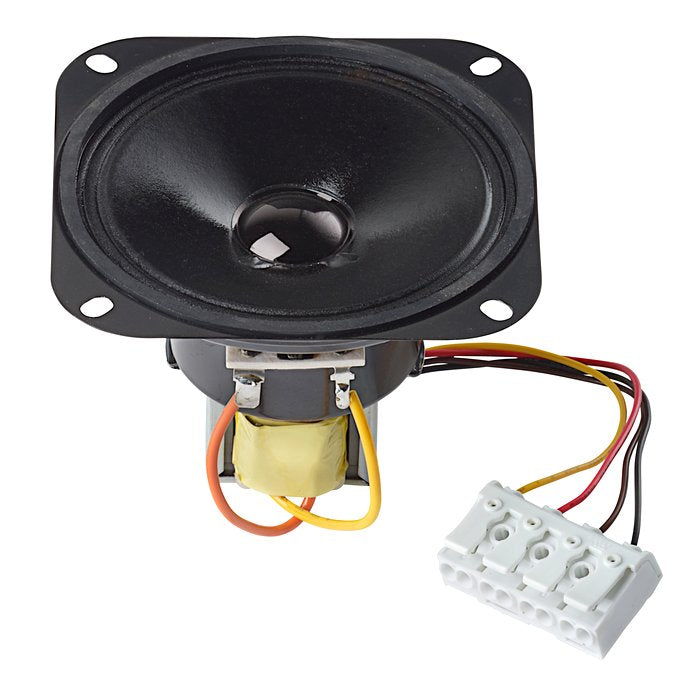

R 10 SC · 100 V · part 2045 — Product photo

Product photo · Enlarge image

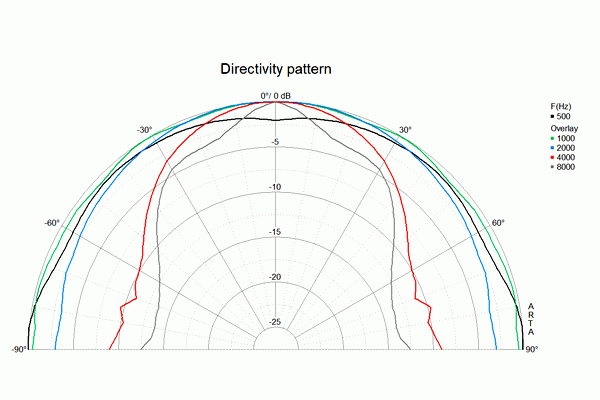

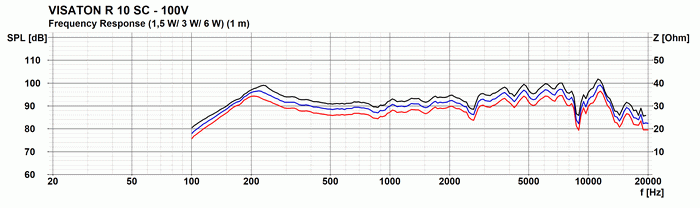

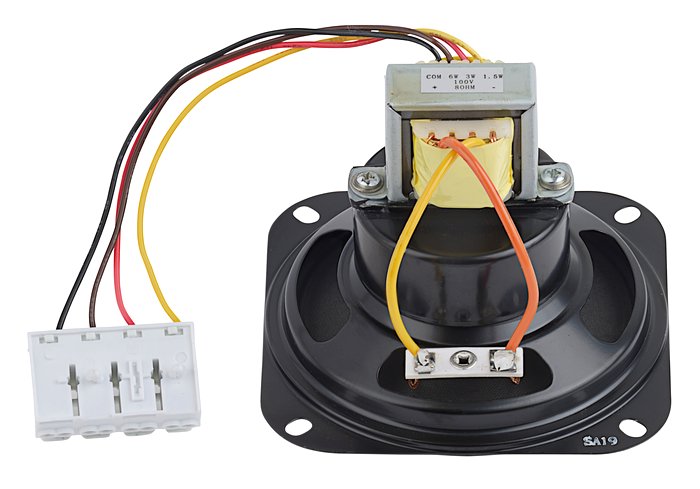

R 10 SC · 100 V · part 2045 — Product photo Product photo R 10 SC · 100 V · part 2045 — Rear view and connections Rear view and connections R 10 SC · 100 V · part 2045 — Reference drawing · see current datasheet for fitting Reference drawing · see current datasheet for fitting R 10 SC · 100 V · part 2045 — Frequency response · 1.5 / 3 / 6 W taps at 1 m Frequency response · 1.5 / 3 / 6 W taps at 1 m R 10 SC · 100 V · part 2045 — Directivity pattern Directivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

R 10 SC · 100 V · part 2045 — Product photo

Product photo

Open original image
Part number: 2045

A 10 cm full-range driver with a 100 V transformer for distributed speech systems.

Type
Full-range, magnetically shielded
Connection
100 V
Power taps
6 / 3 / 1.5 W
Frequency range
100–13000 Hz
Mean SPL
90 dB (1 W/1 m)
Overall depth
78.5 mm
ex VAT
£49.14 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The R 10 SC adds magnetic shielding, a water-repellent cone and rubber gasket to a compact driver for public transport and other public interiors. Its 150 mm cable ends in a spring-terminal connector that can be secured using catch pins. The manufacturer lists 6 W, 3 W and 1.5 W transformer taps.

Typical applications

  • Distributed announcements in public interiors
  • Passenger-information speaker installations
Full specifications
R 10 SC · 100 V
Frequency response (−10 dB)100-13000 Hz
Mean sound pressure level90 dB (1 W/1 m)
Opening angle (-6 dB)81°/4000 Hz
Net weight0.397 kg
Transformer matching6 W/3 W/1.5 W
Max. sound pressure level98 dB (6 W/1 m)
ColourBlack
ConnectionsSpring terminal
Length of cable0.15 m
Protective systemIP64 / IP67 front only in a sealed enclosure; adhesive and grille may be needed
Temperature range−40 to 70 °C
Frame width / height102 × 102 mm
Overall depth (drawing)78.5 mm
Dimensions and drawings

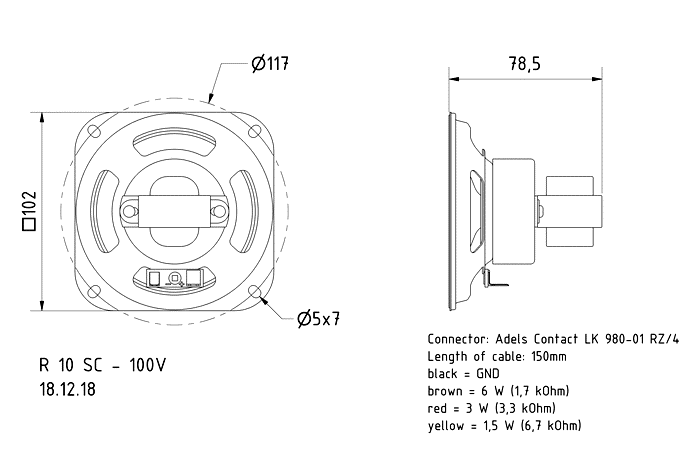

R 10 SC · 100 V · part 2045 — Reference drawing · see current datasheet for fitting

Reference drawing · see current datasheet for fitting · Open original image

Installation and cabinet guidance

Check the 102 × 102 mm frame and 78.5 mm overall depth. Use the revised drawing in the datasheet for the mounting holes, allowing space for the transformer, 150 mm cable and connector.

With the amplifier off, connect the line common to black, and select brown for 6 W, red for 3 W or yellow for 1.5 W. Insulate unused taps and secure the spring-terminal block.

Include the chosen tap in the 100 V amplifier load calculation. Protect and strain-relieve the wiring; never connect through an unmarked terminal.

The stated IP64/IP67 protection applies to the front in a sealed enclosure, potentially requiring adhesive and a protective grille. It does not make the exposed transformer, connector or complete open-backed assembly submersible.
