Visaton SC 13 8 Ohm, 5 Inch, Magnetically Shielded Full Range Speaker

SC 13 · 8 Ω · part 8013 — Product photo

Product photo · Enlarge image

SC 13 · 8 Ω · part 8013 — Product photo Product photo SC 13 · 8 Ω · part 8013 — Rear view and connections Rear view and connections SC 13 · 8 Ω · part 8013 — Dimension drawing Dimension drawing SC 13 · 8 Ω · part 8013 — Response and impedance Response and impedance SC 13 · 8 Ω · part 8013 — Directivity pattern Directivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

SC 13 · 8 Ω · part 8013 — Product photo

Product photo

Open original image
Part number: 8013

A magnetically shielded 13 cm full-range driver for multimedia and surround speakers, also usable as a low-midrange driver.

Nominal size
13 cm / 5 inch
Impedance
8 Ω
Rated power
40 W
Cut-out
113 mm
Sensitivity
90 dB (1 W/1 m)
Resonance
78 Hz
ex VAT
£37.14 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The SC 13 pairs a cellulose cone with a rubber surround and is magnetically shielded, so it can work close to a screen; its even response lets it run full-range or as the low-midrange of a shielded two-way alongside the SC 10 N tweeter. This 8 Ω version takes 40 W rated power, gives 90 dB (1 W/1 m) and resonates at 78 Hz.

Typical applications

  • Multimedia and computer speakers
  • Shielded two-way speakers for surround systems
  • Full-range and low-midrange use in multi-way systems
Full specifications
SC 13 · 8 Ω
Rated power40 W
Maximum power60 W
Nominal impedance8 Ω
Frequency response (−10 dB)fu–13000 Hz (fu: lower cut-off depends on the cabinet)
Mean sound pressure level90 dB (1 W/1 m)
Opening angle (-6 dB)58°/4000 Hz
Excursion limit±7.5 mm
Resonance frequency fs78 Hz
Magnetic induction1 T
Magnetic flux250 µWb
Height of front pole-plate4 mm
Voice coil diameter20 mm
Height of winding5.5 mm
Cut-out113 mm
Net weight0.62 kg
D.C. resistance Rdc7.2 Ω
Mechanical Q factor Qms2.95
Electrical Q factor Qes0.94
Total Q factor Qts0.71
Equivalent volume Vas7.4 l
Effective piston area Sd79 cm²
Dynamically moved mass Mms4.8 g
Force factor Bxl4.2 Tm
Inductance of the voice coil L0.7 mH
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Temperature range–25 to 70 °C
Dimensions and drawings

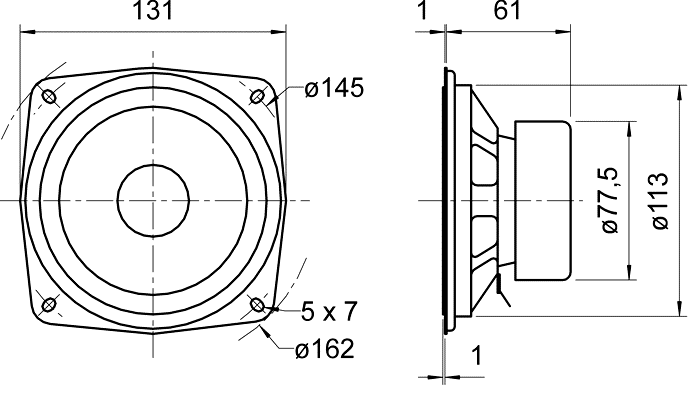

SC 13 · 8 Ω · part 8013 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow a 113 mm panel opening. The frame is 131 mm square, with 5 x 7 mm fixing slots at the corners on a 145 mm circle; mark them from the driver itself rather than assuming the spacing. Behind the panel allow about 61 mm for the 113 mm basket and the 77.5 mm magnet, plus room for the terminals and the wiring.

Mount it on a rigid baffle with a continuous seal between the frame and the panel, and tighten the fixings evenly and only enough to seal so the frame is not distorted. With ±7.5 mm of travel available, check that the cone and the surround stay clear of any grille and of internal bracing at full excursion. Connect to the 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors and observe polarity; the two blade widths identify it, and use an amplifier suitable for the 8 Ω load. The driver is magnetically shielded, so it can be used in multimedia and surround speakers close to a screen.

Visaton's published enclosure suggestions for this driver: 10 l closed (fc 103 Hz, Qtc 0.94); 20 l closed (fc 91 Hz, Qtc 0.83).
