Visaton SC 4.6 FL 8 Ohm, 1.6 x 2.4 Inch, Full Range Oval Speaker

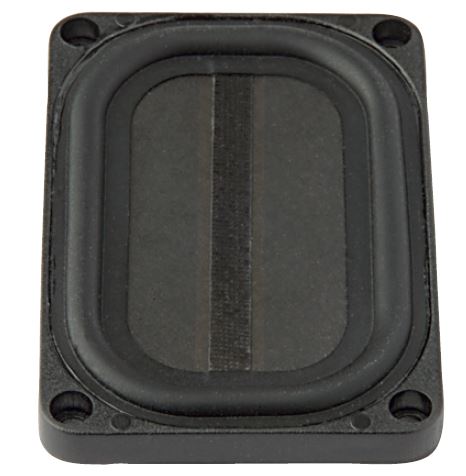

SC 4.6 FL · 8 Ω · part 8036 — Product photo

Product photo · Enlarge image

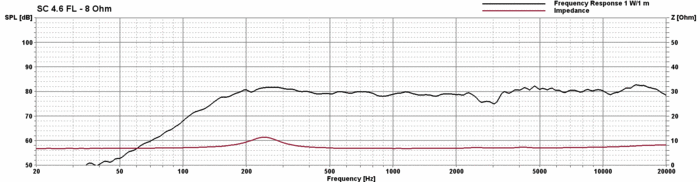

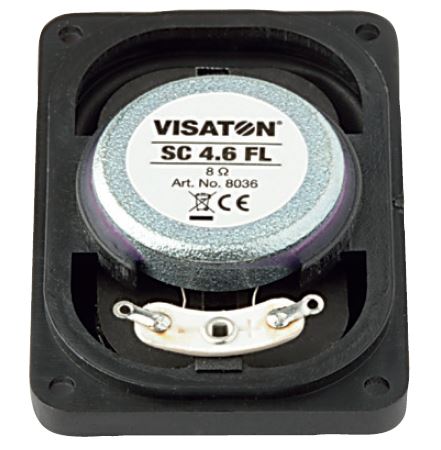

SC 4.6 FL · 8 Ω · part 8036 — Product photo Product photo SC 4.6 FL · 8 Ω · part 8036 — Rear view and connections Rear view and connections SC 4.6 FL · 8 Ω · part 8036 — Dimension drawing Dimension drawing SC 4.6 FL · 8 Ω · part 8036 — Response and impedance Response and impedance

Product photographs and manufacturer drawings. Images are not to scale.

SC 4.6 FL · 8 Ω · part 8036 — Product photo

Product photo

Open original image
Part number: 8036

A flat wooden-cone driver for compact hi-fi and built-in audio.

Nominal size
4 × 6 cm / 1.6 × 2.4 inch
Impedance
8 Ω
Rated power
4 W
Weight
34 g
Sensitivity
80 dB (1 W/1 m)
Resonance
200 Hz
ex VAT
£13.14 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The SC 4.6 FL uses a coated wooden cone, rigid plastic basket and neodymium magnet to keep depth and weight low. It suits miniature hi-fi speakers and compact equipment needing music as well as speech. The 8 Ω driver handles 4 W rated power and weighs 34 g.

Typical applications

  • Miniature hi-fi speakers
  • Compact built-in audio
Full specifications
SC 4.6 FL · 8 Ω
Rated power4 W
Maximum power5 W
Nominal impedance8 Ω
Frequency response (−10 dB)100–20000 Hz
Mean sound pressure level80 dB (1 W/1 m)
Resonance frequency fs200 Hz
Net weight34 g
TerminalsSolder lugs
Protective systemIP63 — front side in a sealed enclosure
Temperature range-25 to 70 °C
Dimensions and drawings

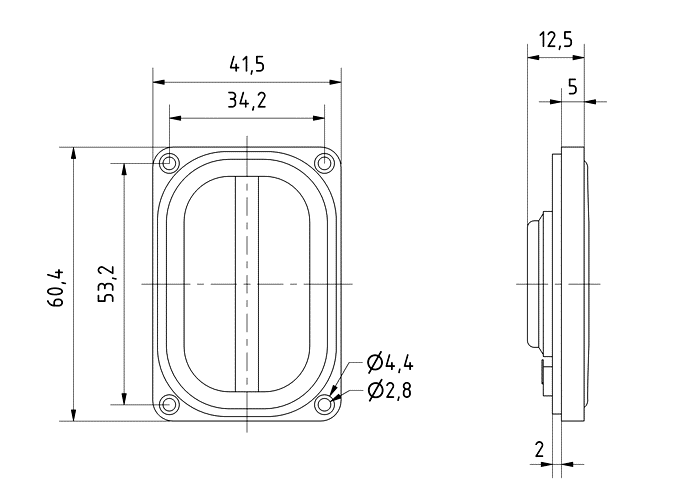

SC 4.6 FL · 8 Ω · part 8036 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for a 41.5 × 60.4 mm frame and 12.5 mm overall depth, plus the solder connections. Transfer the opening and fixing positions from the drawing to the panel, then check fit with the actual driver. Support the plastic frame evenly.

Seal the mounting joint into a sealed enclosure and protect the rear and terminals from moisture. IP63 applies to the front only; adhesive and a front grille may be needed to complete the seal.

Use an amplifier suitable for the 8 Ω load and follow the polarity marks. Solder without prolonged heating, insulate the joints and secure the wires so they cannot touch the cone or pull on the lugs.

Test the driver in the intended enclosure before fixing the cabinet design. Keep the rear acoustic space clear and check low-frequency cone travel at the intended operating level; a small driver’s usable bass depends on the enclosure and required output.
