Visaton SC 5.9 FLX 8 Ohm, 2 x 3.5 Inch, Full Range Oval Speaker

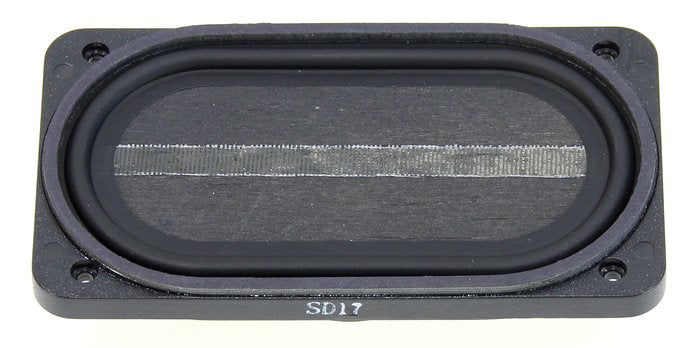

SC 5.9 FLX · 8 Ω · part 8053 — Product photo

Product photo · Enlarge image

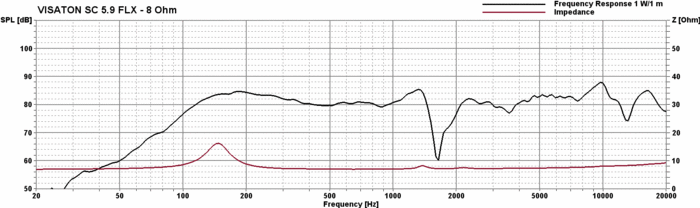

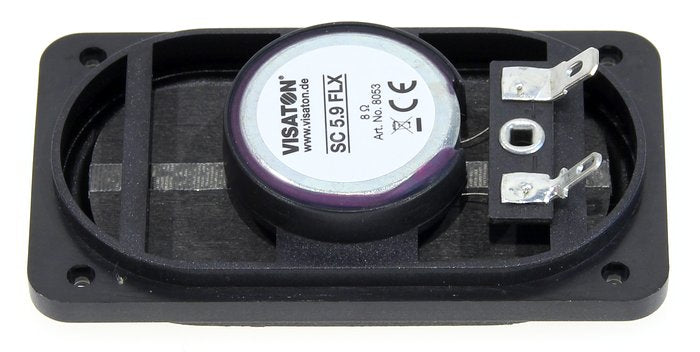

SC 5.9 FLX · 8 Ω · part 8053 — Product photoProduct photo SC 5.9 FLX · 8 Ω · part 8053 — Rear view and connectionsRear view and connections SC 5.9 FLX · 8 Ω · part 8053 — Dimension drawingDimension drawing SC 5.9 FLX · 8 Ω · part 8053 — Response and impedanceResponse and impedance

Product photographs and manufacturer drawings. Images are not to scale.

SC 5.9 FLX · 8 Ω · part 8053 — Product photo

Product photo

Open original image
Part number: 8053

A flat oval wooden-cone driver for miniature hi-fi and slim equipment.

Nominal size
5 × 9 cm / 2 × 3.5 inch
Impedance
8 Ω
Rated power
4 W
Weight
60 g
Sensitivity
82 dB (1 W/1 m)
Resonance
141 Hz
ex VAT
£16.74 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The SC 5.9 FLX combines a wooden cone and neodymium magnet in a shallow plastic basket. It is suited to compact hi-fi and built-in audio where a narrow speaker must reproduce both speech and music. The 8 Ω driver handles 4 W rated power, weighs 60 g and has a 141 Hz resonance.

Typical applications

  • Miniature hi-fi speakers
  • Slim multimedia equipment
Full specifications
SC 5.9 FLX · 8 Ω
Rated power4 W
Maximum power5 W
Nominal impedance8 Ω
Frequency response (−10 dB)85−20000 Hz
Mean sound pressure level82 dB (1 W/1 m)
Resonance frequency fs141 Hz
Magnetic induction1.15 T
Magnetic flux184 µWb
Height of front pole-plate2 mm
Voice coil diameter25.5 mm
Height of winding1.8 mm
Net weight60 g
D.C. resistance Rdc7.1 Ω
Mechanical Q factor Qms3.16
Electrical Q factor Qes2.55
Total Q factor Qts1.41
Equivalent volume Vas0.42 l
Effective piston area Sd26.8 cm²
Dynamically moved mass Mms3.0 g
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Protective systemIP63 — front side in a sealed enclosure
Dimensions and drawings

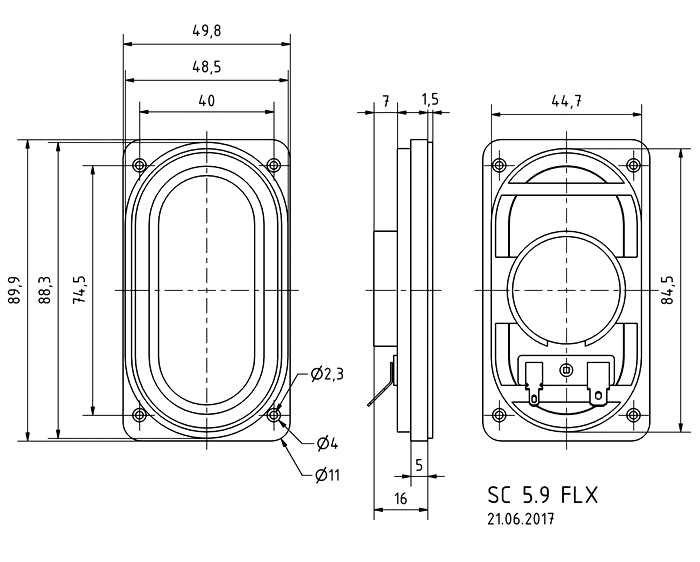

SC 5.9 FLX · 8 Ω · part 8053 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for a 49.8 × 89.9 mm frame and 16 mm depth, plus rear connector clearance. Check the shaped panel opening and fixing positions against the drawing and actual basket. Support the plastic frame evenly without overtightening.

Seal the mounting joint into a sealed enclosure and protect the rear and terminals from moisture. IP63 applies to the front only; adhesive and a front grille may be needed to complete the seal.

Use an amplifier suitable for the 8 Ω load and follow the polarity marks. Check blade width and thickness before choosing connectors, insulate the connections and secure the wiring clear of the moving parts.

Use this impedance version’s enclosure parameters when developing a cabinet, and test the response at the intended listening level. Allow for the volume occupied by the driver and keep damping material clear of the cone and terminals.
