Visaton SC 5.9 OM 4 Ohm, 2 x 3.5 Inch, Full Range Oval Speaker

SC 5.9 OM · 4 Ω · part 8002 — Product photo

Product photo · Enlarge image

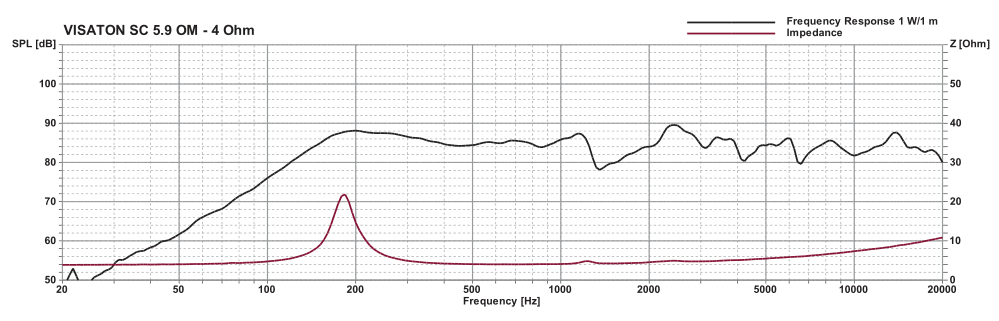

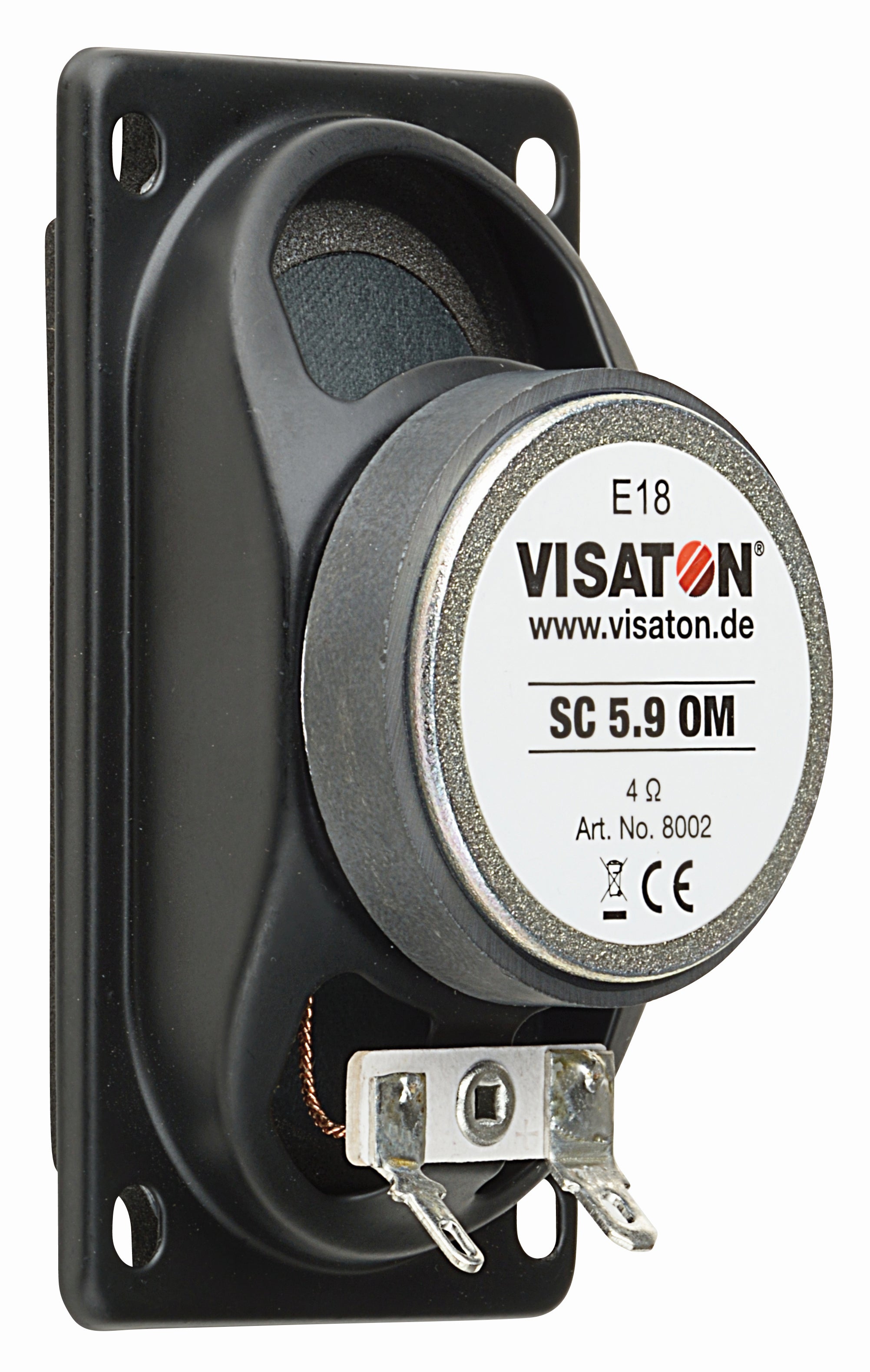

SC 5.9 OM · 4 Ω · part 8002 — Product photo Product photo SC 5.9 OM · 4 Ω · part 8002 — Rear view and connections Rear view and connections SC 5.9 OM · 4 Ω · part 8002 — Dimension drawing Dimension drawing SC 5.9 OM · 4 Ω · part 8002 — 4 Ω response and impedance 4 Ω response and impedance

Product photographs and manufacturer drawings. Images are not to scale.

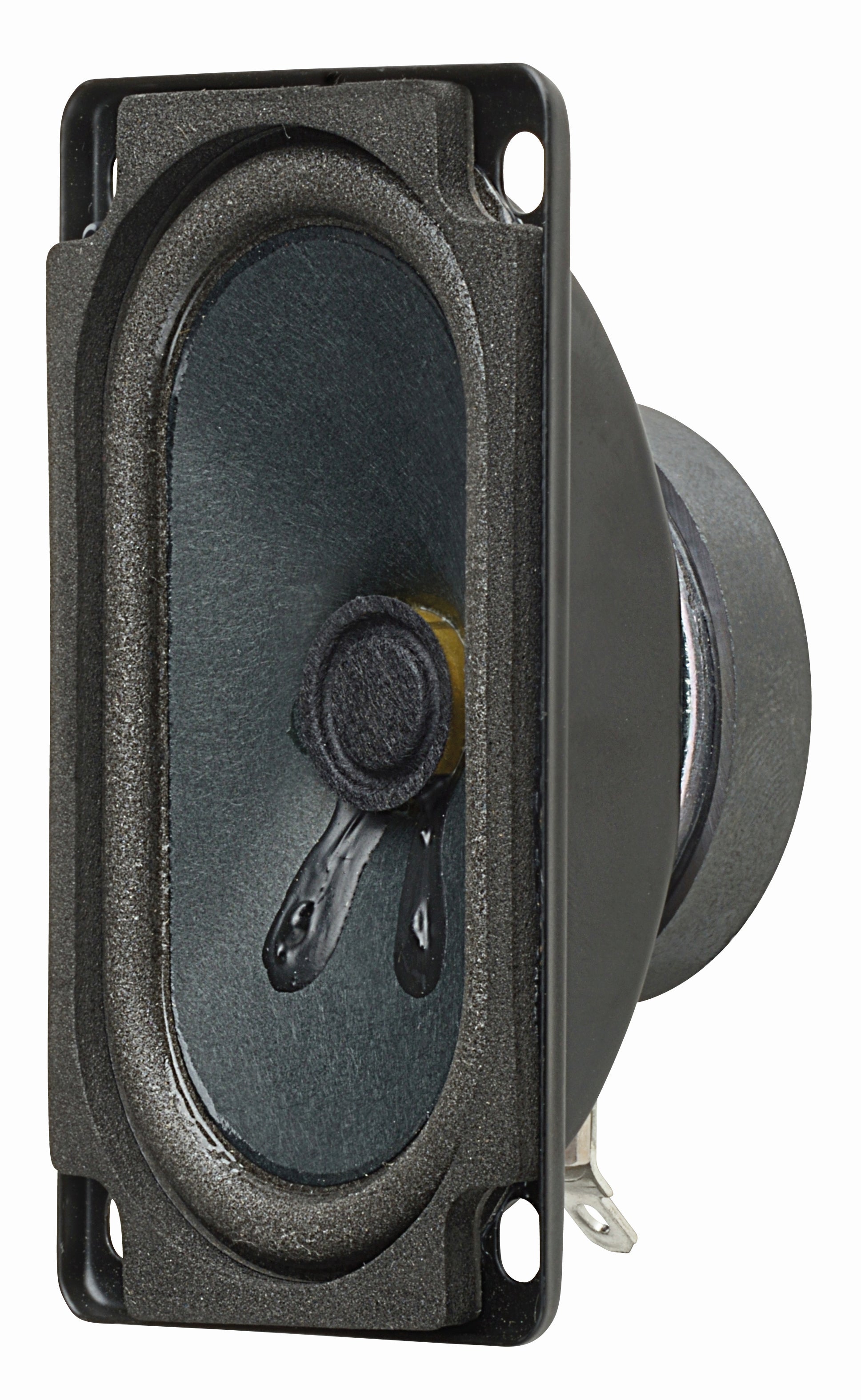

SC 5.9 OM · 4 Ω · part 8002 — Product photo

Product photo

Open original image
Part number: 8002

A compact oval driver for multimedia audio and compatible TV replacements.

Nominal size
5 × 9 cm / 2 × 3.5 inch
Impedance
4 Ω
Rated power
10 W
Cut-out
43 x 82 mm
Sensitivity
84 dB (1 W/1 m)
Resonance
170 Hz
ex VAT
£8.34 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The SC 5.9 OM combines a narrow oval frame with a strong magnetic drive for clear multimedia sound. It suits compact speaker systems and compatible internal flat-screen TV replacements. This 4 Ω version handles 10 W rated power and weighs 140 g, with a 43 × 82 mm oval mounting opening.

Typical applications

  • Multimedia systems
  • Compatible flat-screen TV replacement
  • Electronic monitoring
Full specifications
SC 5.9 OM · 4 Ω
Rated power10 W
Maximum power15 W
Nominal impedance4 Ω
Frequency response (−10 dB)90–20000 Hz
Mean sound pressure level84 dB (1 W/1 m)
Resonance frequency fs170 Hz
Height of front pole-plate3 mm
Voice coil diameter14 mm
Height of winding4 mm
Cut-out43 x 82 mm
Net weight0.14 kg
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Temperature range–25 to 70 °C
Magnetic shieldingNot specified for the OM version
Dimensions and drawings

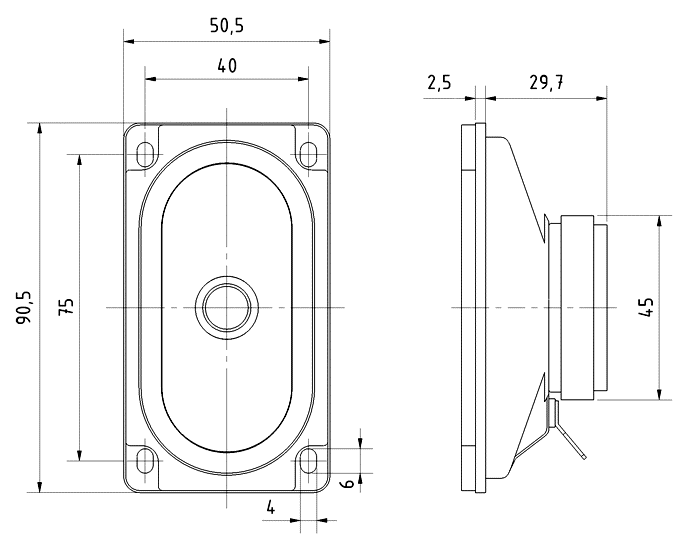

SC 5.9 OM · 4 Ω · part 8002 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for a 43 × 82 mm oval opening and 50.5 × 90.5 mm frame. Leave room for the magnet and terminals beyond the 29.7 mm body depth. Confirm the existing amplifier load and fixing pattern before fitting it as a replacement.

Mount on a rigid panel with a continuous seal around the frame to prevent air leaks and rattles. Keep the cone and surround clear of the grille and internal parts.

Use an amplifier suitable for the 4 Ω load and follow the polarity marks. Check blade width and thickness before choosing connectors, insulate the connections and secure the wiring clear of the moving parts.

Test the driver in the intended enclosure before fixing the cabinet design. Keep the rear acoustic space clear and check low-frequency cone travel at the intended operating level; a small driver’s usable bass depends on the enclosure and required output.
