Visaton SL 87 FE 8 Ohm, 3.4 Inch, Full Range Speaker

SL 87 FE · 8 Ω · part 2091 — Product photo

Product photo · Enlarge image

SL 87 FE · 8 Ω · part 2091 — Product photoProduct photo SL 87 FE · 8 Ω · part 2091 — Dimension drawingDimension drawing SL 87 FE · 8 Ω · part 2091 — Response and impedanceResponse and impedance SL 87 FE · 8 Ω · part 2091 — Directivity reference — SL 87 NDDirectivity reference — SL 87 ND

Product photographs and manufacturer drawings. Images are not to scale.

SL 87 FE · 8 Ω · part 2091 — Product photo

Product photo

Open original image
Part number: 2091

A ferrite-magnet driver for small hi-fi speakers and sound columns.

Nominal size
8.5 cm / 3.4 inch
Impedance
8 Ω
Rated power
10 W
Cut-out
80 mm
Sensitivity
87 dB (1 W/1 m)
Resonance
120 Hz
ex VAT
£20.34 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The SL 87 FE uses a large ferrite magnet, plastic cone and rubber surround for balanced music and speech reproduction. It handles 10 W rated power at 8 Ω, with an 87 dB sensitivity. Compared with the neodymium SL 87 ND, this version is heavier and deeper, with its own enclosure parameters and frequency response.

Typical applications

  • Small hi-fi systems
  • Speaker columns
Full specifications
SL 87 FE · 8 Ω
Rated power10 W
Maximum power15 W
Nominal impedance8 Ω
Frequency response (−10 dB)75–18000 Hz
Mean sound pressure level87 dB (1 W/1 m)
Resonance frequency fs120 Hz
Height of front pole-plate2.5 mm
Voice coil diameter20 mm
Height of winding6 mm
Cut-out80 mm
Net weight0.486 kg
D.C. resistance Rdc7.2 Ω
Mechanical Q factor Qms3.3
Electrical Q factor Qes0.82
Total Q factor Qts0.65
Equivalent volume Vas1.53 l
Effective piston area Sd37.3 cm²
Dynamically moved mass Mms2.4 g
Force factor Bxl3.95 Tm
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Protective systemIP64 — front side in a sealed enclosure
Temperature range−40 to 80 °C
Dimensions and drawings

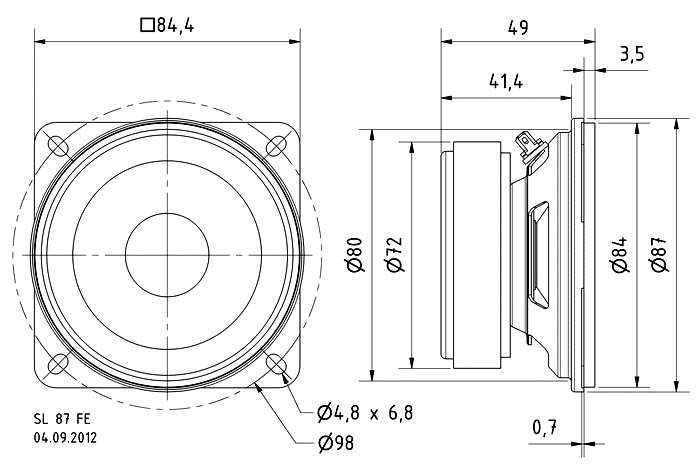

SL 87 FE · 8 Ω · part 2091 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for an 80 mm opening and 84.4 mm square frame. Leave room for the 49 mm overall depth, large rear magnet and projecting connectors. Support the heavier 486 g assembly on a rigid panel.

Seal the mounting joint into a sealed enclosure and protect the rear and terminals from moisture. IP64 applies to the front only; adhesive and a front grille may be needed to complete the seal.

Use an amplifier suitable for the 8 Ω load and follow the polarity marks. Check blade width and thickness before choosing connectors, insulate the connections and secure the wiring clear of the moving parts.

Use this impedance version’s enclosure parameters when developing a cabinet, and test the response at the intended listening level. Allow for the volume occupied by the driver and keep damping material clear of the cone and terminals.
