Visaton SL 87 ND 8 Ohm, 3.4 Inch, Full Range Speaker

SL 87 ND · 8 Ω · part 2086 — Product photo

Product photo · Enlarge image

SL 87 ND · 8 Ω · part 2086 — Product photoProduct photo SL 87 ND · 8 Ω · part 2086 — Dimension drawingDimension drawing SL 87 ND · 8 Ω · part 2086 — Response and impedanceResponse and impedance SL 87 ND · 8 Ω · part 2086 — Directivity patternDirectivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

SL 87 ND · 8 Ω · part 2086 — Product photo

Product photo

Open original image
Part number: 2086

A light neodymium driver for columns and small hi-fi speakers.

Nominal size
8.5 cm / 3.4 inch
Impedance
8 Ω
Rated power
10 W
Cut-out
80 mm
Sensitivity
88 dB (1 W/1 m)
Resonance
120 Hz
ex VAT
£44.34 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The SL 87 ND combines a plastic cone and rubber surround with a lightweight neodymium magnet. Its 88 dB sensitivity suits speaker columns and small hi-fi systems, while the 110 g assembly helps keep equipment weight down. The 8 Ω driver handles 10 W rated power and supports front-side IP64 protection when sealed into an enclosure.

Typical applications

  • Speaker columns
  • Small hi-fi systems
Full specifications
SL 87 ND · 8 Ω
Rated power10 W
Maximum power15 W
Nominal impedance8 Ω
Frequency response (−10 dB)88−20000 Hz
Mean sound pressure level88 dB (1 W/1 m)
Opening angle (-6 dB)132°/4000 Hz
Excursion limit± 4.3 mm
Resonance frequency fs120 Hz
Height of front pole-plate3 mm
Voice coil diameter20 mm
Height of winding5.8 mm
Cut-out80 mm
Net weight0.11 kg
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Protective systemIP64 — front side in a sealed enclosure
Temperature range−40 to 80 °C
Dimensions and drawings

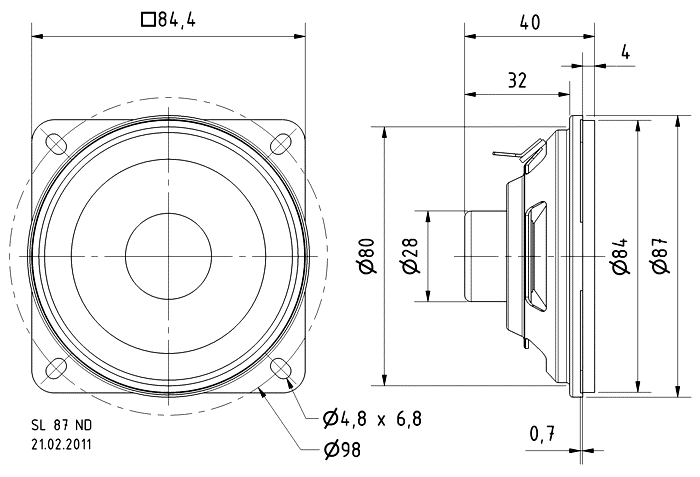

SL 87 ND · 8 Ω · part 2086 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for an 80 mm opening and 84.4 mm square frame. Leave room for the 40 mm overall depth and the projecting connectors; align the slotted fixing holes before drilling.

Seal the mounting joint into a sealed enclosure and protect the rear and terminals from moisture. IP64 applies to the front only; adhesive and a front grille may be needed to complete the seal.

Use an amplifier suitable for the 8 Ω load and follow the polarity marks. Check blade width and thickness before choosing connectors, insulate the connections and secure the wiring clear of the moving parts.

Test the driver in the intended enclosure before fixing the cabinet design. Keep the rear acoustic space clear and check low-frequency cone travel at the intended operating level; a small driver’s usable bass depends on the enclosure and required output.
