Visaton WL 16 EV 100 V, Wall-Mounted Speaker

Part number: 50370

Wall-mounted speaker with a white plastic cabinet and metal grille. Fitted with a full range driver and a 100 V transformer.

Nominal impedance Z
1.67 kΩ/3.33 kΩ/6.67 kΩ

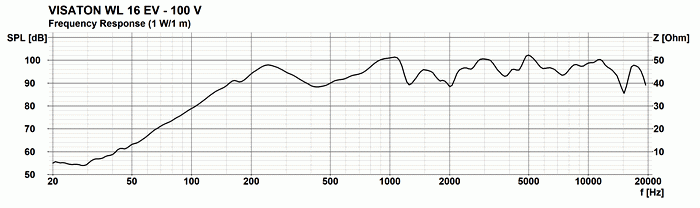

Frequency response
150–20000 Hz
Mean sound pressure level
92 dB (1 W/1 m)
Transformer matching
6 W/3 W/1.5 W
Net weight
1.6 kg

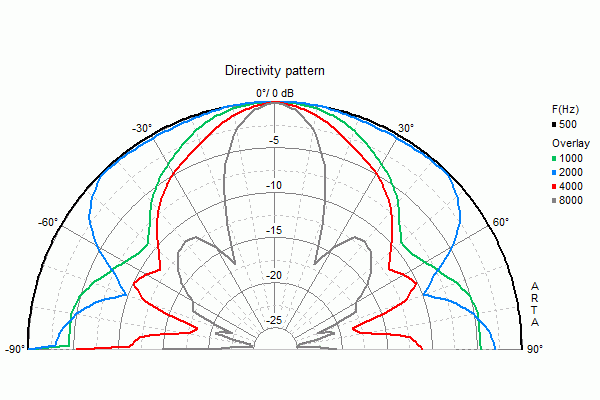

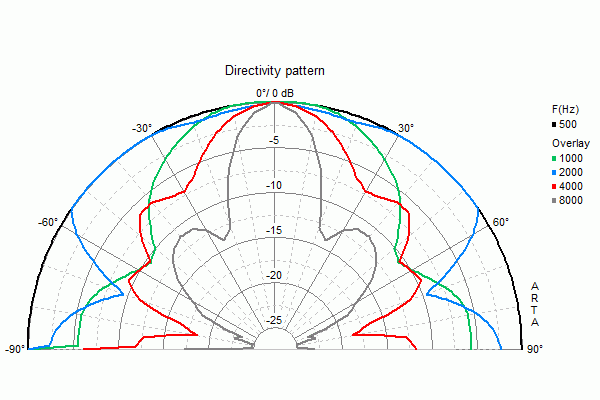

Opening angle (-6 dB)
49° hor./70° vert./4000 Hz
ex VAT
£127.14 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

Wall-mounted speaker with a white plastic cabinet and metal grille. Fitted with a full range driver and a 100 V transformer. Clear speech reproduction properties. Connection to the 100 volt network and level trimming by means of screw terminal.

Typical applications

  • Commercial 100 V audio systems
  • Speech and programme reproduction
  • Fixed installations using the published transformer taps
Full specifications
WL 16 EV 100 V, Wall-Mounted Speaker
Nominal impedance Z1.67 kΩ/3.33 kΩ/6.67 kΩ
Frequency response150–20000 Hz
Mean sound pressure level92 dB (1 W/1 m)
Opening angle (-6 dB)49° hor./70° vert./4000 Hz
Net weight1.6 kg
Transformer matching6 W/3 W/1.5 W
Max. sound pressure level99 dB (6 W/1 m)
ColourRAL 9010
ConnectionsScrew terminals
Dimensions and drawings
Visaton WL 16 EV - 100 V — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Isolate the 100 V line before wiring and select the transformer tap for the required local level.

Keep the total selected tap load within the amplifier's rated 100 V output, including design headroom.

Use the manufacturer drawing for fixing and clearance; secure the cable and preserve any stated environmental protection at the mounting surface.
