Visaton WL 25.20 EV 100 V, Wall-Mounted Speaker
Product photo · Enlarge image
Product photo
Product photo

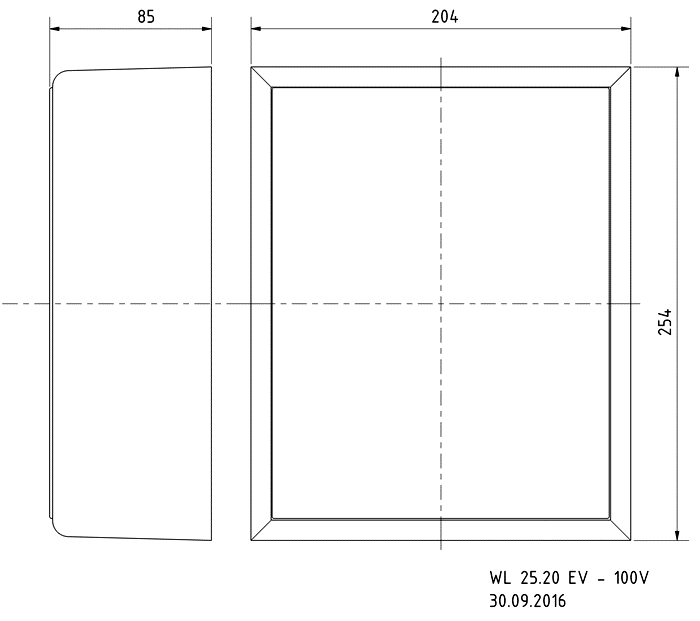

Dimension drawing

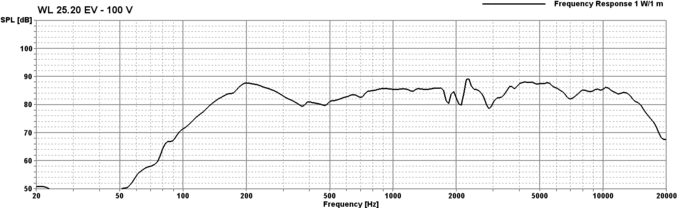

Response and impedance

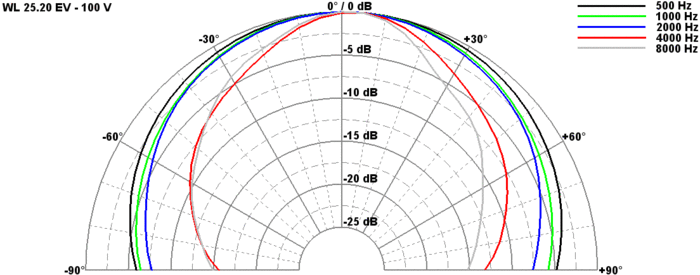

Directivity pattern

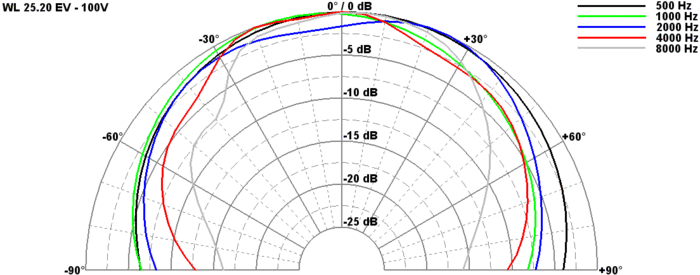

Directivity pattern
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription

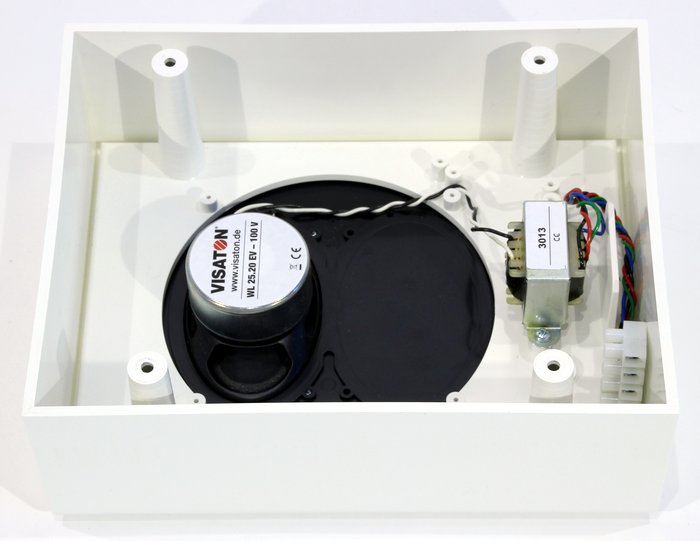

Wall-mounted speaker with a white plastic cabinet and metal grille. Fitted with a full range driver and a 100 V transformer. Clear speech reproduction properties. Connection to the 100 volt network and level trimming by means of screw terminal.
Typical applications
- Commercial 100 V audio systems
- Speech and programme reproduction
- Fixed installations using the published transformer taps
Full specifications
| Frequency response | 120–17000 Hz |
|---|---|
| Mean sound pressure level | 85 dB (1 W/1 m) |
| Opening angle (-6 dB) | 125° hor. (A)/87° vert. (B)/4000 Hz |
| Net weight | 1.32 kg |
| Transformer matching | 6 W/3 W/1.5 W (100 V) |
| Max. sound pressure level | 92 dB (6 W/1 m) |
| Colour | RAL 9010 |
| Connections | Screw terminals |
Dimensions and drawings

Dimension drawing · Open original image
Installation and cabinet guidance
Isolate the 100 V line before wiring and select the transformer tap for the required local level.
Keep the total selected tap load within the amplifier's rated 100 V output, including design headroom.
Use the manufacturer drawing for fixing and clearance; secure the cable and preserve any stated environmental protection at the mounting surface.
