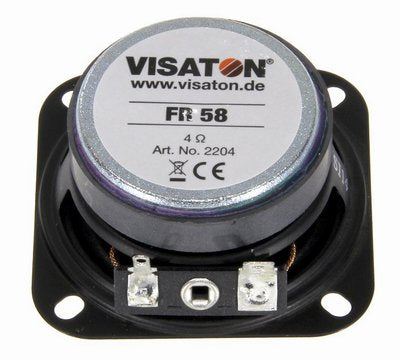

Visaton FR 58 4 Ohm, 2.3 Inch, Full Range Speaker
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The FR 58 combines a coated paper cone and rubber surround in a compact square basket. Four fixing holes and a supplied rubber gasket support installation in small audio systems and electronic equipment.
Typical applications
- Compact HiFi systems
- Small built-in audio systems
Full specifications
| Rated power | 10 W |
|---|---|
| Maximum power | 12 W |
| Nominal impedance | 4 Ω |

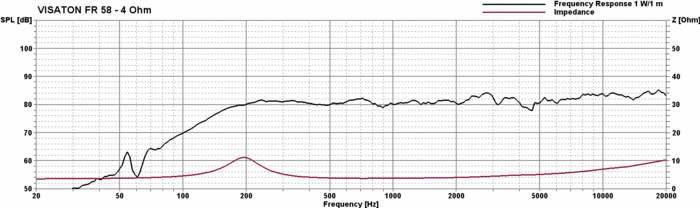

| Frequency response (−10 dB) | 120–20000 Hz |
| Mean sound pressure level | 81 dB (1 W/1 m) |
| Maximum linear displacement | ± 0.55 mm(= 1.1 mm) |
| Excursion limit | ± 2.5 mm |
| Resonance frequency fs | 190 Hz |
| Height of front pole-plate | 2.4 mm |
| Voice coil diameter | 14 mm |
| Height of winding | 3.5 mm |
| Cut-out | 57 mm |
| Net weight | 0.13 kg |
| Terminals | 5.2 x 0.5 mm (+)/2.8 x 0.5 mm (-) |
| Protective system | IP64 at the front when installed in a sealed enclosure |
| Temperature range | −40 to +100 °C |
Dimensions and drawings

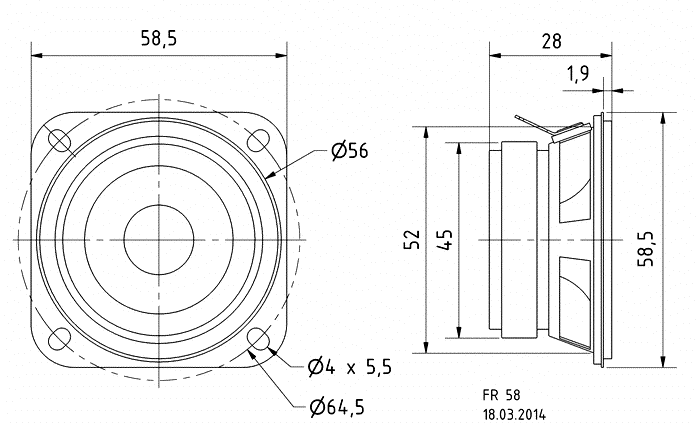

Dimension drawing · Open original image
Installation and cabinet guidance
Allow for a 57 mm panel opening and align the four slotted fixing holes. Seal the mounting joint and protect the rear from moisture: IP64 protection applies to the front when installed in a sealed enclosure. Optional grille: 2203.
Use an amplifier suitable for the 4 Ω load and observe terminal polarity. For a 100 V line system, connect through a suitable line transformer; do not connect the driver directly to the line.
