Visaton K 16 50 Ohm, 0.6 Inch, Miniature Speaker
Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The K 16 is a tiny round speaker with a front-side glue area and two short pre-stripped leads, made for signal output in very small devices and models. This 50 Ω version handles 0.5 W rated power and weighs 2 g.
Typical applications
- Very small devices
- Model construction
- Signal output
Full specifications
| Rated power | 0.5 W |
|---|---|
| Maximum power | 1 W |
| Nominal impedance | 50 Ω |
| Frequency response (−10 dB) | 700–20000 Hz |
| Mean sound pressure level | 71 dB (1 W/1 m) |
| Resonance frequency fs | 1005 Hz |
| Voice coil diameter | 8 mm |
| Cut-out | 13 mm |
| Net weight | 0.002 kg |
| Cable length | 24 mm |
| Temperature range | –20 to 65 °C |
Dimensions and drawings

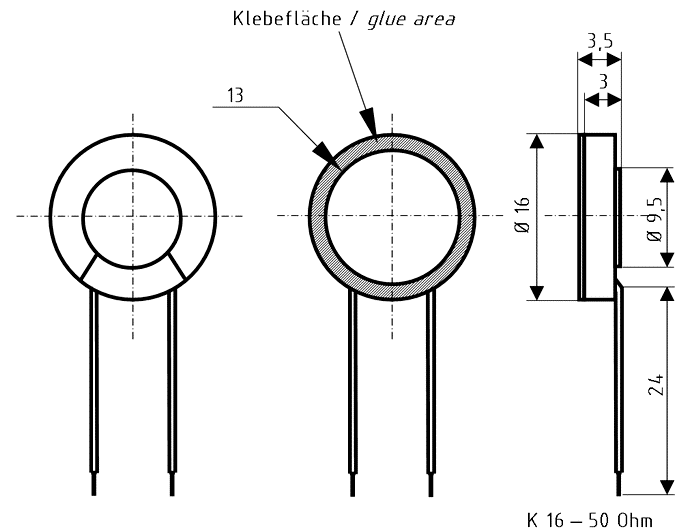

Dimension drawing · Open original image
Installation and cabinet guidance
Bond the 16 mm front face to a flat surface using the glue area and allow for a 13 mm sound opening. Leave about 3.5 mm depth plus room for the 24 mm leads.
Solder the leads to the driving circuit and observe polarity. Match the 50 Ω impedance to the output stage and keep the drive within the 0.5 W rating.
