Visaton K 57 FL 8 Ohm, 2.2 Inch, Miniature Speaker

Part number: 2952

A very flat 5.7 cm miniature speaker with a metal basket for equipment with limited installation depth.

Nominal size
5.7 cm / 2.2 inch
Impedance
8 Ω
Rated power
1 W
Cut-out
52 mm
Sensitivity
83 dB (1 W/1 m)
Resonance
350 Hz
ex VAT
£5.94 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The K 57 FL is a 5.7 cm miniature speaker with a Mylar diaphragm and a metal basket in a very flat design, made for signal output in machines and equipment where installation depth is limited. The 8 Ω unit handles 1 W rated power, weighs 16.5 g and connects through soldering points on the rear. Its IP65 front-side protection applies when it is built into a sealed enclosure.

Typical applications

  • Signal output in machines
  • Shallow equipment panels
Full specifications
K 57 FL · 8 Ω
Rated power1 W
Maximum power2 W
Nominal impedance8 Ω
Frequency response (−10 dB)220–16000 Hz
Mean sound pressure level83 dB (1 W/1 m)
Resonance frequency fs350 Hz
Voice coil diameter14 mm
Height of winding1.5 mm
Cut-out52 mm
Net weight16.5 g
TerminalsSolder joints
Protective systemIP65 — front side in a sealed enclosure
Temperature range–25 to 70 °C
Dimensions and drawings

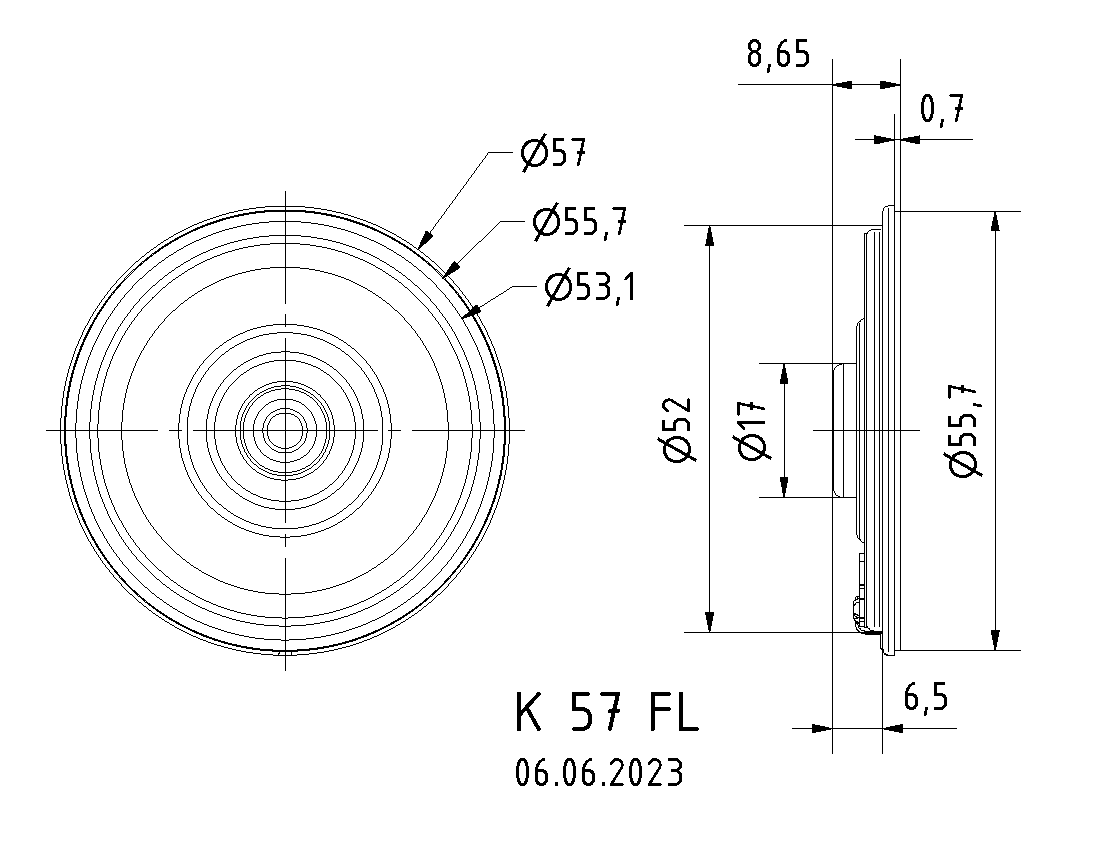

K 57 FL · 8 Ω · part 2952 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for a 52 mm opening and the 57 mm frame, with about 9 mm behind the panel for the body and solder points. Seal the rim to the panel so the front-side protection is effective.

Solder to the rear points, observe polarity and keep the drive within the 1 W rating from an output stage suitable for the 8 Ω load.
