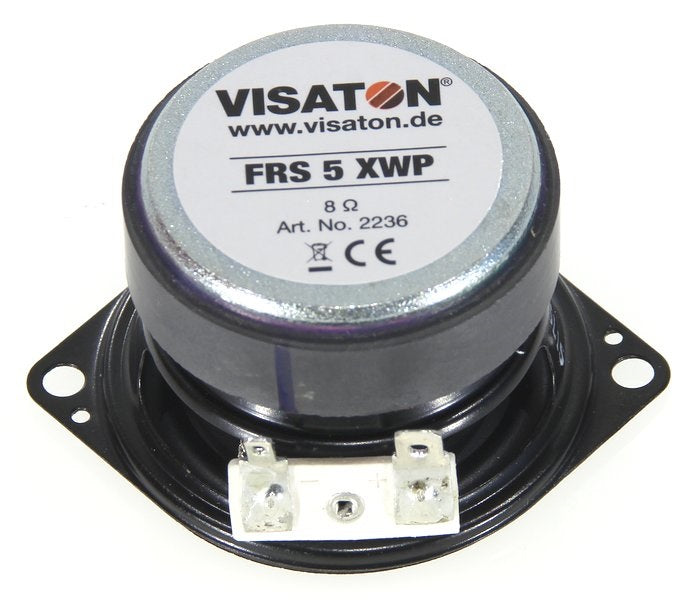

{ "id":1676808650819, "title":"Visaton FRS 5 XWP 8 Ohm, 2 Inch, Waterproof Full Range Speaker","handle":"visaton-frs-5-xwp-8-ohm", "description":"\u003cp\u003eVisaton FRS 5 XWP · 8 Ω — manufacturer article 2236\u003c\/p\u003e\n\u003cp\u003eA 5 cm full-range speaker with a non-corroding metal basket and two fixing lugs for hi-fi and PA systems.\u003c\/p\u003e\n\u003cp\u003eThe FRS 5 XWP is a slim 5 cm full-range speaker with a black metal basket, and its low resonance takes the response down to 120 Hz. This waterproof version has a PET cone, Mylar dust cap and rubber gasket, rated IP65 and IP67 at the front when built into a sealed enclosure. The UV-resistant 8 Ω unit handles 5 W and gives 86 dB (1 W\/1 m).\u003c\/p\u003e\n\u003ch2\u003eApplications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eHi-fi, small PA and 100 V PA speaker systems\u003c\/li\u003e\n\u003cli\u003eControl speaker in electronic devices\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eKey selection facts\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eNominal size: 5 cm \/ 2 inch\u003c\/li\u003e\n\u003cli\u003eImpedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eRated power: 5 W\u003c\/li\u003e\n\u003cli\u003eProtection: IP65 \/ IP67 — front side in a sealed enclosure\u003c\/li\u003e\n\u003cli\u003eSensitivity: 86 dB (1 W\/1 m)\u003c\/li\u003e\n\u003cli\u003eResonance: 190 Hz\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eInstallation and compatibility\u003c\/h2\u003e\n\u003cp\u003eNo cut-out is published for this driver: the round frame is 52.5 mm in diameter and carries two diagonally opposed fixing lugs, 68 mm overall, with 4.2 mm holes 60 mm apart. Size the opening from the unit itself and leave a flat, clear seating for both lugs. Behind the 1.5 mm flange allow about 33.5 mm for the body and its 45 mm magnet, plus room for the terminals and the wiring.\u003c\/p\u003e\n\u003cp\u003eThe IP65 and IP67 protection applies to the front of the driver only, and only when it is built into a sealed enclosure; the rear is open to the enclosure. Compress the fitted rubber gasket evenly against a flat panel and protect the rear from water and dust; bonding the driver in and fitting a front cover or grille may be needed to complete the protection. Fit the gasket dry, tighten the fixings evenly so the frame is not distorted, and run the cable so that water cannot track along it into the enclosure. Operating temperature range −25 to 70 °C.\u003c\/p\u003e\n\u003cp\u003eConnect to the 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors and observe polarity; the blades differ in width, so the wider blade identifies the positive. Use an amplifier suitable for the 8 Ω load and keep the drive within the 5 W rating. For a 100 V PA system, connect through a suitable line transformer; do not connect the driver directly to the line.\u003c\/p\u003e\n\u003ch2\u003eTechnical specifications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eNominal impedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eFrequency response (−10 dB): 120–20000 Hz\u003c\/li\u003e\n\u003cli\u003eMean sound pressure level: 86 dB (1 W\/1 m)\u003c\/li\u003e\n\u003cli\u003eResonance frequency fs: 190 Hz\u003c\/li\u003e\n\u003cli\u003eNet weight: 0.14 kg\u003c\/li\u003e\n\u003cli\u003eD.C. resistance Rdc: 7.9 Ω\u003c\/li\u003e\n\u003cli\u003eTerminals: 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-)\u003c\/li\u003e\n\u003cli\u003eProtective system: IP65 \/ IP67 — front side in a sealed enclosure\u003c\/li\u003e\n\u003cli\u003eTemperature range: −25 to 70 °C\u003c\/li\u003e\n\u003cli\u003eEnvironmental attributes: Rubber gasket; waterproof version with PET cone and Mylar dust cap; UV-resistant; non-corroding metal basket\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eManufacturer information\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/sites\/default\/files\/dd_product\/FRS%205%20XWP_2236.pdf\"\u003eManufacturer datasheet (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/fullrange-systems\/frs-5-xwp-8-ohm\"\u003eCurrent manufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e", "published_at":"2018-10-11T15:13:06", "created_at":"2018-10-11T15:13:07", "vendor":"Visaton", "type":"Visaton Miniature Speakers", "tags":["Impedance_8 Ohm","Size_2 inch","Type_Waterproof Mini Speakers","Visaton","Visaton Miniature Speakers","Waterproof Speakers: Waterproof Mini Speakers"], "price":1295, "price_min":1295, "price_max":1295, "price_varies":false, "compare_at_price":null, "compare_at_price_min":0, "compare_at_price_max":0, "compare_at_price_varies":true, "all_variant_ids":[15303063208003], "variants":[{ "id":15303063208003, "product_id":1676808650819, "product_handle":"visaton-frs-5-xwp-8-ohm", "title":"Default Title", "option1":"Default Title", "option2":null, "option3":null, "sku":"2236", "requires_shipping":true, "taxable":true, "featured_image":null,"image_id":null, "available":true, "name":"Visaton FRS 5 XWP 8 Ohm, 2 Inch, Waterproof Full Range Speaker - Default Title", "options":["Default Title"], "price":1295, "weight":0, "compare_at_price":null, "inventory_quantity":-88, "inventory_management":null, "inventory_policy":"deny", "inventory_in_cart":0, "inventory_remaining":-88, "incoming":false, "next_incoming_date":null, "taxable":true, "barcode":null}], "available":true,"images":["\/\/impactaudio.co.uk\/cdn\/shop\/products\/86f1eaa56661dad72e419954c9403b3f.jpg?v=1539267187","\/\/impactaudio.co.uk\/cdn\/shop\/products\/frs5xwp_8_tz.gif?v=1540199515","\/\/impactaudio.co.uk\/cdn\/shop\/products\/frs5xwp_8_fs.gif?v=1540199529","\/\/impactaudio.co.uk\/cdn\/shop\/products\/frs5xwp_8_rd.gif?v=1540199542"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/86f1eaa56661dad72e419954c9403b3f.jpg?v=1539267187", "options":["Title"], "url":"\/products\/visaton-frs-5-xwp-8-ohm"}
