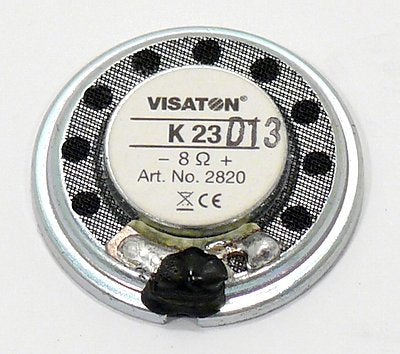

Visaton K 23, 8 Ohm, 0.9 Inch - Miniature Speaker

Product Description
2.3 cm (0.9") miniature speaker with Mylar diaphragm and round metal basket. Thanks to its small dimensions, suitable for signal output in equipment, where space is at a premium. Connection via soldering points on rear side.
£3.95 ex VAT
£4.74 inc VAT
 More payment options
Maximum quantity available reached.

Product Specifications

TitleValue
Rated power0.3 W
Maximum power0.5 W
Nominal impedance Z8 Ohm

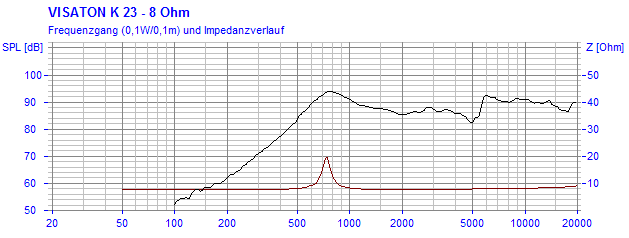

Frequency response420–20000 Hz
Mean sound pressure level79 dB (1 W/1 m)
Resonance frequency fs750 Hz
Voice coil diameter10.4 mm
Height of winding1.5 mm
Cutout diameter21 mm
Net weight0.004 kg
Protective systemIP 64 *)
Temperature range–25 ... 70 °C
