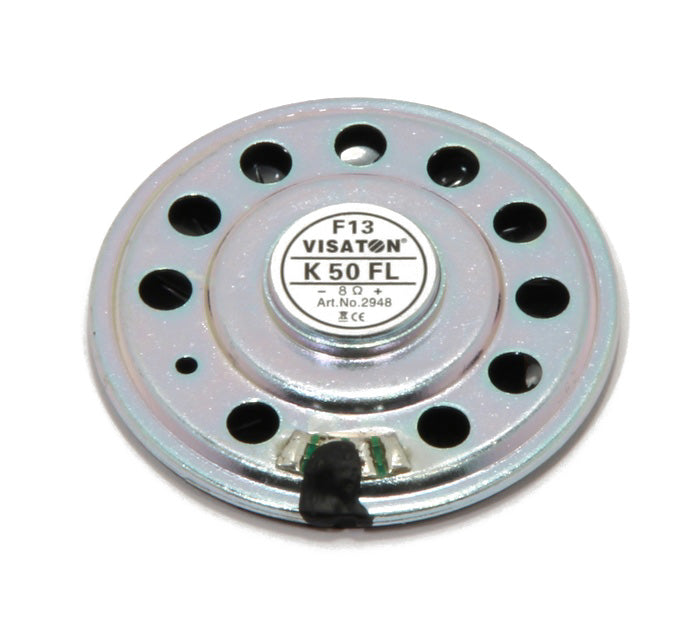

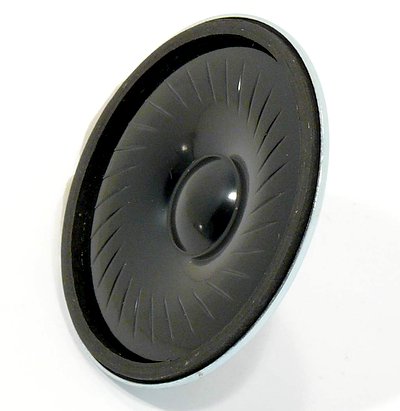

Visaton K 50 FL 8 Ohm, 2 Inch, Miniature Speaker

Part number: 2948

A compact 5 cm, 8 Ω miniature speaker with good speech reproduction and front-side IP65 protection when correctly installed.

Nominal size
5 cm / 2 inch
Nominal impedance
8 Ω
Rated power
1 W
Cut-out
46 mm diameter
Net weight
14 g
Front protection
IP65 in a sealed enclosure
£4.95 ex VAT £5.94 inc VAT

UK delivery £4.99, free over £50 inc VAT

Maximum quantity available reached.

Description

The K 50 FL is a very flat 5 cm miniature speaker for speech and signalling. This 8 Ω version has a 1 W power rating, a 46 mm cut-out and solder terminals. Its front-side IP65 rating requires the installation conditions described by VISATON.

Typical applications

  • Speech reproduction in compact electronic equipment
  • Signal output in machines and small devices
Full specifications
Visaton K 50 FL 8 Ohm, 2 Inch, Miniature Speaker
Rated power1 W
Maximum power2 W
Nominal impedance Z8 Ω
Voice coil diameter13 mm
Height of winding2 mm
Cutout diameter46 mm
Net weight0.014 kg
ConnectionsSolder joints
Protective system (front only, in a sealed enclosure)IP 65
Temperature range−40 ... 70 °C
Dimensions and drawings

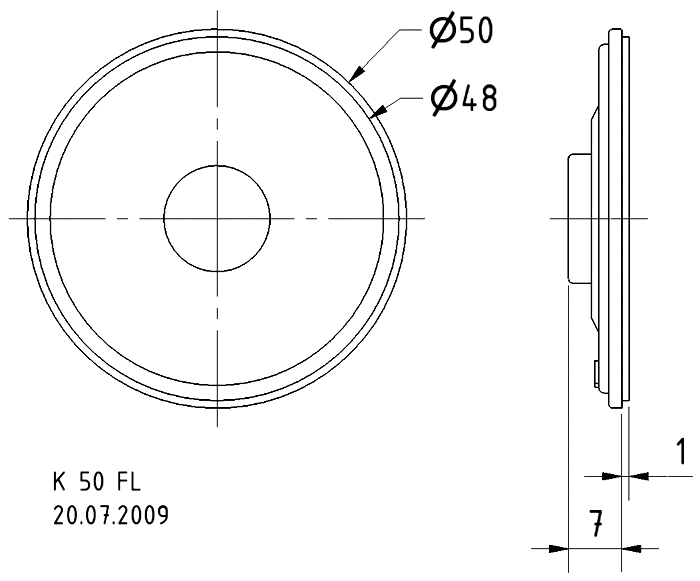

Visaton K 50 FL - 8 Ω — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Use the manufacturer drawing to confirm cut-out, depth and fixing positions before machining the enclosure.

Connect an amplifier suitable for the stated nominal impedance and observe terminal polarity where marked.

Mount the unit on a rigid, sealed baffle where required and keep drive within the manufacturer's rated and maximum limits.

The IP65 rating applies to the front only when fitted into a sealed enclosure; protect the rear and cable connections as required.

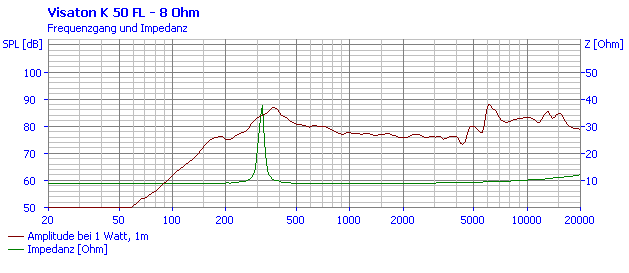

For frequency response, sensitivity and resonance, use the figures on the manufacturer data sheet under Downloads.
