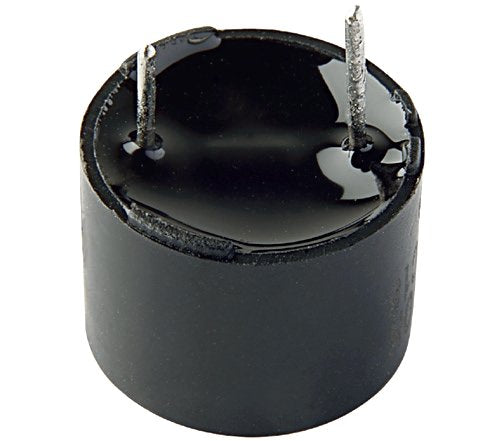

Visaton MB 12 5 V, Magnetic Buzzer

Part number: 3590

12 mm Magnetic Buzzer Electro-magnetic signalling transmitter for devices and applications, e.g. for industrial and office technology, medical technology, home and automotive electronics.

Sound pressure level
88 dB (0.1 m)
Resonance frequency fs
2300 Hz
Net weight
2 g
Connections
Solder pins
Temperature range
−40 ... 85 °C
Input voltage
5 VDC (3–7 VDC)
£1.95 Business price, ex VAT £2.34 inc VAT at 20%
Maximum quantity available reached.

Description

12 mm Magnetic Buzzer Electro-magnetic signalling transmitter for devices and applications, e.g. for industrial and office technology, medical technology, home and automotive electronics.

Typical applications

  • Equipment signalling
  • Industrial and office technology
  • Medical, home and automotive electronics
Full specifications
MB 12 5 V, Magnetic Buzzer
Resonance frequency fs2300 Hz
Net weight2 g
Sound pressure level88 dB (0.1 m)
ConnectionsSolder pins
Input voltage5 VDC (3–7 VDC)
Temperature range−40 ... 85 °C
Dimensions and drawings

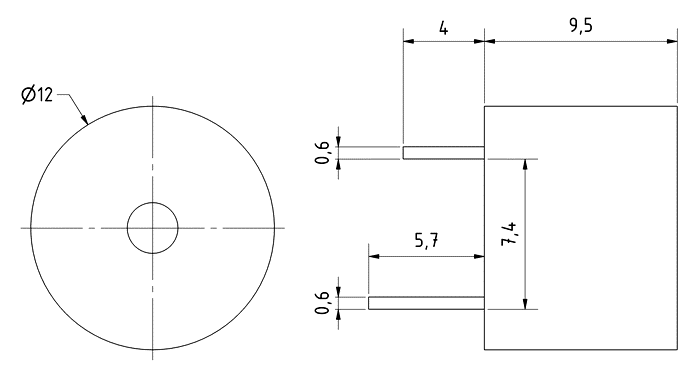

Visaton MB 12 - 5 V — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Drive the buzzer only with the voltage and waveform stated in the specification table.

Use the stated solder-pin or solder-joint connection and provide strain relief on the board or wiring.

Check the manufacturer drawing for footprint and clearance before finalising the PCB or enclosure.
