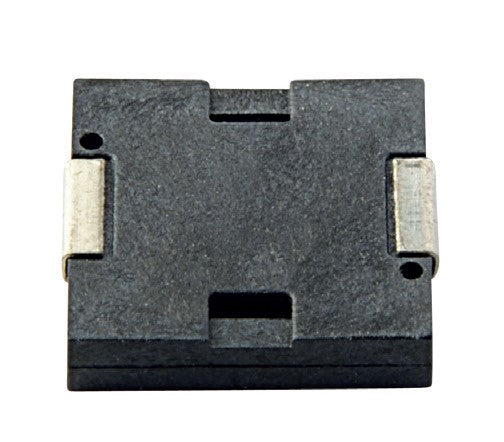

Visaton PB 9.9 3 V, Piezo Buzzer

Part number: 3580

9 x 9 mm Piezo Buzzer Piezo-electric signalling transmitter for devices and applications, e.g. for industrial and office technology, medical technology, home and automotive electronics.

Sound pressure level
70 dB (0.1 m)
Resonance frequency fs
4000 Hz
Net weight
0.2 g
Connections
Solder joints
Temperature range
−40 ... 85 °C
Input voltage
3 Vp-p (1–25 Vp-p; square wave)
£1.95 Business price, ex VAT £2.34 inc VAT at 20%
Maximum quantity available reached.

Description

9 x 9 mm Piezo Buzzer Piezo-electric signalling transmitter for devices and applications, e.g. for industrial and office technology, medical technology, home and automotive electronics.

Typical applications

  • Equipment signalling
  • Industrial and office technology
  • Medical, home and automotive electronics
Full specifications
PB 9.9 3 V, Piezo Buzzer
Resonance frequency fs4000 Hz
Net weight0.2 g
Sound pressure level70 dB (0.1 m)
ConnectionsSolder joints
Input voltage3 Vp-p (1–25 Vp-p; square wave)
Temperature range−40 ... 85 °C
Dimensions and drawings

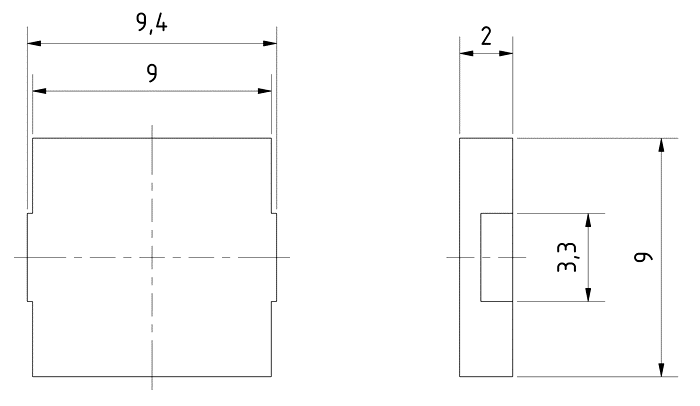

Visaton PB 9.9 - 3 V — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Drive the buzzer only with the voltage and waveform stated in the specification table.

Use the stated solder-pin or solder-joint connection and provide strain relief on the board or wiring.

Check the manufacturer drawing for footprint and clearance before finalising the PCB or enclosure.
