Visaton EZ 40.7 100 V, Column Speaker
Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The EZ 40.7 uses four 5 cm drivers in a white RAL 9010 aluminium cabinet. Visaton lists a 230–20000 Hz response, 91 dB mean sound pressure, 20/10/5 W transformer settings, 104 dB maximum output at 20 W/1 m and IP54 protection. It can mount from the end faces or with optional universal-joint brackets.
Typical applications
- Commercial 100 V audio systems
- Speech and programme reproduction
- Fixed installations using the published transformer taps
Full specifications

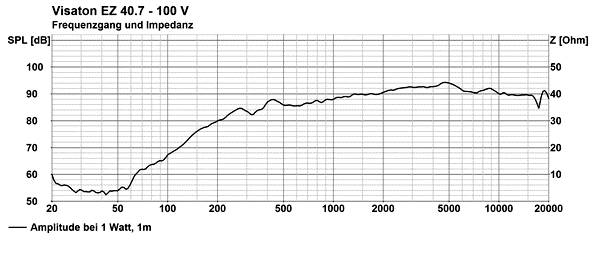

| Frequency response | 230–20000 Hz |
|---|---|
| Mean sound pressure level | 91 dB (1 W/1 m) |

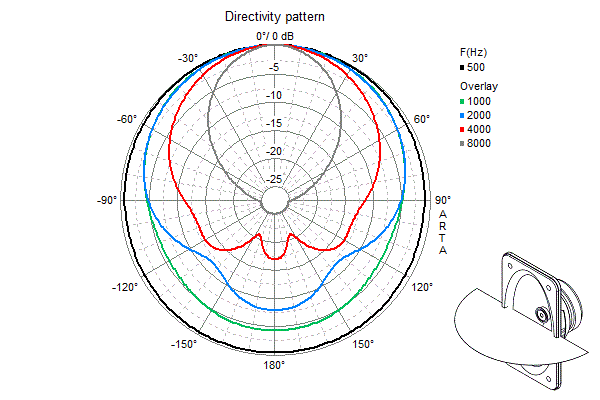

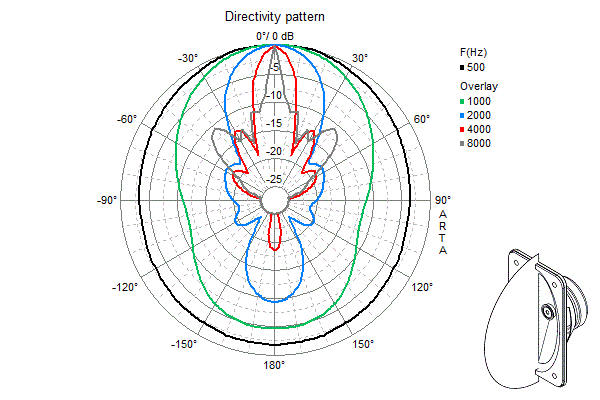

| Opening angle (-6 dB) | 111°/4000 Hz hor. / 33°/4000 Hz vert. |
| Net weight | 2.1 kg |
| Transformer matching | 20 W/10 W/5 W |
| Sound pressure level | 94 dB (1 W/1 m)@ 5000 Hz |
| Max. sound pressure level | 104 dB (20 W/1 m) |
| Colour | RAL 9010 |
| Protective system | IP 54 |
| Temperature range | −40 ... 80 °C |

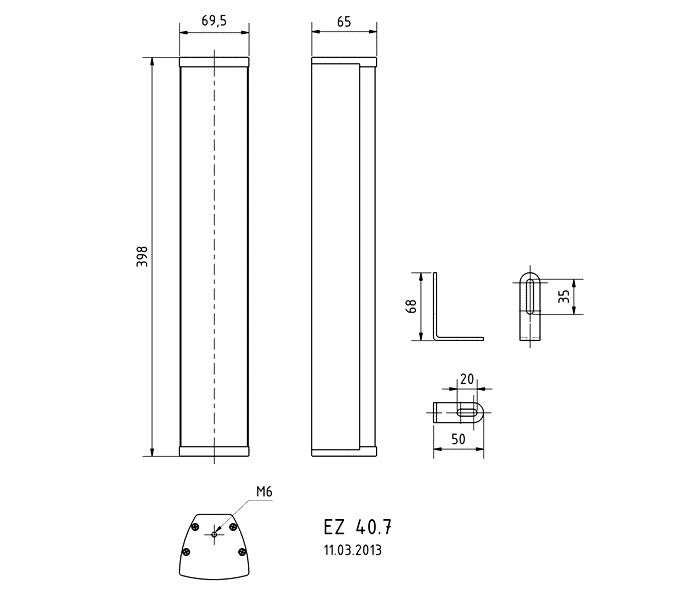

Dimensions and drawings

Dimension drawing · Open original image
Installation and cabinet guidance
Isolate the 100 V line before wiring and select the transformer tap for the required local level.
Keep the total selected tap load within the amplifier's rated 100 V output, including design headroom.
Use the manufacturer drawing for fixing and clearance; secure the cable and preserve any stated environmental protection at the mounting surface.
