Visaton HT 21, High Range Horn

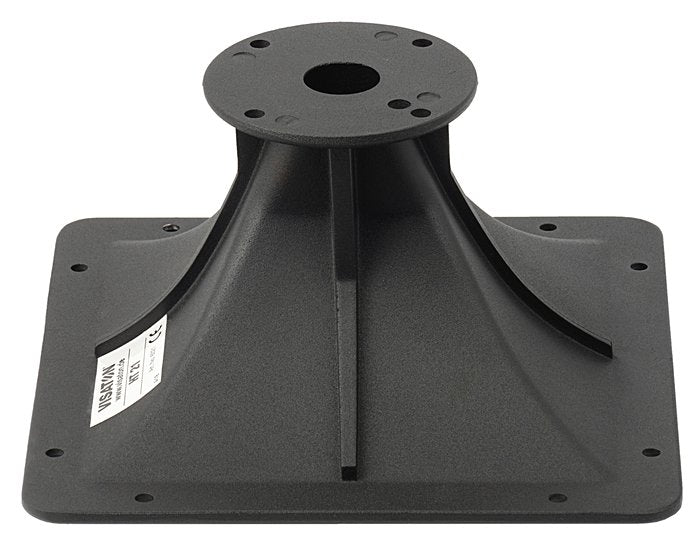

Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The HT 21 is a high-range horn designed for the DR 45 N 8 Ω driver, manufacturer reference 6060. Visaton specifies die-cast aluminium construction, a matt-black finish, 0.89 kg net weight, 105 mm mounting depth and a 170 × 170 mm cut-out for PA applications.
Typical applications
- PA high-frequency sections
- Systems using the DR 45 N 8 Ω driver
- Custom horn loudspeaker projects
Full specifications
| Net weight | 0.89 kg |
|---|---|
| Mounting depth | 105 mm |
| Cutout diameter | 170 x 170 mm |
Dimensions and drawings

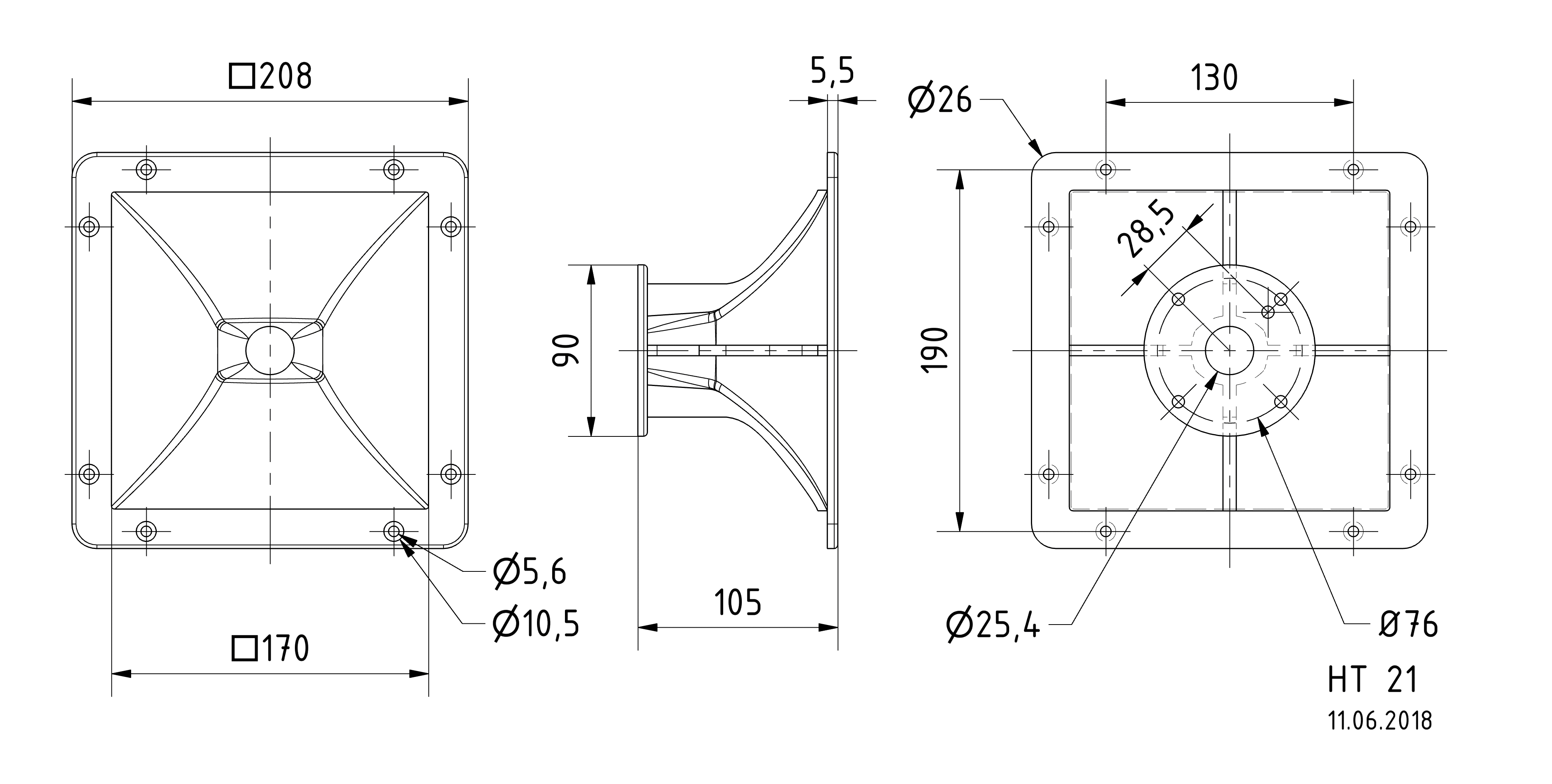

Dimension drawing · Open original image
Installation and cabinet guidance
Use the HT 21 with the stated DR 45 N 8 Ω compression driver.
Cut and drill from the manufacturer drawing, allowing for the listed depth behind the baffle.
Support the die-cast horn on a rigid baffle and protect the driver and connections from mechanical load.
