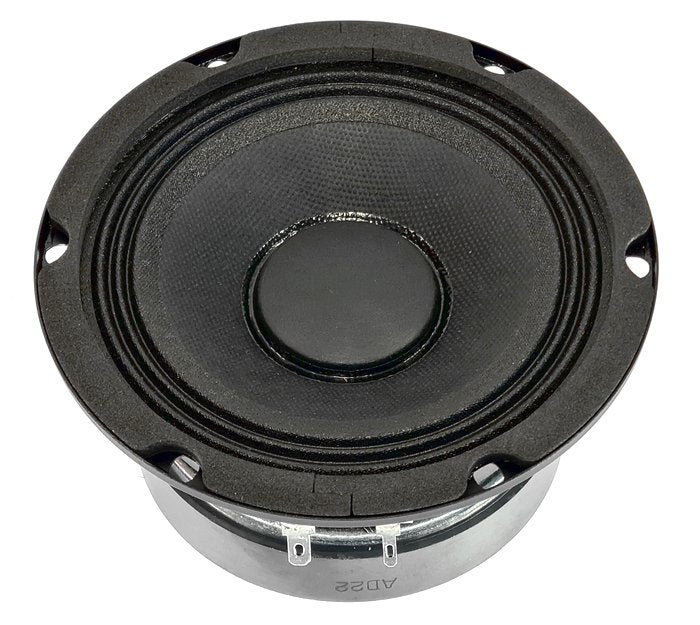

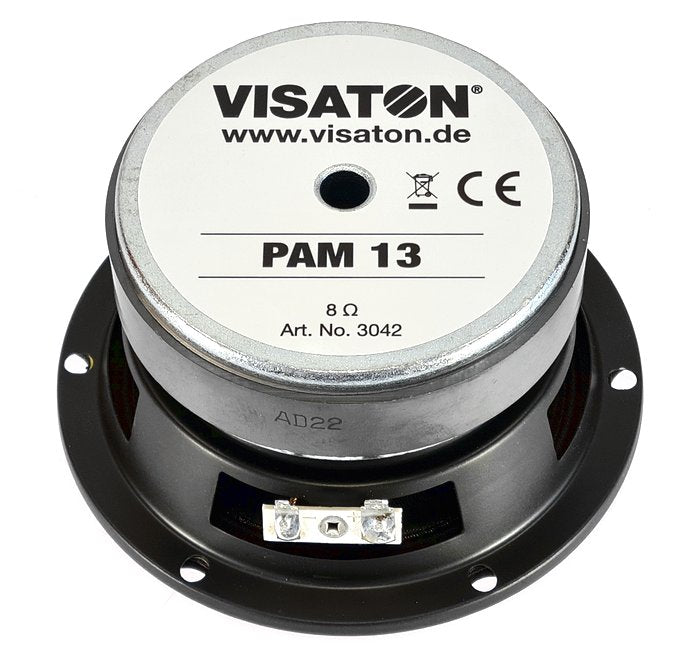

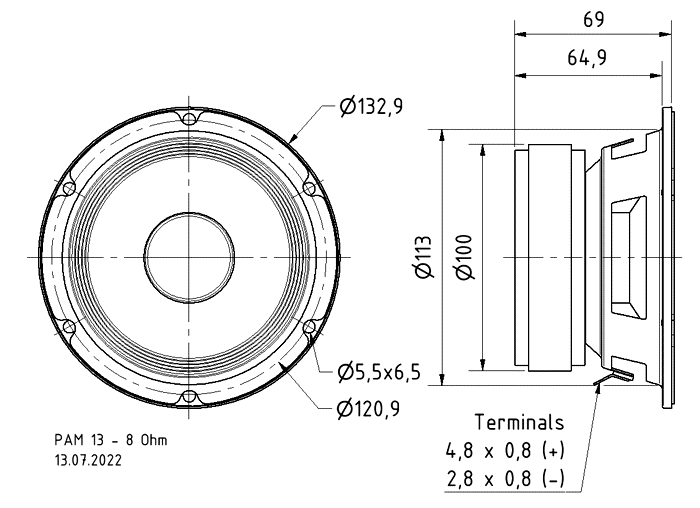

{ "id":15940477911422, "title":"Visaton PAM 13 8 Ohm, 5 Inch, PA Midrange Speaker","handle":"visaton-pam-13-8-pa-midrange-art-no-3042", "description":"\u003cp\u003eAn 8 Ω PA midrange driver with a 38 mm voice coil and a substantial ferrite motor.\u003c\/p\u003e\u003cp\u003eThe PAM 13 uses a paper cone and fabric surround for midrange duties in multiway loudspeakers. Its 60 W rating and robust construction suit compact PA systems where the bass and high-frequency sections are handled separately.\u003c\/p\u003e\u003ch3\u003eKey details\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003e\n\u003cstrong\u003eType:\u003c\/strong\u003e PA midrange driver\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eConnection:\u003c\/strong\u003e 8 Ω\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003ePower \/ taps:\u003c\/strong\u003e 60 W\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eFrequency range:\u003c\/strong\u003e 85–15000 Hz\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eFormat:\u003c\/strong\u003e 13 cm\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eFitting \/ feature:\u003c\/strong\u003e 115 mm cut-out\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eApplications\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003eMultiway PA loudspeakers\u003c\/li\u003e\n\u003cli\u003eCompact professional midrange sections\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eTechnical specifications\u003c\/h3\u003e\u003ctable\u003e\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eRated power\u003c\/th\u003e\n\u003ctd\u003e60 W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eNominal impedance\u003c\/th\u003e\n\u003ctd\u003e8 Ω\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eFrequency response\u003c\/th\u003e\n\u003ctd\u003e85-15000 Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eMean sound pressure level\u003c\/th\u003e\n\u003ctd\u003e88 dB (1 W\/1 m)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eResonance frequency fs\u003c\/th\u003e\n\u003ctd\u003e135 Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eVoice coil diameter\u003c\/th\u003e\n\u003ctd\u003e38 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eCutout diameter\u003c\/th\u003e\n\u003ctd\u003e115 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eNet weight\u003c\/th\u003e\n\u003ctd\u003e1.45 kg\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eConnections\u003c\/th\u003e\n\u003ctd\u003e4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (–)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\u003c\/table\u003e\u003ch3\u003eInstallation\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003eAllow a 115 mm cut-out and check rear clearance and fixing positions against the drawing; the driver weighs 1.45 kg.\u003c\/li\u003e\n\u003cli\u003eUse a suitable crossover and high-pass protection for midrange duty. The full published response range does not mean unrestricted bass power handling.\u003c\/li\u003e\n\u003cli\u003eConnect the unequal 4.8 × 0.8 mm positive and 2.8 × 0.8 mm negative terminals to a suitable 8 Ω crossover or amplifier channel.\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eDownloads\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/sites\/default\/files\/dd_product\/PAM%2013_3042.pdf\"\u003eManufacturer datasheet (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/bass-midranges\/pam-13-8-ohm\"\u003eManufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e", "published_at":"2026-09-10T13:31:48", "created_at":"2026-06-02T13:28:26", "vendor":"Visaton", "type":"Midrange driver", "tags":["8 Ω","Driver","Impedance_8 Ohm","Loudspeaker","New Products","PAM","speaker","Type_PA Midrange","Visaton","Visaton Public Address Speakers : Accessories"], "price":5960, "price_min":5960, "price_max":5960, "price_varies":false, "compare_at_price":null, "compare_at_price_min":0, "compare_at_price_max":0, "compare_at_price_varies":true, "all_variant_ids":[57499383693694], "variants":[{ "id":57499383693694, "product_id":15940477911422, "product_handle":"visaton-pam-13-8-pa-midrange-art-no-3042", "title":"Default Title", "option1":"Default Title", "option2":null, "option3":null, "sku":"3042", "requires_shipping":true, "taxable":true, "featured_image":null,"image_id":null, "available":true, "name":"Visaton PAM 13 8 Ohm, 5 Inch, PA Midrange Speaker - Default Title", "options":["Default Title"], "price":5960, "weight":1450, "compare_at_price":null, "inventory_quantity":0, "inventory_management":"shopify", "inventory_policy":"continue", "inventory_in_cart":0, "inventory_remaining":0, "incoming":false, "next_incoming_date":null, "taxable":true, "barcode":null}], "available":true,"images":["\/\/impactaudio.co.uk\/cdn\/shop\/files\/20220624_130926_b_1.jpg?v=1789040856"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/files\/20220624_130926_b_1.jpg?v=1789040856", "options":["Title"], "url":"\/products\/visaton-pam-13-8-pa-midrange-art-no-3042"}
