Visaton PL 13 100 V, Flush Mount Speaker
Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The PL 13 combines a full-range driver and 100 V transformer in a cylindrical ABS housing. Visaton lists 15, 7.5 and 3.75 W transformer settings, 160–15000 Hz response, 93 dB mean sound pressure, IP65 protection and an adjustable bracket for wall or ceiling mounting.
Typical applications
- Commercial 100 V audio systems
- Speech and programme reproduction
- Wall or ceiling mounting with the adjustable bracket
Full specifications

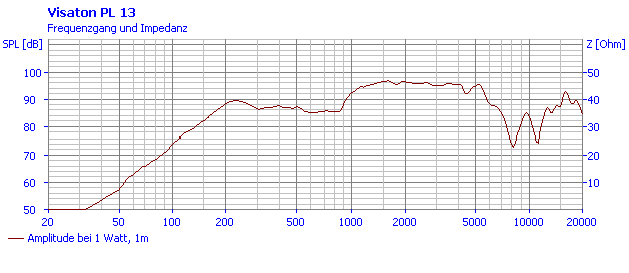

| Frequency response | 160–15000 Hz |
|---|---|
| Mean sound pressure level | 93 dB (1 W/1 m) |

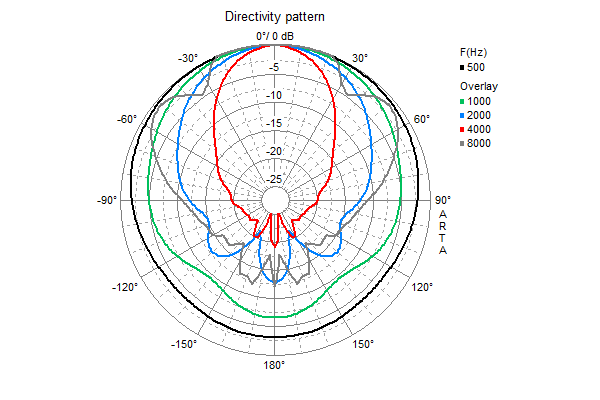

| Opening angle (-6 dB) | 56°/4000 Hz |
| Net weight | 1.7 kg |
| Transformer matching | 15; 7.5; 3.75 W |
| Sound pressure level | 97 dB (1 W/1 m)@ 3260 Hz |
| Max. sound pressure level | 105 dB (15 W/1 m) |
| Length of cable | 1 m |
| Protective system | IP 65 |
| Temperature range | −40 ... 80 °C |
| Manufacturer article number | 50351 |
Dimensions and drawings

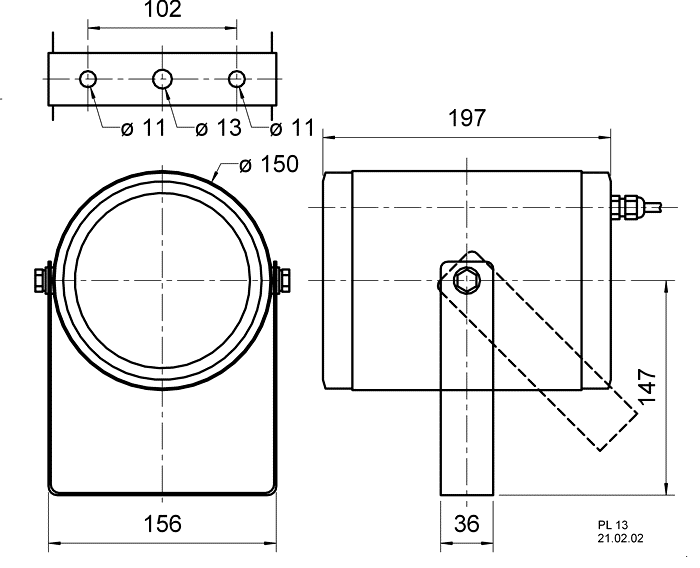

Dimension drawing · Open original image
Installation and cabinet guidance
Isolate the 100 V line before wiring and select the transformer tap for the required local level.
Keep the total selected tap load within the amplifier's rated 100 V output, including design headroom.
Use the manufacturer drawing for fixing and clearance; secure the cable and preserve any stated environmental protection at the mounting surface.
