Visaton KL 33 MK 2 100 V/4 Ohm, Spherical Speaker (White)
White finish · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The KL 33 MK 2 is a spherical loudspeaker for speech and programme coverage in high-ceiling spaces. It offers 12/6/3/1.5 W transformer taps for a 100 V line, plus a 4 Ω connection. Choose the colour option required for the installation.
Typical applications
- Commercial audio systems
- Speech and programme reproduction
- Fixed installations using the stated 100 V or low-impedance connection
Full specifications
| Rated power | 50 W |
|---|---|
| Maximum power | 70 W |
| Nominal impedance Z | 4 Ω |

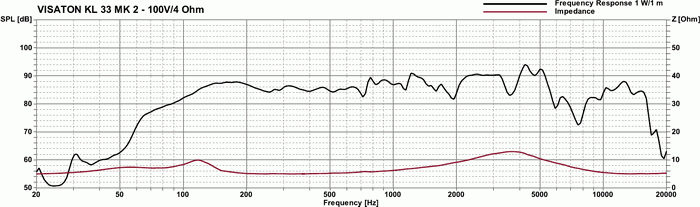

| Frequency response | 70–18000 Hz |
| Mean sound pressure level | 86 dB (1 W/1 m) |

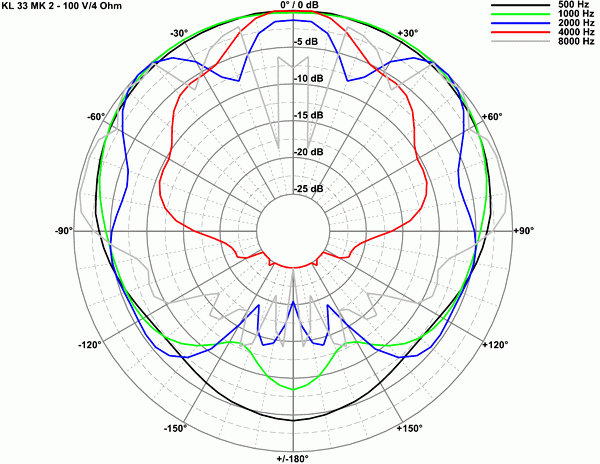

| Opening angle (-6 dB) | 73°/4000 Hz |
| Net weight | 4.6 kg |
| Transformer matching | 12/6/3/1.5 W |
| Max. sound pressure level | 97 dB (12 W/1 m) |
| Length of cable | 3.0 m |
| Protective system | IP44 for the white version; confirm protection requirements for black |
| Colour options | White / Black |
| Technical data | White version; confirm black-version requirements before specifying |

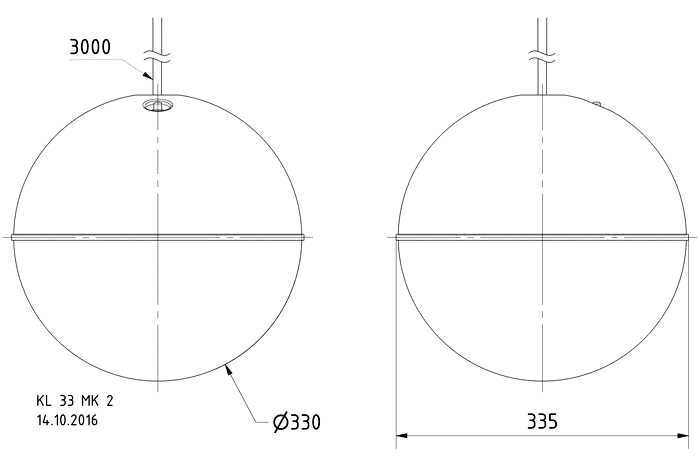

Dimensions and drawings

Dimension drawing · Open original image
Installation and cabinet guidance
Isolate the 100 V line before wiring and select the transformer tap for the required local level.
Keep the total selected tap load within the amplifier's rated 100 V output, including design headroom.
Use the manufacturer drawing for fixing and clearance; secure the cable and preserve any stated environmental protection at the mounting surface.
