Visaton R 10 SC - 100 V, 4 Inch - Full Range Speaker

Product Description

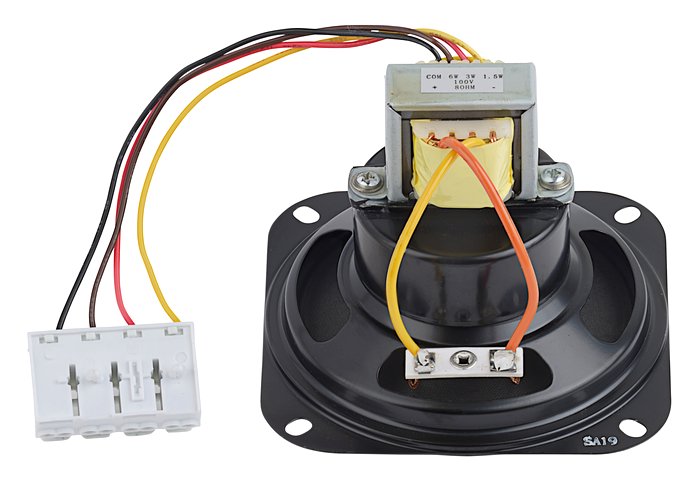

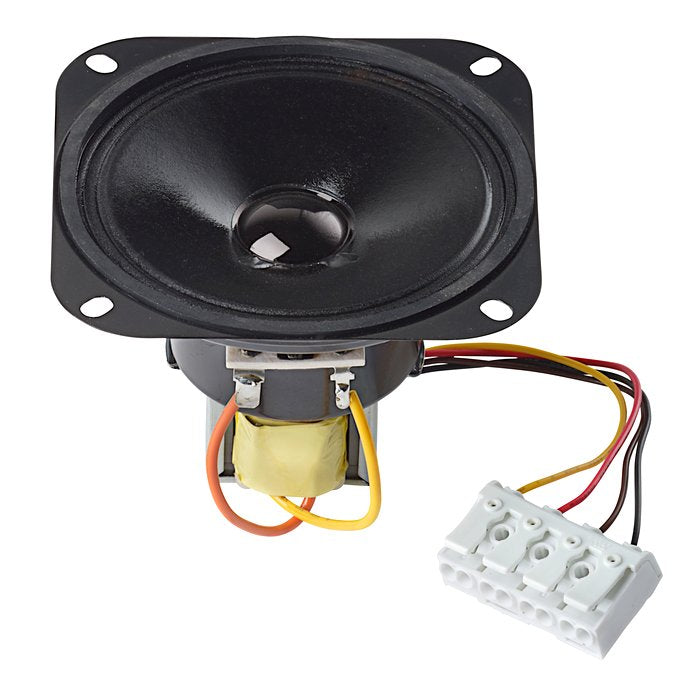

Magnetically shielded 10 cm (4") fullrange speaker with high efficiency, balanced frequency response and high frequency rise for good off-axis speech intelligibility. Water-repellent cone and rubber gasket. Especially suitable as speaker for public applications and public transport systems. With 100 V transformer. An Adels-Contact push-terminal block, which can be fixated via catch pins, allows quick and easy connection to a 100 V network.


*) IP protection class for front side when built into a sealed enclosure (gluing of the loudspeaker might be necessary)

Typical applications
Ceiling- mounted speakers in railway carriages and busses
Attributes
  • 100 V transformer
  • Functionally at cold according to EN 60068-2-1/EN 50155
  • Cold storage (-40 °C) according to EN 60068-2-1/EN 50155
  • Functionally at damp heat (cyclic) according to EN 60068-2-3/EN 50155
ex VAT
£40.66 inc VAT
Maximum quantity available reached.

Product Specifications
