Visaton WL 13 P 100 V, Wall Speaker

Previous Product | Next Product
WL 13 P · 100 V · part 50321 — Product photo

Product photo · Enlarge image

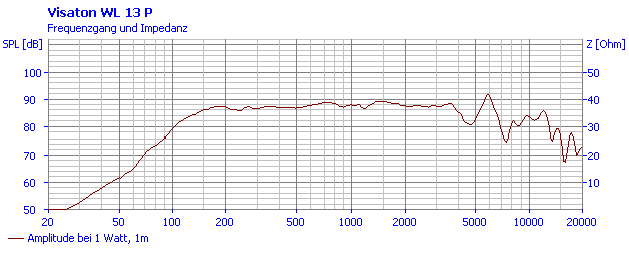

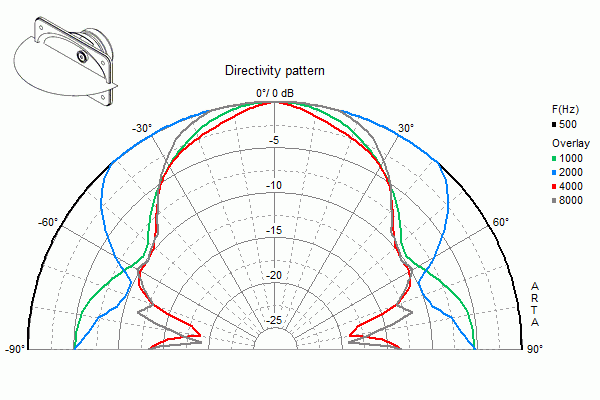

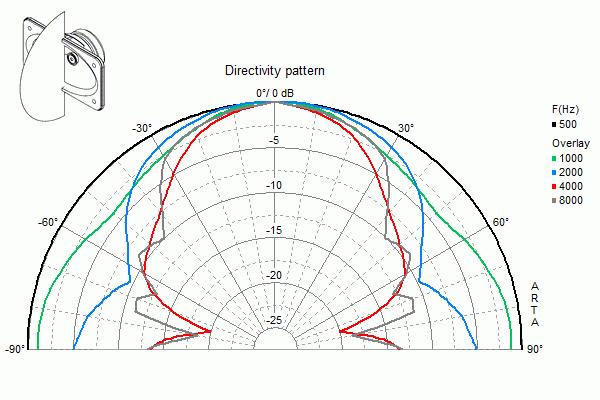

WL 13 P · 100 V · part 50321 — Product photo Product photo WL 13 P · 100 V · part 50321 — Dimension drawing Dimension drawing WL 13 P · 100 V · part 50321 — Frequency response Frequency response WL 13 P · 100 V · part 50321 — Horizontal directivity Horizontal directivity WL 13 P · 100 V · part 50321 — Vertical directivity Vertical directivity

Product photographs and manufacturer drawings. Images are not to scale.

WL 13 P · 100 V · part 50321 — Product photo

Product photo

Open original image

Quantity discounts

Part number: 50321

A white plastic wall speaker for 100 V announcements and background music.

Type
Wall speaker
Connection
100 V
Power / taps
6 W/3 W/1.5 W
Frequency range
90–16000 Hz
Finish
White, similar to RAL 9010
Volume control
No local control
£49.95 Business price, ex VAT £59.94 inc VAT at 20%
Maximum quantity available reached.

Description

The WL 13 P places a full-range driver behind a metal grille in a shallow plastic cabinet. The transformer provides 6 W, 3 W and 1.5 W settings for balancing coverage across a distributed system. This version has no local volume knob.

Typical applications

  • Announcements in public and commercial interiors
  • Background music in schools, hotels and waiting areas
Full specifications
WL 13 P · 100 V
Frequency response (−10 dB)90–16000 Hz
Mean sound pressure level88 dB (1 W/1 m)
Opening angle (-6 dB)74°/4000 Hz hor. / 67°/4000 Hz vert.
Net weight1.15 kg
Transformer matching6 W/3 W/1.5 W
Sound pressure level94 dB (1 W/1 m)@ 5312 Hz
Max. sound pressure level96 dB (6 W/1 m)
ConnectionsSpring terminals
Sensitivity (700–7000 Hz)90 dB (1 W/1 m;700–7000 Hz)
Temperature range0 to 70 °C
ColourWhite, similar to RAL 9010
Cabinet dimensions (W × H × D)280 × 170 × 61 mm

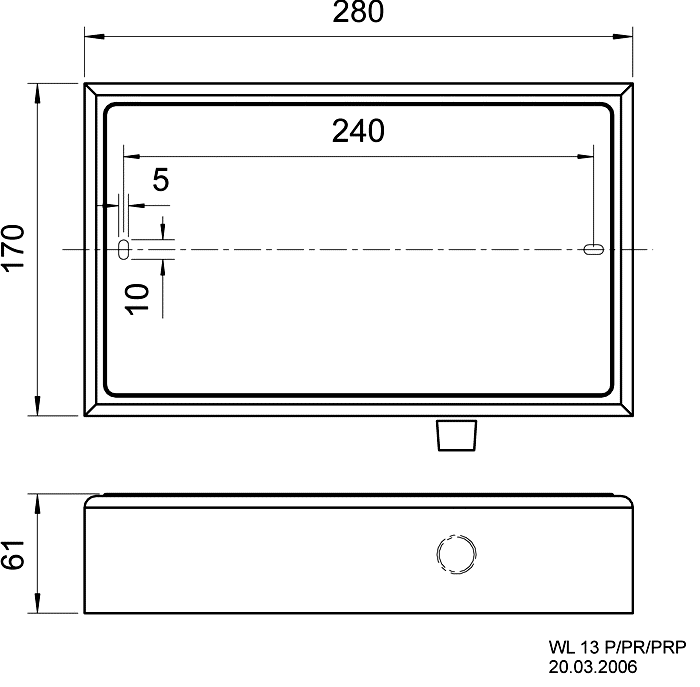

Dimensions and drawings
WL 13 P · 100 V · part 50321 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Use the mounting drawing to position the wall fixings; the cabinet measures 280 × 170 × 61 mm. Check the support and fixing arrangement before mounting. For columns or open-rafter locations, the separately available RW 13 P rear panel may be needed.

Connect the 100 V line to the spring terminals at the selected 6 W, 3 W or 1.5 W tap, maintaining polarity. Select the tap with the amplifier switched off.

Route the cable without trapping it against the cabinet or mounting surface. Include this speaker’s selected tap in the total load calculation for the 100 V amplifier.
