Visaton WL 13 N 100 V, Wall Speaker
Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The WL 13 N places a full-range driver behind a metal grille in a shallow wooden cabinet. The transformer provides 6 W, 3 W and 1.5 W settings for balancing coverage across a distributed system. This version has no local volume knob.
Typical applications
- Announcements in public and commercial interiors
- Background music in schools, hotels and waiting areas
Full specifications

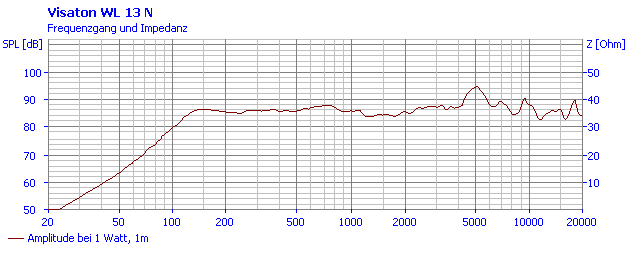

| Frequency response (−10 dB) | 90–20000 Hz |
|---|---|
| Mean sound pressure level | 88 dB (1 W/1 m) |

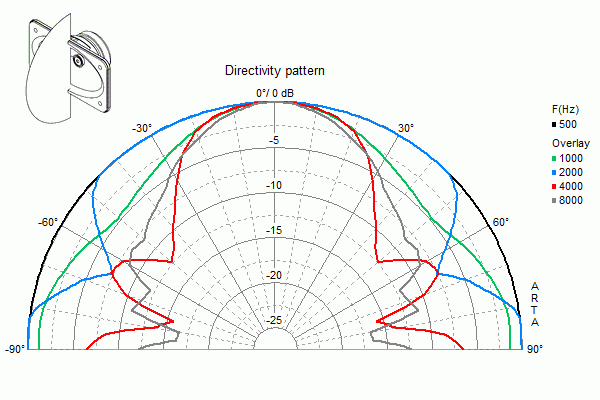

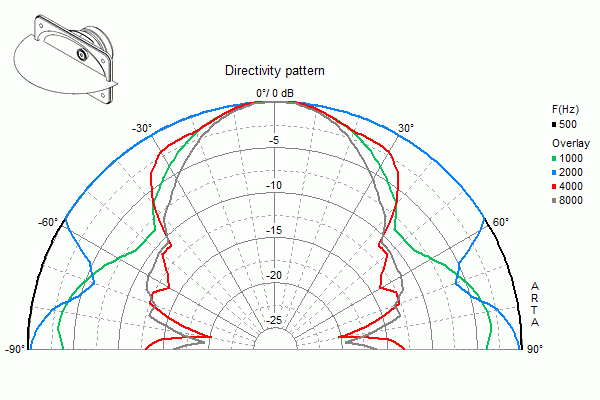

| Opening angle (-6 dB) | 79°/4000 Hz hor. / 61°/4000 Hz vert. |
| Net weight | 1.4 kg |
| Transformer matching | 6 W/3 W/1.5 W |
| Sound pressure level | 96 dB (1 W/1 m)@ 4954 Hz |
| Max. sound pressure level | 96 dB (6 W/1 m) |
| Colour | White, RAL 9010 |
| Connections | Spring terminals |
| Temperature range | –25 to 70 °C |
| Cabinet dimensions (W × H × D) | 280 × 170 × 65 mm |

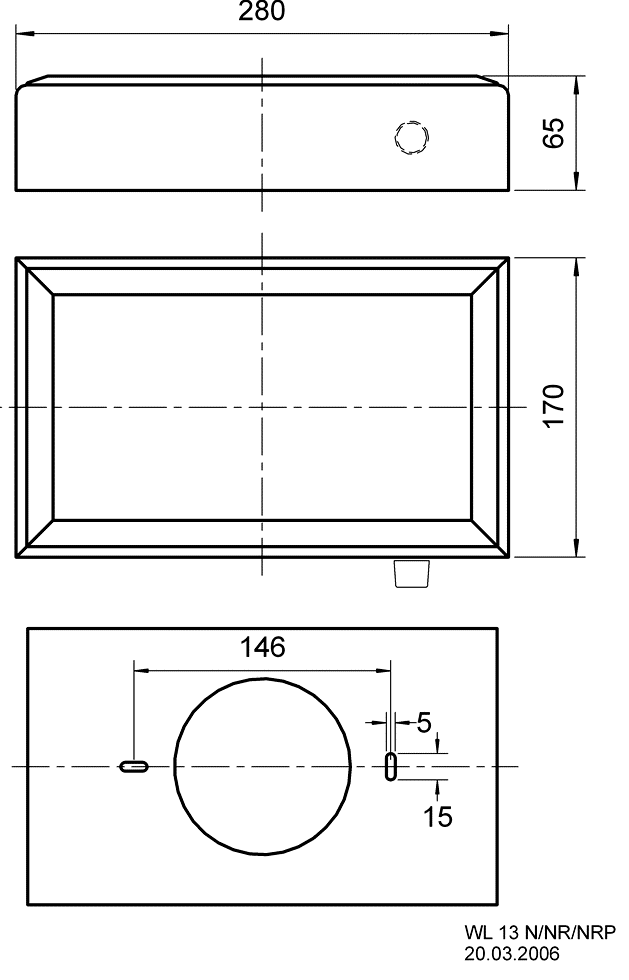

Dimensions and drawings

Dimension drawing · Open original image
Installation and cabinet guidance
Remove the rear panel to position the two wall fixings. Check the 280 × 170 × 65 mm cabinet dimensions and use fixings suitable for the wall and the speaker weight.
Connect the 100 V line to the spring terminals at the selected 6 W, 3 W or 1.5 W tap, maintaining polarity. Select the tap with the amplifier switched off.
Route the cable without trapping it against the cabinet or mounting surface. Include this speaker’s selected tap in the total load calculation for the 100 V amplifier.
