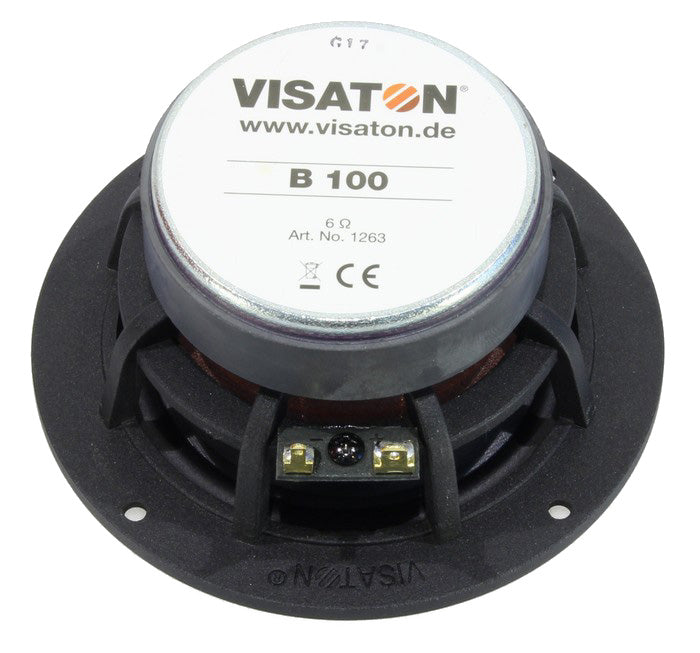

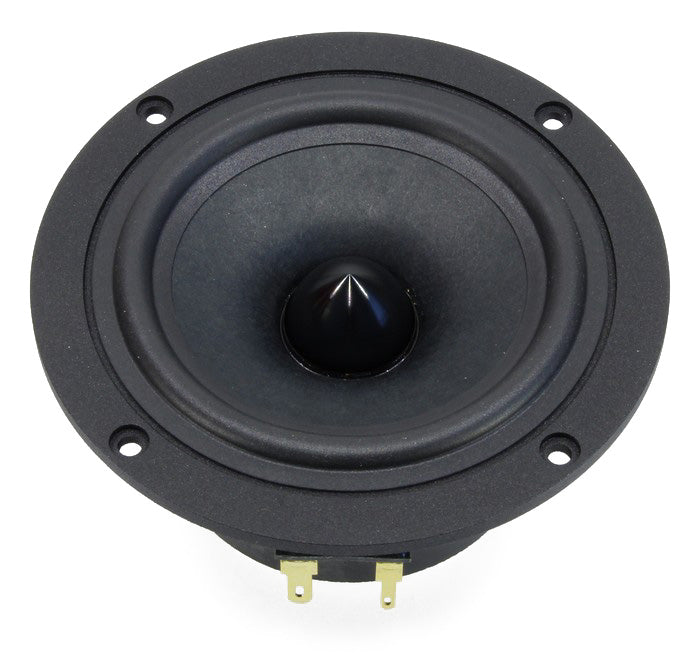

Visaton B 100, 6 Ohm, 4 Inch - High End Full Range Loudspeaker

Product Description

10 cm (4") high-end full-range loudspeaker with excellent balanced response characteristics and slightly increasing high-range for a pleasant sound even outside of 0-axis. High efficiency with low distortion are just some of the qualities of this speaker.

Attributes

  • Paper membrane
  • Impedance control ring (aluminum)
  • Aluminum die cast basket
  • Phaseplug



Recommended Cabinets

Volume/Principle BR-Channel fb fc/QTC
5,8 l / closed - - 107 Hz/0,71
11 l / bass reflex 1 x BR 19.24 (length 9 cm) 60 Hz -









ex VAT
£83.94 inc VAT
Maximum quantity available reached.

Product Specifications
