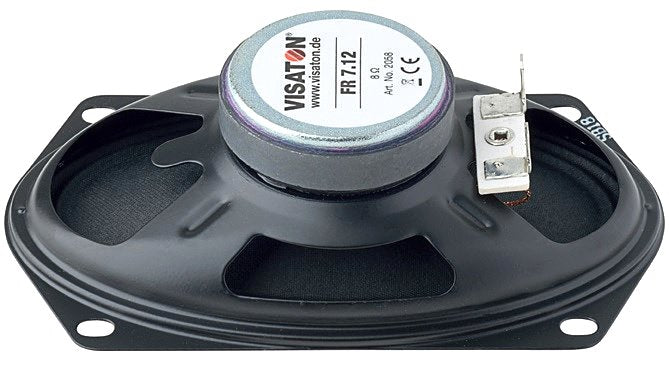

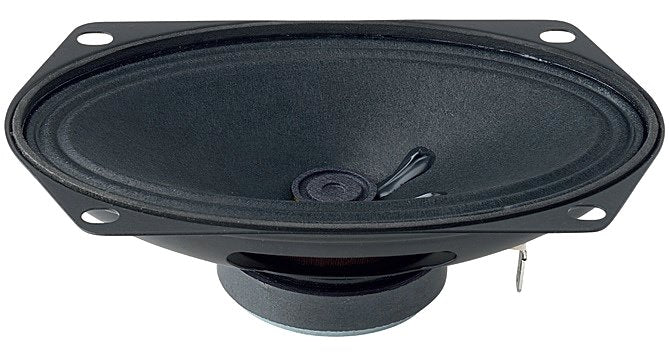

Visaton FR 7.12 8 Ohm, 2.8 x 4.7 Inch, Full Range Oval Speaker

Part number: 2058

An oval full-range driver with 90 dB sensitivity for speech reproduction in compact built-in audio systems.

Nominal size
7 × 12 cm / 2.8 × 4.7 inch
Impedance
8 Ω
Rated power
10 W
Cut-out
66 x 119 mm (oval)
Sensitivity
90 dB (1 W/1 m)
Resonance
235 Hz
ex VAT
£16.74 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The narrow oval format is useful where a round driver would take up too much panel width. Its 90 dB sensitivity suits speech reproduction in compact equipment and built-in audio systems.

Typical applications

  • Built-in speech reproduction
  • Compact voice loudspeakers
Full specifications
FR 7.12 · 8 Ω
Rated power10 W
Nominal impedance8 Ω
Frequency response (−10 dB)150-18000 Hz
Mean sound pressure level90 dB (1 W/1 m)
Resonance frequency fs235 Hz
Voice coil diameter15 mm Ø
Height of winding5 mm
Cut-out66 x 119 mm (oval)
Net weight0.28 kg
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Temperature range–25 to 70 °C
Dimensions and drawings

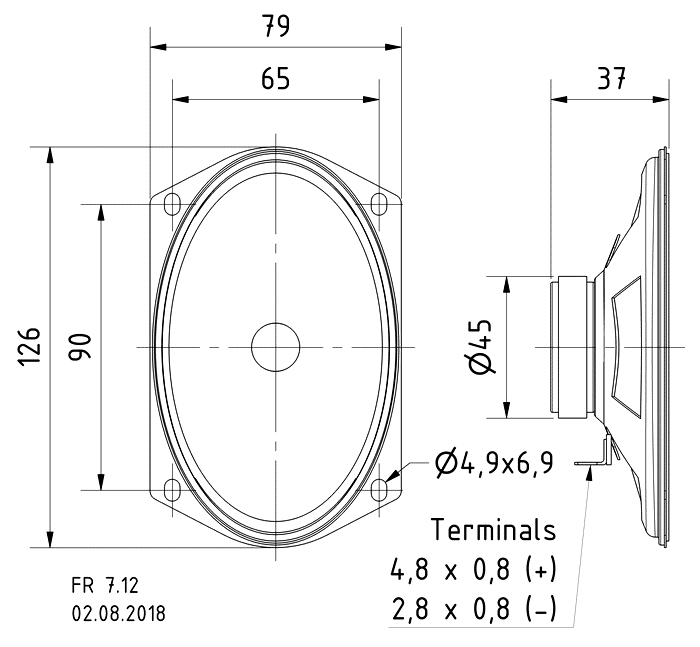

FR 7.12 · 8 Ω · part 2058 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for a 66 × 119 mm oval panel opening and a 79 × 126 mm frame. Leave at least the 37 mm speaker depth behind the panel, plus space for the terminals and wiring. Align the four fixing slots before drilling.

Use an amplifier suitable for the 8 Ω load and observe terminal polarity. For a 100 V line system, connect through a suitable line transformer; do not connect the driver directly to the line.
