Visaton FRS 5 XWP 8 Ohm, 2 Inch, Waterproof Full Range Speaker

FRS 5 XWP · 8 Ω · part 2236 — Product photo

Product photo · Enlarge image

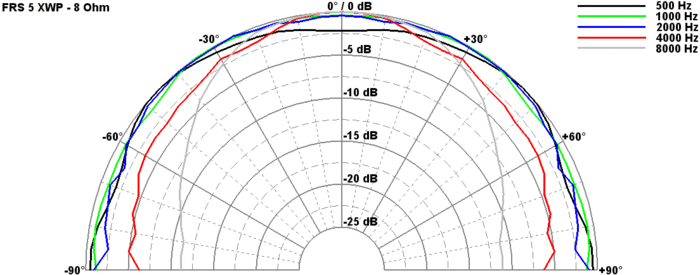

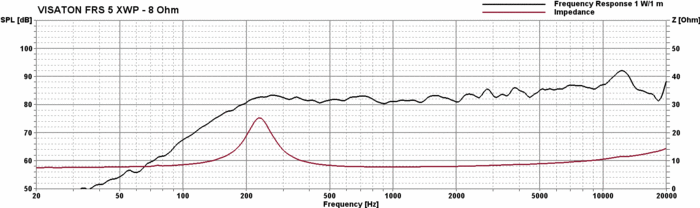

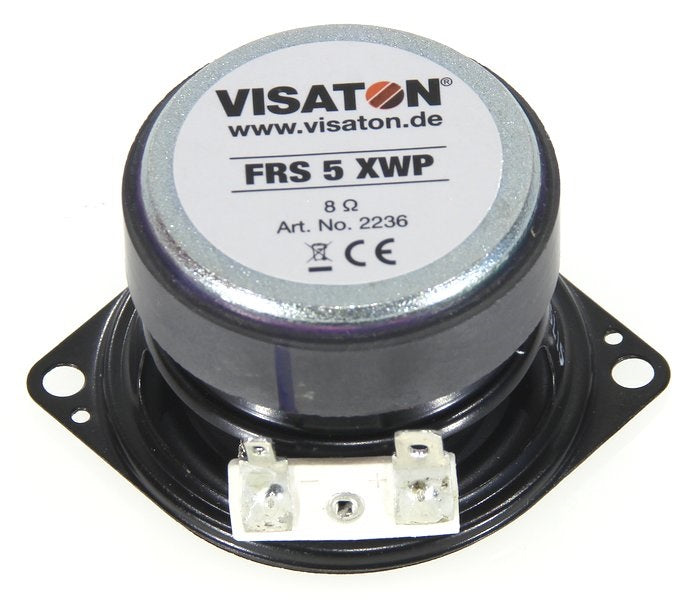

FRS 5 XWP · 8 Ω · part 2236 — Product photo Product photo FRS 5 XWP · 8 Ω · part 2236 — Rear view and connections Rear view and connections FRS 5 XWP · 8 Ω · part 2236 — Dimension drawing Dimension drawing FRS 5 XWP · 8 Ω · part 2236 — Response and impedance Response and impedance FRS 5 XWP · 8 Ω · part 2236 — Directivity pattern Directivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

FRS 5 XWP · 8 Ω · part 2236 — Product photo

Product photo

Open original image
Part number: 2236

A 5 cm full-range speaker with a non-corroding metal basket and two fixing lugs for hi-fi and PA systems.

Nominal size
5 cm / 2 inch
Impedance
8 Ω
Rated power
5 W
Protection
IP65 / IP67 — front side in a sealed enclosure
Sensitivity
86 dB (1 W/1 m)
Resonance
190 Hz
ex VAT
£15.54 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The FRS 5 XWP is a slim 5 cm full-range speaker with a black metal basket, and its low resonance takes the response down to 120 Hz. This waterproof version has a PET cone, Mylar dust cap and rubber gasket, rated IP65 and IP67 at the front when built into a sealed enclosure. The UV-resistant 8 Ω unit handles 5 W and gives 86 dB (1 W/1 m).

Typical applications

  • Hi-fi, small PA and 100 V PA speaker systems
  • Control speaker in electronic devices
Full specifications
FRS 5 XWP · 8 Ω
Rated power5 W
Nominal impedance8 Ω
Frequency response (−10 dB)120–20000 Hz
Mean sound pressure level86 dB (1 W/1 m)
Resonance frequency fs190 Hz
Net weight0.14 kg
D.C. resistance Rdc7.9 Ω
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Protective systemIP65 / IP67 — front side in a sealed enclosure
Temperature range−25 to 70 °C
Environmental attributesRubber gasket; waterproof version with PET cone and Mylar dust cap; UV-resistant; non-corroding metal basket
Dimensions and drawings

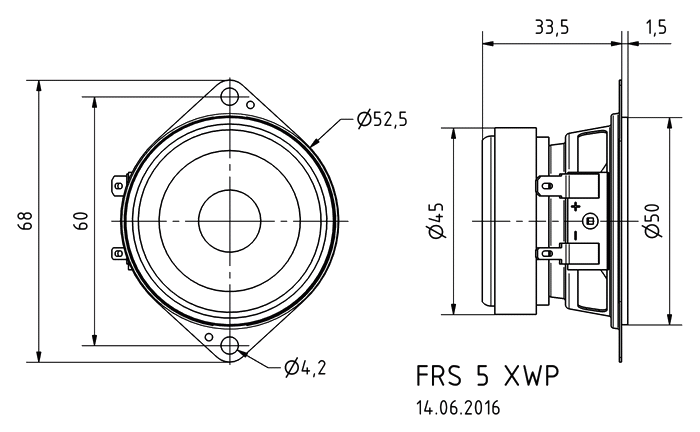

FRS 5 XWP · 8 Ω · part 2236 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

No cut-out is published for this driver: the round frame is 52.5 mm in diameter and carries two diagonally opposed fixing lugs, 68 mm overall, with 4.2 mm holes 60 mm apart. Size the opening from the unit itself and leave a flat, clear seating for both lugs. Behind the 1.5 mm flange allow about 33.5 mm for the body and its 45 mm magnet, plus room for the terminals and the wiring.

The IP65 and IP67 protection applies to the front of the driver only, and only when it is built into a sealed enclosure; the rear is open to the enclosure. Compress the fitted rubber gasket evenly against a flat panel and protect the rear from water and dust; bonding the driver in and fitting a front cover or grille may be needed to complete the protection. Fit the gasket dry, tighten the fixings evenly so the frame is not distorted, and run the cable so that water cannot track along it into the enclosure. Operating temperature range −25 to 70 °C.

Connect to the 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors and observe polarity; the blades differ in width, so the wider blade identifies the positive. Use an amplifier suitable for the 8 Ω load and keep the drive within the 5 W rating. For a 100 V PA system, connect through a suitable line transformer; do not connect the driver directly to the line.
