Visaton FX 16 WP 4 Ohm, 6.5 Inch, Waterproof Coaxial Speaker (Pair)

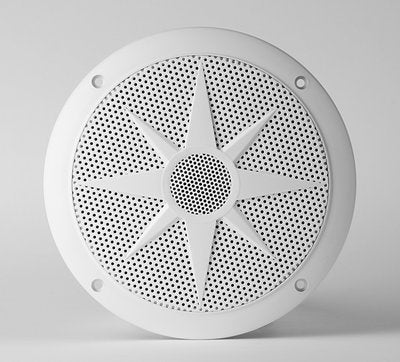

FX 16 WP · 4 Ω · part 2146 — Product photo

Product photo · Enlarge image

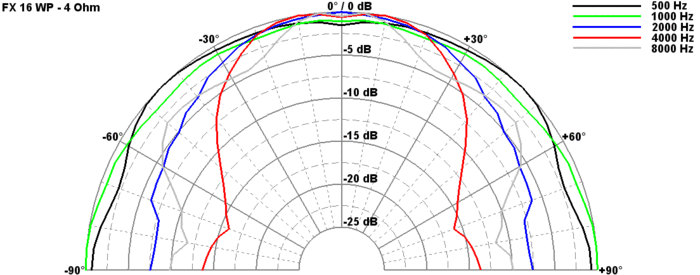

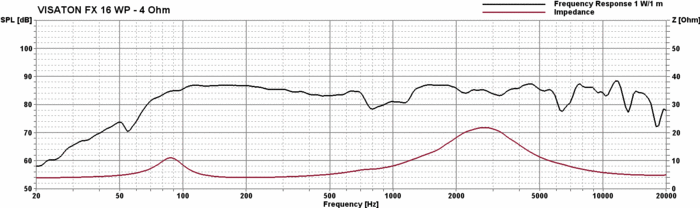

FX 16 WP · 4 Ω · part 2146 — Product photo Product photo FX 16 WP · 4 Ω · part 2146 — Dimension drawing Dimension drawing FX 16 WP · 4 Ω · part 2146 — Response and impedance Response and impedance FX 16 WP · 4 Ω · part 2146 — Directivity pattern Directivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

FX 16 WP · 4 Ω · part 2146 — Product photo

Product photo

Open original image
Part number: 2146

A white, saltwater-resistant 16 cm two-way coaxial speaker for outdoor PA, boats and ships, supplied as a pair.

Nominal size
16 cm / 6.5 inch
Impedance
4 Ω
Rated power
80 W
Cut-out
142 mm
Sensitivity
86 dB (1 W/1 m)
Resonance
85 Hz
ex VAT
£106.74 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The FX 16 WP is a saltwater-resistant two-way coaxial speaker with a moulded plastic cone, basket and grille, and a central tweeter in its compass-rose grille. It is corrosion-resistant and waterproof thanks to the encased magnet and silicone-coated leads, and rated IP65 at the front when built into a sealed enclosure. This white 4 Ω speaker handles 80 W and comes as a pair with gasket and mounting template.

Typical applications

  • Outdoor PA systems
  • Loudspeaker for boats and ships
Full specifications
FX 16 WP · 4 Ω
Rated power80 W
Maximum power100 W
Nominal impedance4 Ω
Frequency response (−10 dB)60–20000 Hz
Mean sound pressure level86 dB (1 W/1 m)
Resonance frequency fs85 Hz
Height of front pole-plate4 mm
Voice coil diameter25 mm
Height of winding7 mm
Cut-out142 mm
Net weight0.46 kg
ColourWhite (similar to RAL 9003)
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Protective systemIP65 — front side in a sealed enclosure
Temperature range−40 to 80 °C
Low-temperature testEN 60068-2-1: −40 °C for 96 hours
Low-temperature requirementsGermanischer Lloyd (requirements for electrical equipment)
PlasticASA (UL 94 HB; UV- and weather-resistant)
PackPair, supplied with gasket and mounting template
Dimensions and drawings

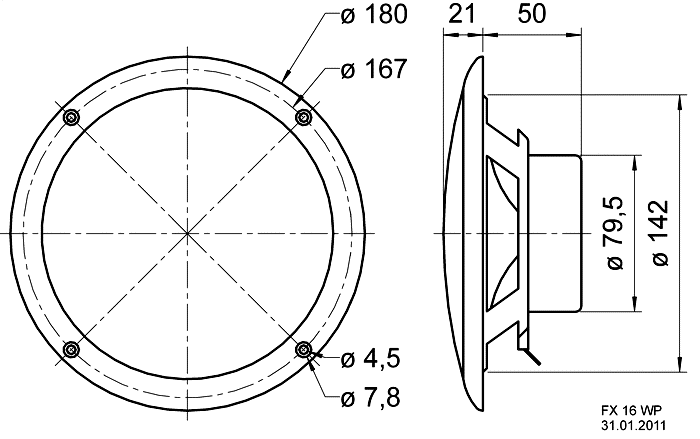

FX 16 WP · 4 Ω · part 2146 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for a 142 mm panel opening. The round flange is 180 mm in diameter with four 4.5 mm fixing holes, countersunk to 7.8 mm, on a 167 mm circle; mark them from the unit itself rather than assuming the spacing. Behind the panel allow about 50 mm for the 142 mm basket and its 79.5 mm magnet cup, plus room for the terminals and the wiring; the domed grille stands about 21 mm proud of the panel, so allow for that behind any fascia or trim. A mounting template and a gasket are supplied with the pair; use the template to set out the opening and the fixings.

The IP65 protection applies to the front of the speaker only, and only when it is built into a sealed enclosure; the rear is open to the enclosure. Fit the supplied gasket between the flange and the panel and protect the rear from water and dust; bonding the speaker in and fitting a front cover or grille may be needed to complete the protection. Fit the gasket dry and tighten the fixings evenly so the flange is not distorted. Run the cable so that water cannot track along it into the enclosure, and leave a drip loop where it is exposed. Operating temperature range −40 to 80 °C.

Connect to the 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors and observe polarity; the blades differ in width, so the wider blade identifies the positive. Use an amplifier suitable for the 4 Ω load and keep the drive within the 80 W rating (100 W maximum). For a 100 V line system, connect through a suitable line transformer; do not connect the speaker directly to the line.

Supplied as a pair. The tweeter sits at the centre of the compass-rose grille, and each speaker connects to the amplifier through its single pair of terminals as a 4 Ω unit; plan both cable runs before you cut the openings.
