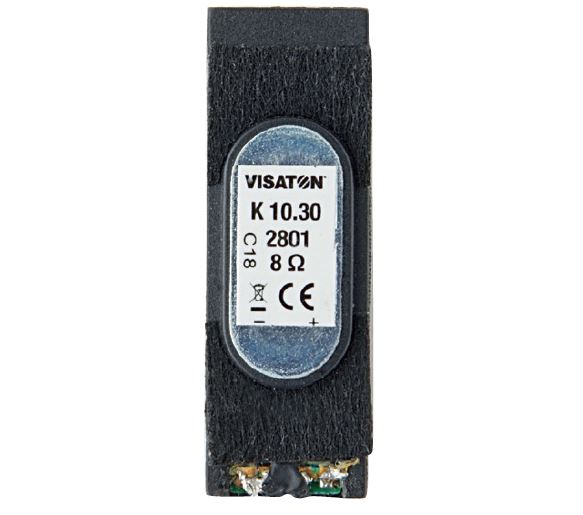

Visaton K 10.30 8 Ohm, 0.4 x 1.2 Inch, Miniature Speaker

Part number: 2801

A 1 x 3 cm oval miniature speaker with rear solder pads for signal and speech output in very confined spaces.

Nominal size
1 × 3 cm / 0.39 × 1.2 inch
Impedance
8 Ω
Rated power
0.5 W
Weight
2.5 g
Sensitivity
85 dB (0.1 W/0.1 m)
Resonance
1200 Hz
ex VAT
£5.94 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The K 10.30 is a slim oval miniature speaker with a plastic basket and a coated fabric cone, made for signal and speech output where there is very little room. The 8 Ω unit handles 0.5 W rated power, weighs 2.5 g and connects through solder pads on the rear.

Typical applications

  • Signal and speech output in compact devices
  • Very small equipment
Full specifications
K 10.30 · 8 Ω
Rated power0.5 W
Maximum power1 W
Nominal impedance8 Ω

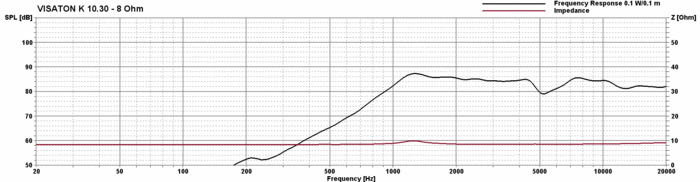

Frequency response (−10 dB)750-20000 Hz
Mean sound pressure level85 dB (0.1 W/0.1 m)
Resonance frequency fs1200 Hz
Net weight2.5 g
TerminalsSolder joints
Dimensions and drawings

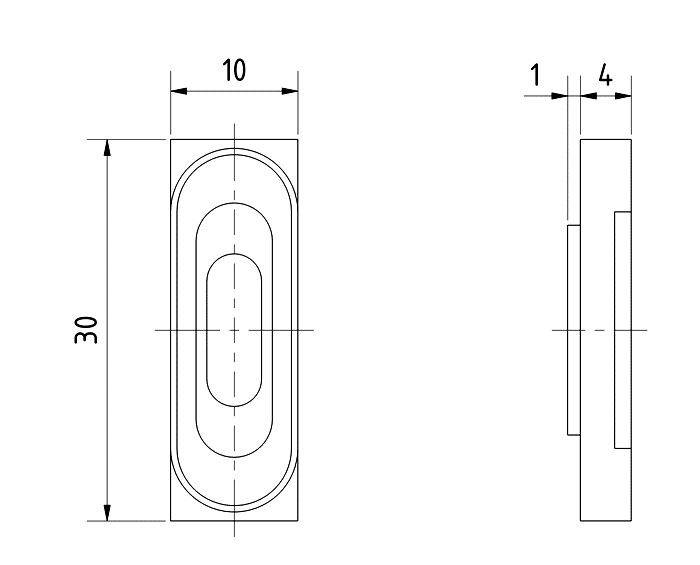

K 10.30 · 8 Ω · part 2801 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for the 10 x 30 mm frame and about 5 mm overall depth, plus clearance for the rear solder pads and wiring. Support the frame evenly and keep adhesive or fixings clear of the cone.

Solder to the rear pads with a fine iron and observe polarity. Drive it from an amplifier or output stage suitable for the 8 Ω load and keep the drive within the 0.5 W rating.
