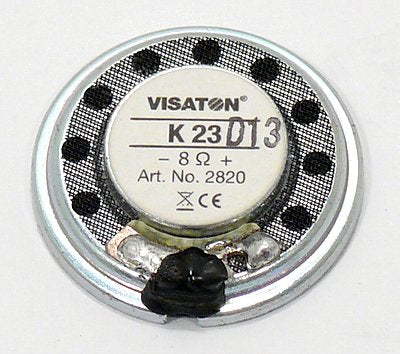

Visaton K 23 8 Ohm, 0.9 Inch, Miniature Speaker

Part number: 2820

A 2.3 cm miniature speaker with a Mylar diaphragm and metal basket for signal output in compact equipment.

Nominal size
2.3 cm / 0.9 inch
Impedance
8 Ω
Rated power
0.3 W
Cut-out
21 mm
Sensitivity
79 dB (1 W/1 m)
Resonance
750 Hz
ex VAT
£4.74 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The K 23 is a round 2.3 cm miniature speaker with a Mylar diaphragm and a metal basket, made for signal output in equipment where space is tight. The 8 Ω unit handles 0.3 W rated power, weighs 4 g and connects through soldering points on the rear. Its IP64 front-side protection applies when it is built into a sealed enclosure.

Typical applications

  • Signal output in compact equipment
  • Electronic instruments
Full specifications
K 23 · 8 Ω
Rated power0.3 W
Maximum power0.5 W
Nominal impedance8 Ω
Frequency response (−10 dB)420–20000 Hz
Mean sound pressure level79 dB (1 W/1 m)
Resonance frequency fs750 Hz
Voice coil diameter10.4 mm
Height of winding1.5 mm
Cut-out21 mm
Net weight0.004 kg
TerminalsSolder joints
Protective systemIP64 — front side in a sealed enclosure
Temperature range–25 to 70 °C
Dimensions and drawings

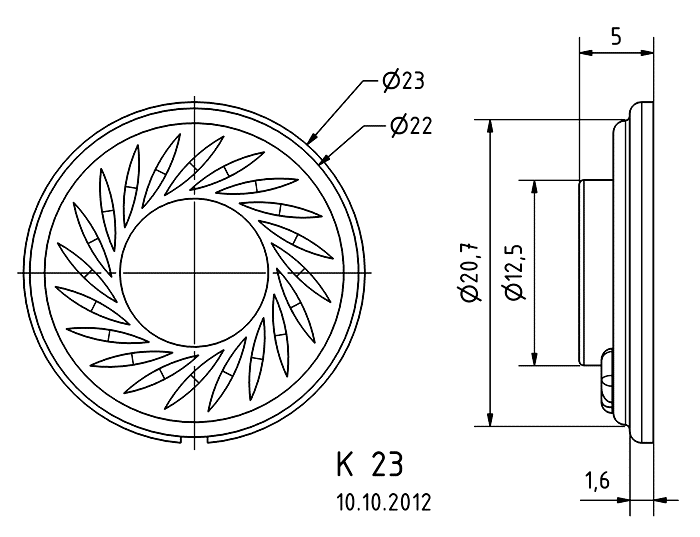

K 23 · 8 Ω · part 2820 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for a 21 mm opening and the 23 mm basket, with about 5 mm behind the panel for the body and solder points. Support the basket evenly; bonding to the panel may be needed for the front-side sealing.

Solder to the rear points with a fine iron and observe polarity. Use an output stage suitable for the 8 Ω load and keep the drive within the 0.3 W rating.
