Visaton K 36 WP 8 Ohm, 1.4 Inch, Waterproof Speaker

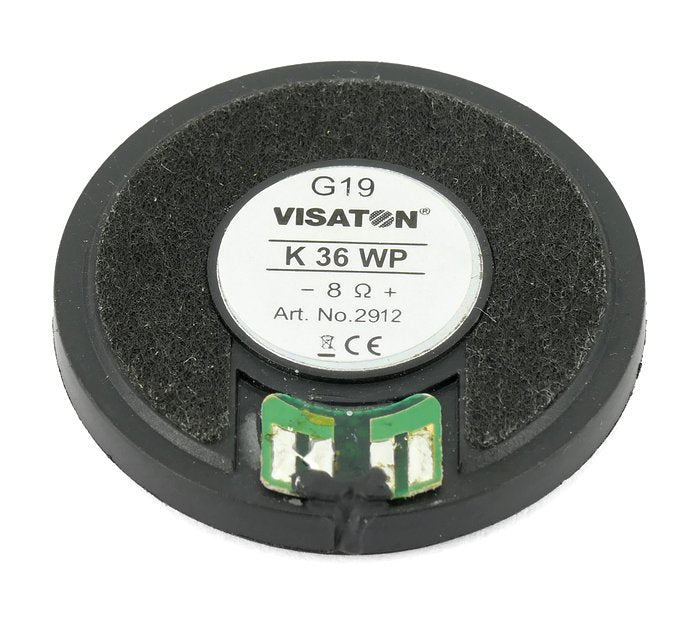

K 36 WP · 8 Ω · part 2912 — Product photo

Product photo · Enlarge image

K 36 WP · 8 Ω · part 2912 — Product photoProduct photo K 36 WP · 8 Ω · part 2912 — Rear view and connectionsRear view and connections K 36 WP · 8 Ω · part 2912 — Dimension drawingDimension drawing K 36 WP · 8 Ω · part 2912 — Response and impedanceResponse and impedance K 36 WP · 8 Ω · part 2912 — Directivity patternDirectivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

K 36 WP · 8 Ω · part 2912 — Product photo

Product photo

Open original image
Part number: 2912

A 3.6 cm miniature speaker with a plastic basket and diaphragm for monitoring outdoors and in humid conditions.

Nominal size
3.6 cm / 1.4 inch
Impedance
8 Ω
Rated power
1 W
Cut-out
31 mm
Sensitivity
77 dB (1 W/1 m)
Resonance
550 Hz
ex VAT
£5.94 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The K 36 WP is a 3.6 cm miniature speaker with a plastic basket and diaphragm, giving a balanced response and good voice reproduction. It suits outdoor applications and conditions such as high humidity, and its IP65 protection applies to the front when it is built into a sealed enclosure. This 8 Ω version handles 1 W and is rated for −40 to 70 °C.

Typical applications

  • Monitoring speaker for electronic devices
  • Monitoring speaker for outdoor systems
Full specifications
K 36 WP · 8 Ω
Rated power1 W
Maximum power2 W
Nominal impedance8 Ω
Frequency response (−10 dB)300–20000 Hz
Mean sound pressure level77 dB (1 W/1 m)
Opening angle (-6 dB)180°/4000 Hz
Excursion limit±0.5 mm
Resonance frequency fs550 Hz (the 2023 datasheet gives 600 Hz)
Height of front pole-plate2 mm
Voice coil diameter10 mm
Height of winding2 mm
Cut-out31 mm
Net weight0.006 kg
TerminalsSolder joints
Protective systemIP65 — front side in a sealed enclosure
Temperature range−40 to 70 °C
PlasticABS basket (UL 94 HB); Mylar diaphragm
Low-temperature testFunctional at cold to EN 60068-2-1 / EN 50155
Dimensions and drawings

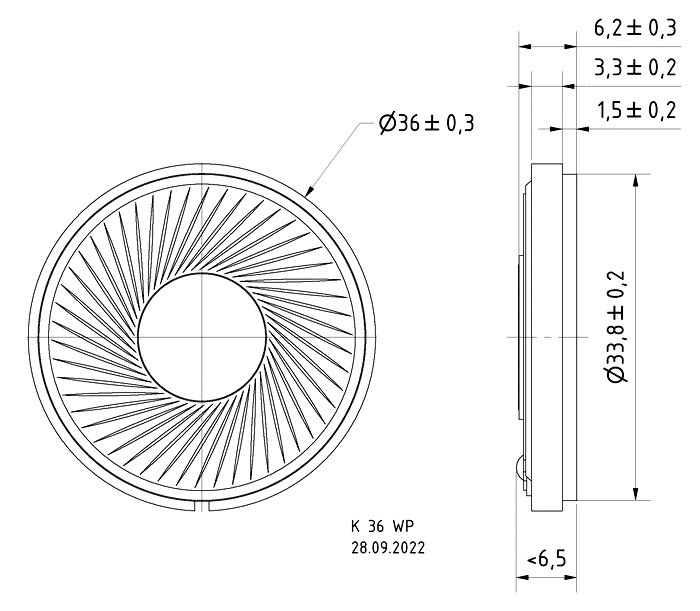

K 36 WP · 8 Ω · part 2912 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for a 31 mm panel opening. The round plastic frame is 36 mm in diameter (33.8 mm behind the flange) and the unit is 6.2 mm deep overall (6.5 mm at most), including the 1.5 mm flange. The frame has no fixing holes, so it is normally bonded or clamped in place; check the method against your enclosure design and keep the clamping even all round. Leave clearance behind the panel for the solder joints and their leads.

The IP65 protection applies to the front of the driver only, and only when it is built into a sealed enclosure; the rear is open to the enclosure. Mount it on a flat panel with a continuous seal around the frame and protect the rear from water and dust; bonding the driver in and fitting a front cover or grille may be needed to complete the protection. Run the cable so that water cannot track along it into the enclosure, and leave a drip loop where it is exposed. Operating temperature range −40 to 70 °C.

Solder to the solder joints on the rear, observe polarity and keep the leads clear of the moving parts. Use a suitable iron and keep the soldering time short so that heat is not conducted into the driver. Support the leads so that they cannot pull on the joints. Use an amplifier suitable for the 8 Ω load and keep the drive within the 1 W rating (2 W maximum).

This is the 8 Ω version; the 50 Ω version is part 2913. Check the impedance against the amplifier and the installation before ordering.
