Visaton K 50 WP 8 Ohm, 2 Inch, Waterproof Speaker

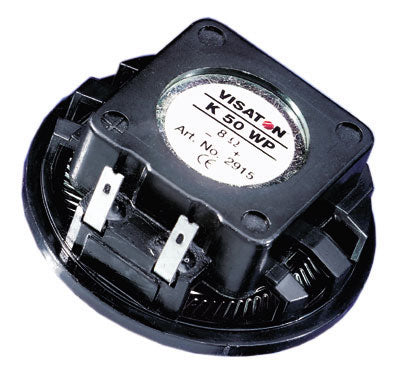

K 50 WP · 8 Ω · part 2915 — Product photo (shared by the 8 Ω, 16 Ω and 50 Ω versions)

Product photo (shared by the 8 Ω, 16 Ω and 50 Ω versions) · Enlarge image

K 50 WP · 8 Ω · part 2915 — Product photo (shared by the 8 Ω, 16 Ω and 50 Ω versions)Product photo (shared by the 8 Ω, 16 Ω and 50 Ω versions) K 50 WP · 8 Ω · part 2915 — Rear view and connectionsRear view and connections K 50 WP · 8 Ω · part 2915 — Dimension drawingDimension drawing K 50 WP · 8 Ω · part 2915 — Response and impedanceResponse and impedance K 50 WP · 8 Ω · part 2915 — Directivity patternDirectivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

K 50 WP · 8 Ω · part 2915 — Product photo (shared by the 8 Ω, 16 Ω and 50 Ω versions)

Product photo (shared by the 8 Ω, 16 Ω and 50 Ω versions)

Open original image
Part number: 2915

A 5 cm miniature speaker with a plastic basket and diaphragm for monitoring outdoors and in humid conditions.

Nominal size
5 cm / 2 inch
Impedance
8 Ω
Rated power
2 W
Cut-out
46 mm
Sensitivity
84 dB (1 W/1 m)
Resonance
300 Hz
ex VAT
£7.14 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The K 50 WP is a 5 cm miniature speaker with a plastic basket and diaphragm, giving a broad response and good voice reproduction. It is weather-resistant and UV-resistant for outdoor use and high humidity, and its IP65 protection applies to the front when it is built into a sealed enclosure. This 8 Ω version handles 2 W and is rated for −40 to 80 °C.

Typical applications

  • Monitoring speaker for electronic devices
  • Monitoring speaker for outdoor systems
Full specifications
K 50 WP · 8 Ω
Rated power2 W
Maximum power3 W
Nominal impedance8 Ω
Frequency response (−10 dB)180–17000 Hz
Mean sound pressure level84 dB (1 W/1 m)
Opening angle (-6 dB)180°/4000 Hz
Excursion limit±1 mm
Resonance frequency fs300 Hz
Height of front pole-plate2 mm
Voice coil diameter10 mm
Height of winding2.5 mm
Cut-out46 mm
Net weight0.048 kg
Terminals2.8 x 0.5 mm (+)/2.8 x 0.5 mm (-)
Protective systemIP65 — front side in a sealed enclosure
Temperature range−40 to 80 °C
PlasticABS basket (UL 94 HB); Mylar diaphragm
Environmental attributesWeather-resistant, UV-resistant
Low-temperature testFunctional at cold to EN 60068-2-1 / EN 50155
Dimensions and drawings

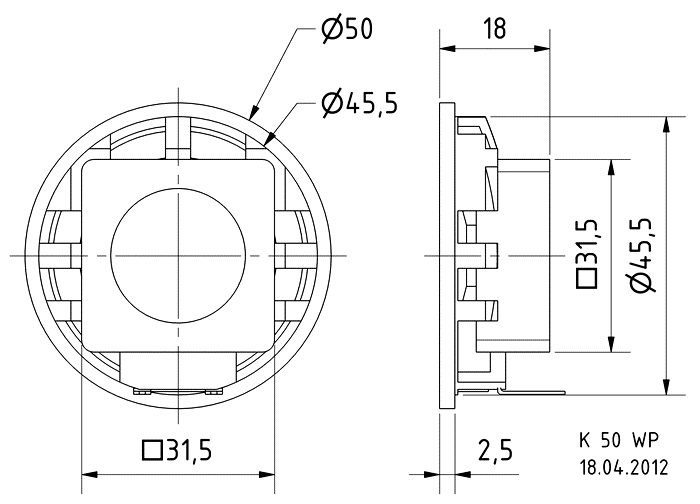

K 50 WP · 8 Ω · part 2915 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for a 46 mm panel opening. The round plastic frame is 50 mm in diameter (45.5 mm behind the flange), with a 31.5 mm square magnet housing; the unit is 18 mm deep overall including the 2.5 mm flange, and the blade terminals point to the rear. The frame has no fixing holes, so it is normally bonded or clamped in place; check the method against your enclosure design and keep the clamping even all round. Leave clearance behind the panel for the terminals and their push-on connectors.

The IP65 protection applies to the front of the driver only, and only when it is built into a sealed enclosure; the rear is open to the enclosure. Mount it on a flat panel with a continuous seal around the frame and protect the rear from water and dust; bonding the driver in and fitting a front cover or grille may be needed to complete the protection. Run the cable so that water cannot track along it into the enclosure, and leave a drip loop where it is exposed. Operating temperature range −40 to 80 °C.

Connect to the 2.8 x 0.5 mm (+)/2.8 x 0.5 mm (-) blade terminals with matching push-on connectors; both blades are the same size, so follow the + and - marks on the rear label. Keep the leads clear of the moving parts and support them so that they cannot pull on the terminals. Use an amplifier suitable for the 8 Ω load and keep the drive within the 2 W rating (3 W maximum).

This is the 8 Ω version; the 16 Ω version is part 2917 and the 50 Ω version part 2916. The K 50 WPT (part 2930) shares the same technical data but has terminals that project beyond the frame edge instead of pointing to the rear. Check the impedance against the amplifier and the installation before ordering.
