Part number 2846 · 8 Ω

K 40 SQ - 8 Ω

4 cm (1.6") miniature speaker with plastic diaphragm (Mylar) and metal basket. Thanks to its compact dimensions, suitable for signal output in machines and other equipment where space is at a premium.

Speaker type

Full-range drivers

Nominal speaker size

4 cm

Frame (W × H)

40 × 40 mm

Overall body depth

11.5 mm

Rear mounting depth

10 mm

Cut-out

35 mm

Rated power

0.5 W

Front protection rating

IP65 / IP67 — front side only when built into a sealed enclosure; bonding and a front grille may be needed

Specialist / product-specific mounting

Part number 2846 · 8 Ω

K 40 SQ-FL - 8 Ω

A very flat 4 cm, 8 Ω miniature speaker for signal output where installation depth is limited.

Speaker type

Full-range drivers

Nominal speaker size

4 cm

Frame (W × H)

40 × 40 mm

Overall body depth

4.5 mm

Rear mounting depth

2.9 mm

Cut-out

36 mm

Rated power

0.3 W

Front protection rating

IP65 — front side only when built into a sealed enclosure

Specialist / product-specific mounting

Part number 2849 · 8 Ω

K 45

A 4.5 cm miniature speaker with a Mylar diaphragm and metal basket for signal output in machines and equipment.

Speaker type

Full-range drivers

Nominal speaker size

4.5 cm / 1.8 inch

Frame (W × H)

45 × 45 mm

Overall body depth

18 mm

Cut-out

41.5 mm

Rated power

1 W

Specialist / product-specific mounting

Part number 2900 · 4 Ω

K 50

A 5 cm (2 inch) 4 Ω miniature speaker with a plastic diaphragm and metal basket for voice and signal output where space is limited.

Speaker type

Full-range drivers

Nominal speaker size

5 cm / 2 inch

Frame (W × H)

50 × 50 mm

Overall body depth

17 mm

Cut-out

45 mm

Rated power

2 W

Front protection rating

IP65 — front side in a sealed enclosure

Specialist / product-specific mounting

Part number 2899 · 50 Ω

K 50

A 5 cm miniature speaker with a Mylar diaphragm and metal basket for voice and signal output in machines.

Speaker type

Full-range drivers

Nominal speaker size

5 cm / 2 inch

Frame (W × H)

50 × 50 mm

Overall body depth

17 mm

Cut-out

45 mm

Rated power

2 W

Front protection rating

IP65 — front side in a sealed enclosure

Specialist / product-specific mounting

Part number 2901 · 8 Ω

K 50

A 5 cm miniature speaker with a Mylar diaphragm and metal basket for voice and signal output in machines.

Speaker type

Full-range drivers

Nominal speaker size

5 cm / 2 inch

Frame (W × H)

50 × 50 mm

Overall body depth

17 mm

Cut-out

45 mm

Rated power

2 W

Front protection rating

IP65 — front side in a sealed enclosure

Rim / bonded mounting

Part number 2949 · 16 Ω

K 50 FL

A flat 5 cm miniature speaker with clear speech reproduction for machines and outdoor equipment.

Speaker type

Full-range drivers

Nominal speaker size

5 cm / 2 inch

Frame (W × H)

50 × 50 mm

Overall body depth

7 mm

Cut-out

46 mm

Rated power

1 W

Front protection rating

IP65 — front side in a sealed enclosure

Specialist / product-specific mounting

Part number 2950 · 50 Ω

K 50 FL

A flat 5 cm miniature speaker with clear speech reproduction for machines and outdoor equipment.

Speaker type

Full-range drivers

Nominal speaker size

5 cm / 2 inch

Frame (W × H)

50 × 50 mm

Overall body depth

7 mm

Rear mounting depth

6 mm

Cut-out

46 mm

Rated power

1 W

Front protection rating

IP65 — front side in a sealed enclosure

Rim / bonded mounting

Part number 2948 · 8 Ω

K 50 FL - 8 Ω

A compact 5 cm, 8 Ω miniature speaker with good speech reproduction and front-side IP65 protection when correctly installed.

Speaker type

Full-range drivers

Nominal speaker size

5 cm / 2 inch

Frame (W × H)

50 × 50 mm

Overall body depth

7 mm

Cut-out

46 mm

Rated power

1 W

Front protection rating

IP65 in a sealed enclosure

Specialist / product-specific mounting

Part number 2897 · 8 Ω

K 50 SQ

A 5 cm square miniature speaker with four mounting holes, foam gasket and contact pins for machines and equipment.

Speaker type

Full-range drivers

Nominal speaker size

5 cm / 2 inch

Frame (W × H)

51 × 51 mm

Overall body depth

19 mm

Cut-out

45 mm

Rated power

2 W

Front protection rating

IP65 — front side in a sealed enclosure

Four fixing points

Part number 2917 · 16 Ω

K 50 WP

A 5 cm miniature speaker with a plastic basket and diaphragm for monitoring outdoors and in humid conditions.

Speaker type

Full-range drivers

Nominal speaker size

5 cm / 2 inch

Frame (W × H)

50 × 50 mm

Overall body depth

18 mm

Rear mounting depth

15.5 mm

Cut-out

46 mm

Rated power

2 W

Front protection rating

IP65 — front side in a sealed enclosure

Rim / bonded mounting

Part number 2916 · 50 Ω

K 50 WP

A 5 cm miniature speaker with a plastic basket and diaphragm for monitoring outdoors and in humid conditions.

Speaker type

Full-range drivers

Nominal speaker size

5 cm / 2 inch

Frame (W × H)

50 × 50 mm

Overall body depth

18 mm

Rear mounting depth

15.5 mm

Cut-out

46 mm

Rated power

2 W

Front protection rating

IP65 — front side in a sealed enclosure

Rim / bonded mounting

Part number 2915 · 8 Ω

K 50 WP

A 5 cm miniature speaker with a plastic basket and diaphragm for monitoring outdoors and in humid conditions.

Speaker type

Full-range drivers

Nominal speaker size

5 cm / 2 inch

Frame (W × H)

50 × 50 mm

Overall body depth

18 mm

Rear mounting depth

15.5 mm

Cut-out

46 mm

Rated power

2 W

Front protection rating

IP65 — front side in a sealed enclosure

Rim / bonded mounting

Part number 2930 · 8 Ω

K 50 WPT

A 5 cm miniature speaker with outward-facing terminals, a plastic basket and diaphragm, for monitoring outdoors and in humid conditions.

Speaker type

Full-range drivers

Nominal speaker size

5 cm / 2 inch

Frame (W × H)

50 × 50 mm

Overall body depth

18 mm

Rear mounting depth

15.5 mm

Cut-out

46 mm

Rated power

2 W

Front protection rating

IP65 — front side in a sealed enclosure

Rim / bonded mounting

Part number 2907 · 8 Ω

K 57 C

A 5.7 cm miniature speaker with a waterproofed Mylar membrane for signal output in machines and outdoor equipment.

Speaker type

Full-range drivers

Nominal speaker size

5.7 cm / 2.2 inch

Frame (W × H)

56.9 × 56.9 mm

Overall body depth

16.1 mm

Rear mounting depth

12.9 mm

Rated power

2 W

Front protection rating

IP65 — front side in a sealed enclosure

Rim / bonded mounting

Part number 2952 · 8 Ω

K 57 FL

A very flat 5.7 cm miniature speaker with a metal basket for equipment with limited installation depth.

Speaker type

Full-range drivers

Nominal speaker size

5.7 cm / 2.2 inch

Frame (W × H)

57 × 57 mm

Overall body depth

8.65 mm

Rear mounting depth

7.95 mm

Cut-out

52 mm

Rated power

1 W

Front protection rating

IP65 — front side in a sealed enclosure

Rim / bonded mounting

Part number 2959 · 8 Ω

K 59 SC

An 8 Ω compact driver with magnetic shielding, a saltwater-resistant cone and a front gasket.

Speaker type

Full-range drivers

Nominal speaker size

5.9 cm

Frame (W × H)

58.5 × 58.5 mm

Overall body depth

20 mm

Rear mounting depth

18.5 mm

Rated power

3 W

Front protection rating

IP67

Specialist / product-specific mounting

Part number 2919 · 50 Ω

K 64 WP

A 6.4 cm full-range speaker with a plastic basket and diaphragm for monitoring outdoors and in humid conditions.

Speaker type

Full-range drivers

Nominal speaker size

6.4 cm / 2.5 inch

Frame (W × H)

64 × 64 mm

Overall body depth

19.3 mm

Rear mounting depth

16.3 mm

Cut-out

60 mm

Rated power

2 W

Front protection rating

IP65 — front side in a sealed enclosure

Part number 2918 · 8 Ω

K 64 WP

A 6.4 cm full-range speaker with a plastic basket and diaphragm for monitoring outdoors and in humid conditions.

Speaker type

Full-range drivers

Nominal speaker size

6.4 cm / 2.5 inch

Frame (W × H)

64 × 64 mm

Overall body depth

19.3 mm

Rear mounting depth

16.3 mm

Cut-out

60 mm

Rated power

2 W

Front protection rating

IP65 — front side in a sealed enclosure

Part number 2921 · 8 Ω

K 64 WPT

A small 8 Ω plastic-cone speaker with the K 64 WPT terminal arrangement.

Speaker type

Full-range drivers

Nominal speaker size

6.4 cm

Frame (W × H)

64 × 64 mm

Overall body depth

19.3 mm

Cut-out

60 mm

Rated power

2 W

Front protection rating

IP65 at front with sealed mounting

Specialist / product-specific mounting

Part number 2973 · 8 Ω

K 70

A 7 cm full-range speaker with a shallow build and high efficiency for confined installations.

Speaker type

Full-range drivers

Nominal speaker size

7 cm / 2.8 inch

Frame (W × H)

70 × 70 mm

Overall body depth

21.7 mm

Rear mounting depth

21 mm

Cut-out

63 mm

Rated power

2 W

Rim / bonded mounting

Part number 2870 · 8 Ω

K 70 WP

A 7 cm full-range speaker with a plastic basket and diaphragm for monitoring outdoors and in humid conditions.

Speaker type

Full-range drivers

Nominal speaker size

7 cm / 2.8 inch

Frame (W × H)

70 × 70 mm

Overall body depth

19 mm

Rear mounting depth

15.6 mm

Cut-out

62 mm

Rated power

2 W

Front protection rating

IP67 — front side in a sealed enclosure

Rim / bonded mounting

Part number 1191 · 8 Ω

KE 25 SC

A magnetically shielded 25 mm ceramic dome tweeter for the treble range in high-end hi-fi speakers.

Speaker type

Tweeters

Nominal speaker size

25 mm / 1 inch

Frame (W × H)

104.5 × 104.5 mm

Rear mounting depth

55 mm

Cut-out

82 mm

Rated power

80 W (12 dB/oct. high-pass from 4000 Hz)

Part number 50344 · 100 V

KL 33 EN - 100 V

33 cm spherical loudspeaker. Equipped with one 17 cm bass/midrange and four midrange/highrange drivers which have a good directivity pattern at off-axis angles and therefore provide a uniform and pleasant sound quality.

Speaker type

Installation / enclosed speakers

Rated power

100 V taps: 12/6/3/1.5 W

Front protection rating

IP44

Specialist / product-specific mounting

Part number 50346 / Visaton KL 33, 100 V-02 · 100 V / 4 Ω

KL 33 MK 2 - 100 V

A 33 cm spherical speaker with one 17 cm bass/midrange driver and four mid/high drivers, for 100 V or 4 Ω connection.

Speaker type

Installation / enclosed speakers

Rated power

50 W at 4 Ω; transformer taps: 12/6/3/1.5 W

Specialist / product-specific mounting

Part number 9070 · 4 Ω

KT 100 V

A compact 10 cm woofer with a low resonant frequency for small hi-fi enclosures.

Speaker type

Bass drivers / woofers

Nominal speaker size

10 cm / 4 inch

Frame (W × H)

94.6 × 94.6 mm

Rear mounting depth

51.4 mm

Cut-out

92 mm

Rated power

25 W

Part number 9089 · 8 Ω

M 10

A 100 mm cone midrange driver with an enclosed rear for the 1000–5000 Hz band in multi-way speakers.

Speaker type

Midrange drivers

Nominal speaker size

10 cm / 4 inch

Frame (W × H)

102 × 102 mm

Overall body depth

41 mm

Rear mounting depth

39 mm

Cut-out

95 mm

Rated power

80 W (12 dB/oct. high-pass from 800 Hz)

Part number 1080 · 8 Ω

MHT 12

A magnetostat tweeter for the range above 4000 Hz in high-end hi-fi speakers.

Speaker type

Tweeters

Frame (W × H)

112 × 112 mm

Overall body depth

51 mm

Rear mounting depth

46 mm

Cut-out

95 mm

Rated power

100 W (12 dB/oct. high-pass from 4000 Hz)

Specialist / product-specific mounting

Part number 50133 · 100 V

ML 16 A

A 100 V metal ceiling speaker with low-power transformer taps and a bayonet grille.

Speaker type

Installation / enclosed speakers

Nominal speaker size

16 cm

Frame (W × H)

170 × 170 mm

Overall body depth

62 mm

Rear mounting depth

54 mm

Cut-out

143 mm

Rated power

100 V taps: 2 / 1 / 0.5 W

Front protection rating

IP22

Specialist / product-specific mounting

Part number 9016 · 8 Ω

MR 130

A 130 mm cone midrange driver with an enclosed rear for the 1000–5000 Hz band in multi-way speakers.

Speaker type

Midrange drivers

Nominal speaker size

13 cm / 5 inch

Frame (W × H)

141 × 141 mm

Overall body depth

49.2 mm

Rear mounting depth

42 mm

Cut-out

110 mm

Rated power

80 W (12 dB/oct. high-pass from 800 Hz)

Part number 3042 · 8 Ω

PAM 13

An 8 Ω PA midrange driver with a 38 mm voice coil and a substantial ferrite motor.

Speaker type

Midrange drivers

Nominal speaker size

13 cm

Frame (W × H)

132.9 × 132.9 mm

Overall body depth

69 mm

Rear mounting depth

64.9 mm

Cut-out

115 mm

Rated power

60 W

Specialist / product-specific mounting

Part number 3050 · 8 Ω

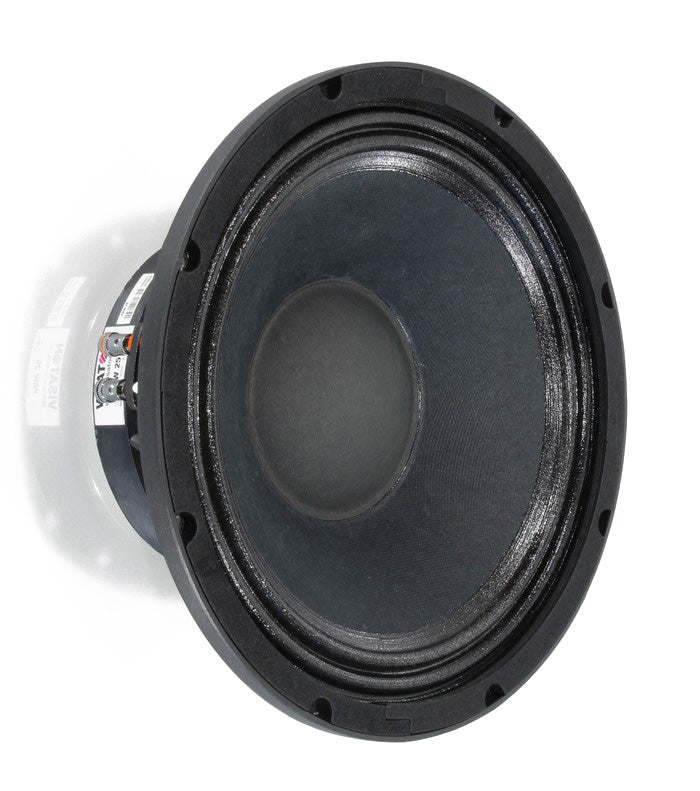

PAW 25

A 25 cm (10 inch) bass/midrange driver for passive PA cabinet designs.

Speaker type

Midrange drivers

Nominal speaker size

25 cm (10 inch)

Frame (W × H)

264 × 264 mm

Overall body depth

118 mm

Rear mounting depth

107 mm

Cut-out

230 mm

Rated power

300 W

Specialist / product-specific mounting

Part number 3052 · 8 Ω

PAW 30 ND

A 30 cm (12 inch) bass/midrange driver for passive PA cabinet designs.

Speaker type

Midrange drivers

Nominal speaker size

30 cm (12 inch)

Frame (W × H)

330 × 330 mm

Overall body depth

142 mm

Rear mounting depth

132 mm

Cut-out

286 mm

Rated power

400 W

Specialist / product-specific mounting

Part number 3054 · 8 Ω

PAW 38

A 38 cm (15 inch) woofer for passive PA cabinet designs.

Speaker type

Bass drivers / woofers

Nominal speaker size

38 cm (15 inch)

Frame (W × H)

392 × 392 mm

Overall body depth

159.4 mm

Rear mounting depth

144 mm

Cut-out

358 mm

Rated power

700 W

Specialist / product-specific mounting

Part number 3056 · 8 Ω

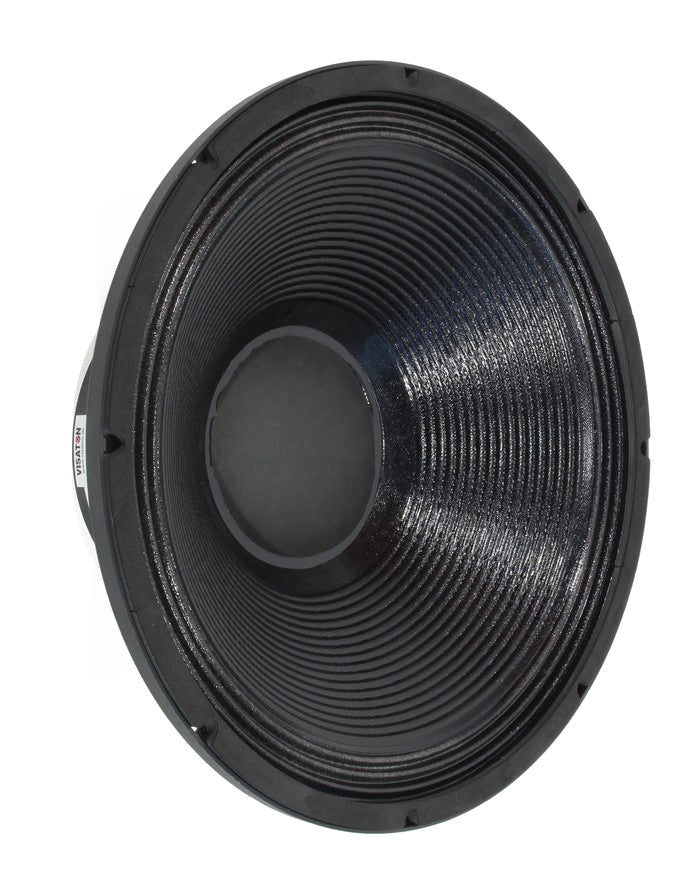

PAW 46

A 46 cm (18 inch) woofer for passive PA cabinet designs.

Speaker type

Bass drivers / woofers

Nominal speaker size

46 cm (18 inch)

Frame (W × H)

460 × 460 mm

Overall body depth

202 mm

Rear mounting depth

187 mm

Cut-out

422 mm

Rated power

700 W

Specialist / product-specific mounting

Part number 50140 · 100 V

PL 13 - 100 V

A weather-resistant 100 V projection speaker with an ABS housing, adjustable bracket and high speech intelligibility.

Speaker type

Full-range drivers

Rated power

100 V taps: 15; 7.5; 3.75 W

Front protection rating

IP 65

Specialist / product-specific mounting

Part number 4463 · 4 Ω

PL 5 RV

A small flush-mount speaker with a threaded fixing ring and a high-pass filter for speech reproduction in vehicle panels.

Speaker type

Installation / enclosed speakers

Frame (W × H)

54.1 × 54.1 mm

Overall body depth

24 mm

Cut-out

44 mm

Rated power

10 W

Specialist / product-specific mounting

Part number 4475 · 4 Ω

PL 7 RV

A black 4 Ω flush-mount speaker with a threaded fixing ring, intended for clear speech in vehicle panels.

Speaker type

Installation / enclosed speakers

Frame (W × H)

76 × 76 mm

Overall body depth

37 mm

Rear mounting depth

34.5 mm

Cut-out

64.5 mm

Rated power

10 W

Specialist / product-specific mounting

Part number 4477 · 4 Ω

PL 7 RV

A grey 4 Ω flush-mount speaker with a threaded fixing ring, intended for clear speech in vehicle panels.

Speaker type

Installation / enclosed speakers

Frame (W × H)

76 × 76 mm

Overall body depth

37 mm

Rear mounting depth

34.5 mm

Cut-out

64.5 mm

Rated power

10 W

Specialist / product-specific mounting

Part number 4474 · 8 Ω

PL 7 RV

A grey 8 Ω flush-mount speaker with a threaded fixing ring, intended for clear speech in vehicle panels.

Speaker type

Installation / enclosed speakers

Frame (W × H)

76 × 76 mm

Overall body depth

37 mm

Rear mounting depth

34.5 mm

Cut-out

64.5 mm

Rated power

10 W

Specialist / product-specific mounting

Part number 4476 · 8 Ω

PL 7 RV

A black 8 Ω flush-mount speaker with a threaded fixing ring, intended for clear speech in vehicle panels.

Speaker type

Installation / enclosed speakers

Frame (W × H)

76 × 76 mm

Overall body depth

37 mm

Rear mounting depth

34.5 mm

Cut-out

64.5 mm

Rated power

10 W

Specialist / product-specific mounting

Part number 4480 · 4 Ω

PL 8 RV

An open-backed flush-mount speaker with a threaded fixing ring for vehicle panels and intercoms.

Speaker type

Full-range drivers

Frame (W × H)

86.2 × 86.2 mm

Overall body depth

41.5 mm

Rear mounting depth

37 mm

Cut-out

72.5 mm

Rated power

10 W

Specialist / product-specific mounting

Part number 4600 · 4 Ω

PX 10

A 10 cm (4 inch) two-way coaxial speaker for vehicle audio.

Speaker type

Coaxial speakers

Nominal speaker size

10 cm (4 inch)

Frame (W × H)

128 × 128 mm

Overall body depth

53 mm

Rear mounting depth

45 mm

Cut-out

93 mm

Rated power

20 W

Specialist / product-specific mounting

Part number 4602 · 4 Ω

PX 10 HF

A 10 cm (4 inch) two-way coaxial speaker for vehicle audio.

Speaker type

Coaxial speakers

Nominal speaker size

10 cm (4 inch)

Frame (W × H)

115 × 94 mm

Overall body depth

49 mm

Rear mounting depth

46 mm

Cut-out

92 mm

Rated power

20 W

Specialist / product-specific mounting

Part number 4603 · 4 Ω

PX 13

A 13 cm (5 inch) two-way coaxial speaker for vehicle audio.

Speaker type

Coaxial speakers

Nominal speaker size

13 cm (5 inch)

Frame (W × H)

152 × 152 mm

Overall body depth

59 mm

Rear mounting depth

48 mm

Cut-out

116 mm

Rated power

20 W

Specialist / product-specific mounting

Part number 4605 · 4 Ω

PX 13 B

A 4 Ω coaxial speaker with an adapter ring for selected Fiat Ducato installations.

Speaker type

Coaxial speakers

Nominal speaker size

13 cm

Rated power

20 W

Specialist / product-specific mounting

Part number 2334 · 8 Ω

R 10 ND

A shallow, lightweight 8 Ω full-range driver for speech and equipment audio.

Speaker type

Full-range drivers

Nominal speaker size

10 cm (4 inch)

Frame (W × H)

102 × 102 mm

Overall body depth

35.5 mm

Rated power

20 W maximum long-term power (DIN EN 60268-5)

Front protection rating

IP54 front only in a sealed enclosure; adhesive and grille may be needed

Specialist / product-specific mounting

Part number 2036 · 4 Ω

R 10 S

A 10 cm full-range driver with high efficiency for monitoring speakers in electronic equipment and vehicles.

Speaker type

Full-range drivers

Nominal speaker size

10 cm / 4 inch

Frame (W × H)

102 × 102 mm

Overall body depth

39.2 mm

Rear mounting depth

35.5 mm

Cut-out

93 mm

Rated power

20 W

Front protection rating

IP53 — front side in a sealed enclosure

Part number 2037 · 8 Ω

R 10 S

A 10 cm full-range driver with high efficiency for monitoring speakers in electronic equipment and vehicles.

Speaker type

Full-range drivers

Nominal speaker size

10 cm / 4 inch

Frame (W × H)

102 × 102 mm

Overall body depth

39.2 mm

Rear mounting depth

35.5 mm

Cut-out

93 mm

Rated power

20 W

Front protection rating

IP53 — front side in a sealed enclosure

Part number 2330 · 4 Ω

R 10 S TE

A 10 cm full-range driver with 4.8 mm blade terminals for monitoring speakers in electronic equipment and vehicles.

Speaker type

Full-range drivers

Nominal speaker size

10 cm / 4 inch

Frame (W × H)

102 × 102 mm

Overall body depth

36 mm

Cut-out

93 mm

Rated power

20 W

Front protection rating

IP53 — front side in a sealed enclosure

Part number 2030 · 8 Ω

R 10 S TE

A 10 cm, 8 Ω speech and music driver with unequal push-on terminals.

Speaker type

Full-range drivers

Nominal speaker size

10 cm

Frame (W × H)

102 × 102 mm

Overall body depth

36 mm

Cut-out

93 mm

Rated power

20 W

Front protection rating

IP53 at front with sealed mounting

Specialist / product-specific mounting

Part number 2039 · 100 V

R 10 S-TR

A 10 cm full-range driver with a 100 V transformer for distributed speech systems.

Speaker type

Installation / enclosed speakers

Frame (W × H)

102 × 102 mm

Overall body depth

71 mm

Cut-out

93 mm

Rated power

100 V taps: 6 W/3 W/1.5 W

Specialist / product-specific mounting

Part number 2045 · 100 V

R 10 SC

A 10 cm full-range driver with a 100 V transformer for distributed speech systems.

Speaker type

Installation / enclosed speakers

Frame (W × H)

102 × 102 mm

Overall body depth

78.5 mm

Rated power

100 V taps: 6 W/3 W/1.5 W

Front protection rating

IP64 / IP67 front only in a sealed enclosure; adhesive and grille may be needed

Part number 2040 · 4 Ω

R 10 SC

A magnetically shielded 10 cm full-range driver with a water-repellent cone for public and transport installations.

Speaker type

Full-range drivers

Nominal speaker size

10 cm / 4 inch

Frame (W × H)

102 × 102 mm

Overall body depth

48 mm

Rear mounting depth

44 mm

Cut-out

93 mm

Rated power

20 W

Front protection rating

IP64 — front side in a sealed enclosure

Part number 2041 · 8 Ω

R 10 SC

A magnetically shielded 10 cm full-range driver with a water-repellent cone for public and transport installations.

Speaker type

Full-range drivers

Nominal speaker size

10 cm / 4 inch

Frame (W × H)

102 × 102 mm

Overall body depth

48 mm

Rear mounting depth

44 mm

Cut-out

93 mm

Rated power

20 W

Front protection rating

IP64 — front side in a sealed enclosure

Part number 2047 · 8 Ω

R 10 SC SPEZIAL

A magnetically shielded 8 Ω driver with a water-repellent cone and front gasket.

Speaker type

Full-range drivers

Nominal speaker size

10 cm

Frame (W × H)

102 × 102 mm

Overall body depth

48 mm

Rear mounting depth

44 mm

Cut-out

93 mm

Rated power

20 W

Front protection rating

IP64 at front with sealed mounting

Specialist / product-specific mounting

Part number 8011 · 8 Ω

SC 10 N

A magnetically shielded 25 mm fabric dome tweeter for the range above 3000 Hz in two-way systems.

Speaker type

Tweeters

Nominal speaker size

25 mm / 1 inch

Frame (W × H)

104 × 104 mm

Cut-out

85 mm

Rated power

100 W (12 dB/oct. high-pass from 4000 Hz; datasheet also 50 W from 2000 Hz)

Part number 8013 · 8 Ω

SC 13

A magnetically shielded 13 cm full-range driver for multimedia and surround speakers, also usable as a low-midrange driver.

Speaker type

Full-range drivers

Nominal speaker size

13 cm / 5 inch

Frame (W × H)

131 × 131 mm

Overall body depth

62 mm

Rear mounting depth

61 mm

Cut-out

113 mm

Rated power

40 W

Part number 8030 · 8 Ω

SC 3.7 ND WP

A 3 x 7 cm oval full-range driver with a neodymium magnet for built-in use in TVs and PCs.

Speaker type

Full-range drivers

Nominal speaker size

3 × 7 cm / 1.2 × 2.8 inch

Frame (W × H)

30.5 × 70 mm

Overall body depth

18.8 mm

Rated power

3 W

Front protection rating

IPX4 — front side in a sealed enclosure

Part number 8036 · 8 Ω

SC 4.6 FL

A flat wooden-cone driver for compact hi-fi and built-in audio.

Speaker type

Full-range drivers

Nominal speaker size

4 × 6 cm / 1.6 × 2.4 inch

Frame (W × H)

41.5 × 60.4 mm

Overall body depth

12.5 mm

Rated power

4 W

Front protection rating

IP63 — front side in a sealed enclosure

Specialist / product-specific mounting

Part number 8047 · 4 Ω

SC 4.7 ND

A shielded neodymium oval driver for very compact electronic audio.

Speaker type

Full-range drivers

Nominal speaker size

4 × 7 cm / 1.6 × 2.8 inch

Frame (W × H)

41.5 × 70.5 mm

Overall body depth

27.5 mm

Cut-out

35 x 65 mm (oval)

Rated power

2 W

Specialist / product-specific mounting

Part number 8048 · 8 Ω

SC 4.7 ND

A shielded neodymium oval driver for very compact electronic audio.

Speaker type

Full-range drivers

Nominal speaker size

4 × 7 cm / 1.6 × 2.8 inch

Frame (W × H)

41.5 × 70.5 mm

Overall body depth

27.5 mm

Cut-out

35 x 65 mm (oval)

Rated power

2 W

Specialist / product-specific mounting

Part number 8051 · 8 Ω

SC 4.9 FL

A flat 8 Ω oval driver with a wood-fibre cone and a neodymium magnet.

Speaker type

Full-range drivers

Nominal speaker size

4 × 9 cm

Frame (W × H)

40 × 90 mm

Overall body depth

14 mm

Cut-out

Explicit source cut-out: 36 × 86 mm oval.

Rated power

4 W

Front protection rating

IP63 at front with sealed mounting

Specialist / product-specific mounting

Part number 8005 · 8 Ω

SC 5

A magnetically shielded 13 mm polycarbonate dome tweeter for the range above 4000 Hz in compact two-way systems.

Speaker type

Tweeters

Nominal speaker size

13 mm / 0.5 inch

Frame (W × H)

51.5 × 51.5 mm

Rear mounting depth

22.5 mm

Cut-out

48 mm

Rated power

60 W (12 dB/oct. high-pass from 6000 Hz)

Specialist / product-specific mounting

Part number 8006 · 8 Ω

SC 5.9

A magnetically shielded oval driver for multimedia systems and TV repairs.

Speaker type

Full-range drivers

Nominal speaker size

5 × 9 cm / 2 × 3.5 inch

Frame (W × H)

50.5 × 90.5 mm

Overall body depth

43 mm

Rear mounting depth

40 mm

Cut-out

Explicit source cut-out: 43 × 82 mm oval.

Rated power

10 W

Specialist / product-specific mounting

Part number 8053 · 8 Ω

SC 5.9 FLX

A flat oval wooden-cone driver for miniature hi-fi and slim equipment.

Speaker type

Full-range drivers

Nominal speaker size

5 × 9 cm / 2 × 3.5 inch

Frame (W × H)

49.8 × 89.9 mm

Overall body depth

16 mm

Rated power

4 W

Front protection rating

IP63 — front side in a sealed enclosure

Specialist / product-specific mounting

Part number 8055 · 4 Ω

SC 5.9 ND

A light, shielded oval driver for narrow multimedia enclosures.

Speaker type

Full-range drivers

Nominal speaker size

5 × 9 cm / 2 × 3.5 inch

Frame (W × H)

50 × 90.5 mm

Overall body depth

28.5 mm

Cut-out

43 x 82 mm (oval)

Rated power

3 W

Specialist / product-specific mounting

Part number 8056 · 8 Ω

SC 5.9 ND

A light, shielded oval driver for narrow multimedia enclosures.

Speaker type

Full-range drivers

Nominal speaker size

5 × 9 cm / 2 × 3.5 inch

Frame (W × H)

50 × 90.5 mm

Overall body depth

28.5 mm

Cut-out

43 x 82 mm (oval)

Rated power

3 W

Specialist / product-specific mounting

Part number 8002 · 4 Ω

SC 5.9 OM

A compact oval driver for multimedia audio and compatible TV replacements.

Speaker type

Full-range drivers

Nominal speaker size

5 × 9 cm / 2 × 3.5 inch

Frame (W × H)

50.5 × 90.5 mm

Overall body depth

32.2 mm

Rear mounting depth

29.7 mm

Cut-out

Explicit source cut-out: 43 × 82 mm oval.

Rated power

10 W

Specialist / product-specific mounting

Part number 8003 · 8 Ω

SC 5.9 OM

An 8 Ω oval full-range driver for slim multimedia and built-in audio equipment.

Speaker type

Full-range drivers

Nominal speaker size

5 × 9 cm

Frame (W × H)

50.5 × 90.5 mm

Overall body depth

32.2 mm

Rear mounting depth

29.7 mm

Cut-out

Explicit source cut-out: 43 × 82 mm oval.

Rated power

10 W

Specialist / product-specific mounting

Part number 8018 · 8 Ω

SC 8 N

A magnetically shielded 8 cm full-range driver with a rubber surround for shielded two-way and multimedia systems.

Speaker type

Full-range drivers

Nominal speaker size

8 cm / 3.3 inch

Frame (W × H)

77.5 × 77.5 mm

Overall body depth

48.2 mm

Rear mounting depth

42.5 mm

Cut-out

73 mm

Rated power

30 W

Four fixing points

Part number 2274 · 4 Ω

SL 70 NDV

A light, robust full-range driver for narrow speaker columns.

Speaker type

Full-range drivers

Nominal speaker size

6.5 cm / 2.5 inch

Frame (W × H)

66 × 66 mm

Overall body depth

35.6 mm

Cut-out

Two explicit round cut-outs apply by mounting direction: 63 mm for front installation or 60 mm for rear installation.

Rated power

8 W

Front protection rating

IP65 — front side in a sealed enclosure

Four fixing points

Part number 2050 · 4 Ω

SL 713

An efficient oval driver for slim speech and public-address columns.

Speaker type

Full-range drivers

Nominal speaker size

7 × 13 cm / 2.8 × 5 inch

Frame (W × H)

75.5 × 130.5 mm

Overall body depth

47 mm

Rear mounting depth

41.5 mm

Cut-out

Explicit source cut-out: 66 × 119 mm oval.

Rated power

10 W

Four fixing points

Part number 2278 · 4 Ω

SL 83

A compact 4 Ω driver with a plastic cone for demanding built-in audio applications.

Speaker type

Full-range drivers

Nominal speaker size

8 cm

Frame (W × H)

80 × 80 mm

Overall body depth

39 mm

Rear mounting depth

36.7 mm

Cut-out

72 mm

Rated power

8 W

Front protection rating

IPX5 / IPX7

Specialist / product-specific mounting

Part number 2091 · 8 Ω

SL 87 FE

A ferrite-magnet driver for small hi-fi speakers and sound columns.

Speaker type

Full-range drivers

Nominal speaker size

8.5 cm / 3.4 inch

Frame (W × H)

84.4 × 84.4 mm

Overall body depth

49 mm

Rear mounting depth

41.4 mm

Cut-out

80 mm

Rated power

10 W

Front protection rating

IP64 — front side in a sealed enclosure

Four fixing points

Part number 2394 · 8 Ω

SL 87 FS

A flat 8 Ω full-range driver for built-in speech systems with limited mounting depth.

Speaker type

Full-range drivers

Nominal speaker size

8 cm

Frame (W × H)

83 × 83 mm

Overall body depth

29.1 mm

Rear mounting depth

28.6 mm

Rated power

10 W

Front protection rating

IP54 at front with sealed mounting

Specialist / product-specific mounting

Part number 2086 · 8 Ω

SL 87 ND

A light neodymium driver for columns and small hi-fi speakers.

Speaker type

Full-range drivers

Nominal speaker size

8.5 cm / 3.4 inch

Frame (W × H)

84.4 × 84.4 mm

Overall body depth

40 mm

Rear mounting depth

32 mm

Cut-out

80 mm

Rated power

10 W

Front protection rating

IP64 — front side in a sealed enclosure

Four fixing points

Part number 2087 · 4 Ω

SL 87 WPM

A waterproof 8 cm full-range speaker for voice and signal output in outdoor sound reinforcement and alarm systems.

Speaker type

Full-range drivers

Nominal speaker size

8 cm / 3.3 inch

Frame (W × H)

83 × 83 mm

Overall body depth

29 mm

Cut-out

80 mm

Rated power

20 W

Front protection rating

IP65 / IPX8 — front side in a sealed enclosure; IPX8 tested at 1 m water depth for 18.5 h

Four fixing points

Part number 2088 · 8 Ω

SL 87 WPM

A waterproof 8 cm full-range speaker for voice and signal output in outdoor sound reinforcement and alarm systems.

Speaker type

Full-range drivers

Nominal speaker size

8 cm / 3.3 inch

Frame (W × H)

83 × 83 mm

Overall body depth

29 mm

Cut-out

80 mm

Rated power

20 W

Front protection rating

IP65 / IPX8 — front side in a sealed enclosure; IPX8 tested at 1 m water depth for 18.5 h

Four fixing points

Part number 2092 · 4 Ω

SL 87 XA

A waterproof 8 cm full-range speaker with a very high sound pressure level for voice and signal output.

Speaker type

Full-range drivers

Nominal speaker size

8 cm / 3.3 inch

Frame (W × H)

83 × 83 mm

Overall body depth

37 mm

Cut-out

80 mm

Rated power

20 W

Front protection rating

IP65 / IPX8 — front side in a sealed enclosure; IPX8 tested at 1 m water depth for 16 h

Four fixing points

Part number 2096 · 8 Ω

SL 87 XA

A waterproof 8 cm full-range speaker with a very high sound pressure level for voice and signal output.

Speaker type

Full-range drivers

Nominal speaker size

8 cm / 3.3 inch

Frame (W × H)

83 × 83 mm

Overall body depth

37 mm

Cut-out

80 mm

Rated power

20 W

Front protection rating

IP65 / IPX8 — front side in a sealed enclosure; IPX8 tested at 1 m water depth for 16 h

Four fixing points

Part number 1271 · 8 Ω

TI 100

A 10 cm titanium-cone low-midrange driver for small high-end hi-fi speakers and multi-way midrange use.

Speaker type

Midrange drivers

Nominal speaker size

10 cm / 4 inch

Frame (W × H)

121.5 × 121.5 mm

Rear mounting depth

72 mm

Cut-out

101 mm

Rated power

40 W

Part number 1342 · 8 Ω

TIW 250 XS

A 25 cm high-end woofer with a fibreglass sandwich cone and very long excursion for large hi-fi systems.

Speaker type

Bass drivers / woofers

Nominal speaker size

25 cm / 10 inch

Frame (W × H)

276 × 276 mm

Rear mounting depth

115 mm

Cut-out

235 mm

Rated power

200 W

Part number 1364 · 8 Ω

TIW 300

A 30 cm high-end woofer with a 65 mm voice coil for large, high-output hi-fi systems.

Speaker type

Bass drivers / woofers

Nominal speaker size

30 cm / 12 inch

Frame (W × H)

329 × 329 mm

Rear mounting depth

143 mm

Cut-out

288 mm

Rated power

300 W

Part number 24520 · 8 Ω

TL 16 H

A high-end horn tweeter for the range above 5000 Hz in high-efficiency multi-way speakers.

Speaker type

Tweeters

Frame (W × H)

84 × 84 mm

Overall body depth

132 mm

Rated power

150 W (12 dB/oct. high-pass from 7500 Hz; datasheet: from 7000 Hz, or 70 W from 5000 Hz)

Specialist / product-specific mounting

Part number 1000 · 8 Ω

TW 6 NG

A cone tweeter with a sealed rear for the range above 5000 Hz, suitable as a replacement in hi-fi speakers.

Speaker type

Tweeters

Frame (W × H)

60 × 60 mm

Overall body depth

27 mm

Cut-out

56 mm

Rated power

60 W (12 dB/oct. high-pass from 5000 Hz; datasheet: 80 W from 5000 Hz or 40 W from 3000 Hz)

Part number 9002 · 8 Ω

TW 70

A cone tweeter for the range above 5000 Hz, especially suited as a replacement unit in hi-fi speakers.

Speaker type

Tweeters

Frame (W × H)

64 × 64 mm

Overall body depth

29.7 mm

Rear mounting depth

29 mm

Cut-out

64 mm

Rated power

80 W (12 dB/oct. high-pass from 5000 Hz) / 40 W (12 dB/oct. high-pass from 3000 Hz)

Part number 9017 · 4 Ω

W 100 C

A compact 4 Ω woofer for small multiway loudspeakers.

Speaker type

Bass drivers / woofers

Nominal speaker size

10 cm

Frame (W × H)

112 × 112 mm

Rear mounting depth

60.3 mm

Cut-out

93 mm

Rated power

30 W

Specialist / product-specific mounting

Part number 9018 · 8 Ω

W 100 C

A compact 8 Ω woofer for small multiway loudspeakers.

Speaker type

Bass drivers / woofers

Nominal speaker size

10 cm

Frame (W × H)

112 × 112 mm

Rear mounting depth

60.3 mm

Cut-out

93 mm

Rated power

30 W

Specialist / product-specific mounting

Part number 9020 · 4 Ω

W 100 S

A 10 cm bass-midrange driver for compact hi-fi speakers and the low-midrange of three-way systems.

Speaker type

Midrange drivers

Nominal speaker size

10 cm / 4 inch

Frame (W × H)

122 × 122 mm

Overall body depth

54 mm

Rear mounting depth

48 mm

Cut-out

94 mm

Rated power

30 W

Part number 9021 · 8 Ω

W 100 S

A 10 cm bass-midrange driver for compact hi-fi speakers and the low-midrange of three-way systems.

Speaker type

Midrange drivers

Nominal speaker size

10 cm / 4 inch

Frame (W × H)

122 × 122 mm

Overall body depth

54 mm

Rear mounting depth

48 mm

Cut-out

94 mm

Rated power

30 W

Part number 9049 · 2 x 4 Ω

W 100 X

A 10 cm dual-voice-coil woofer with a low resonance, made for compact subwoofers in hi-fi and industry.

Speaker type

Bass drivers / woofers

Nominal speaker size

10 cm / 4 inch

Frame (W × H)

116 × 116 mm

Rear mounting depth

57.5 mm

Cut-out

97 mm

Rated power

40 W

Part number 9022 · 4 Ω

W 130 S

A 13 cm bass-midrange driver for use as a woofer or the low-midrange of large three-way systems.

Speaker type

Midrange drivers

Nominal speaker size

13 cm / 5 inch

Frame (W × H)

146 × 146 mm

Overall body depth

59 mm

Rear mounting depth

53 mm

Cut-out

109 mm

Rated power

50 W

Part number 9023 · 8 Ω

W 130 S

A 13 cm bass-midrange driver for use as a woofer or the low-midrange of large three-way systems.

Speaker type

Midrange drivers

Nominal speaker size

13 cm / 5 inch

Frame (W × H)

146 × 146 mm

Overall body depth

59 mm

Rear mounting depth

53 mm

Cut-out

109 mm

Rated power

50 W

Part number 9059 · 2 x 4 Ω

W 130 X

A 13 cm woofer with a 2 x 4 Ω dual voice coil, made for very compact subwoofers.

Speaker type

Bass drivers / woofers

Nominal speaker size

13 cm / 5 inch

Frame (W × H)

148.2 × 148.2 mm

Rear mounting depth

69.2 mm

Cut-out

123 mm

Rated power

60 W

Part number 9048 · 4 Ω

W 150 X

A 15 cm (5.9 inch) 4 Ω woofer with a robust polypropylene membrane, also suited to compact subwoofer applications.

Speaker type

Bass drivers / woofers

Nominal speaker size

15 cm / 5.9 inch

Frame (W × H)

152.2 × 134.2 mm

Rear mounting depth

66.5 mm

Rated power

50 W

Specialist / product-specific mounting

Part number 9046 · 2 Ω

W 165 A - 2 Ω

A robust 16.5 cm, 2 Ω woofer with a black glass-fibre cone, metal basket, rubber surround and ±10.3 mm excursion.

Speaker type

Bass drivers / woofers

Nominal speaker size

16.5 cm

Frame (W × H)

170 × 170 mm

Overall body depth

67.3 mm

Rear mounting depth

63.7 mm

Cut-out

144 mm

Rated power

60 W

Front protection rating

IP64 — front side only when built into a sealed enclosure

Specialist / product-specific mounting

Part number 9063 · 8 Ω

W 170

A 17 cm hi-fi woofer for simple two-way speakers, car rear tray systems and replacement work.

Speaker type

Bass drivers / woofers

Nominal speaker size

17 cm / 6.5 inch

Frame (W × H)

170 × 170 mm

Overall body depth

73 mm

Rear mounting depth

63 mm

Cut-out

146 mm

Rated power

40 W

Part number 9024 · 4 Ω

W 170 S

A 17 cm hi-fi woofer built for long cone travel and bass duty in multi-way speakers.

Speaker type

Bass drivers / woofers

Nominal speaker size

17 cm / 6.5 inch

Frame (W × H)

187.3 × 187.3 mm

Rear mounting depth

74 mm

Cut-out

148 mm

Rated power

50 W

Part number 9025 · 8 Ω

W 170 S

A 17 cm hi-fi woofer built for long cone travel and bass duty in multi-way speakers.

Speaker type

Bass drivers / woofers

Nominal speaker size

17 cm / 6.5 inch

Frame (W × H)

187.3 × 187.3 mm

Rear mounting depth

74 mm

Cut-out

148 mm

Rated power

50 W

Part number 9064 · 4 Ω

W 200

A 20 cm, 4 Ω woofer for conventional multiway loudspeaker cabinets.

Speaker type

Bass drivers / woofers

Nominal speaker size

20 cm

Frame (W × H)

206 × 206 mm

Overall body depth

87 mm

Rear mounting depth

79 mm

Cut-out

185 mm

Rated power

50 W

Specialist / product-specific mounting

Part number 9065 · 8 Ω

W 200

A 20 cm, 8 Ω woofer for conventional multiway loudspeaker cabinets.

Speaker type

Bass drivers / woofers

Nominal speaker size

20 cm

Frame (W × H)

206 × 206 mm

Overall body depth

87 mm

Rear mounting depth

79 mm

Cut-out

185 mm

Rated power

50 W

Specialist / product-specific mounting

Part number 9029 · 4 Ω

W 200 S

A 20 cm hi-fi woofer with a 35 mm voice coil for high-power bass in multi-way speakers.

Speaker type

Bass drivers / woofers

Nominal speaker size

20 cm / 8 inch

Frame (W × H)

232 × 232 mm

Overall body depth

95 mm

Rear mounting depth

88 mm

Cut-out

184 mm

Rated power

75 W

Part number 9030 · 8 Ω

W 200 S

A 20 cm hi-fi woofer with a 35 mm voice coil for high-power bass in multi-way speakers.

Speaker type

Bass drivers / woofers

Nominal speaker size

20 cm / 8 inch

Frame (W × H)

232 × 232 mm

Overall body depth

95 mm

Rear mounting depth

88 mm

Cut-out

184 mm

Rated power

75 W

Part number 9067 · 8 Ω

W 250

A 25 cm woofer with an air-dried, reinforced cone for hi-fi cabinets and high-power use.

Speaker type

Bass drivers / woofers

Nominal speaker size

25 cm / 10 inch

Frame (W × H)

255 × 255 mm

Overall body depth

110 mm

Rear mounting depth

102 mm

Cut-out

236 mm

Rated power

90 W

Part number 9034 · 4 Ω

W 250 S

A 25 cm hi-fi woofer with a 38 mm voice coil for the bass in large multi-way systems.

Speaker type

Bass drivers / woofers

Nominal speaker size

25 cm / 10 inch

Frame (W × H)

283 × 283 mm

Overall body depth

120 mm

Rear mounting depth

112 mm

Cut-out

233 mm

Rated power

100 W

Part number 9035 · 8 Ω

W 250 S

A 25 cm hi-fi woofer with a 38 mm voice coil for the bass in large multi-way systems.

Speaker type

Bass drivers / woofers

Nominal speaker size

25 cm / 10 inch

Frame (W × H)

283 × 283 mm

Overall body depth

120 mm

Rear mounting depth

112 mm

Cut-out

233 mm

Rated power

100 W

Part number 9069 · 8 Ω

W 300

A 30 cm woofer with an air-dried cone and vented pole piece for large cabinets and replacement work.

Speaker type

Bass drivers / woofers

Nominal speaker size

30 cm / 12 inch

Frame (W × H)

305 × 305 mm

Overall body depth

132 mm

Rear mounting depth

120 mm

Cut-out

280 mm

Rated power

120 W

Part number 50312 · 100 V / 8 Ω

WB 10

A black two-way cabinet speaker for music and speech, with selectable 100 V or 8 Ω operation.

Speaker type

Installation / enclosed speakers

Frame (W × H)

130 × 208 mm

Overall body depth

122 mm

Rated power

40 W at 8 Ω; transformer taps: 15 W/7.5 W/4 W/2 W/8 Ω

Front protection rating

IP54

Specialist / product-specific mounting

Part number 50310 · 100 V / 8 Ω

WB 10

A white two-way cabinet speaker for music and speech, with selectable 100 V or 8 Ω operation.

Speaker type

Installation / enclosed speakers

Frame (W × H)

130 × 208 mm

Overall body depth

122 mm

Rated power

40 W at 8 Ω; transformer taps: 15 W/7.5 W/4 W/2 W/8 Ω

Front protection rating

IP54

Specialist / product-specific mounting

Part number 50313 · 100 V / 8 Ω

WB 13

A black two-way cabinet speaker for music and speech, with selectable 100 V or 8 Ω operation.

Speaker type

Installation / enclosed speakers

Frame (W × H)

180 × 240 mm

Overall body depth

140 mm

Rated power

50 W at 8 Ω; transformer taps: 25 W/15 W/7.5 W/4 W/2 W/8 Ω

Front protection rating

IP54

Specialist / product-specific mounting

Part number 50311 · 100 V / 8 Ω

WB 13

A white two-way cabinet speaker for music and speech, with selectable 100 V or 8 Ω operation.

Speaker type

Installation / enclosed speakers

Frame (W × H)

180 × 240 mm

Overall body depth

140 mm

Rated power

50 W at 8 Ω; transformer taps: 25 W/15 W/7.5 W/4 W/2 W/8 Ω

Front protection rating

IP54

Specialist / product-specific mounting

Part number 50318 · 100 V / 8 Ω

WB 16

A black two-way cabinet speaker for music and speech, with selectable 100 V or 8 Ω operation.

Speaker type

Installation / enclosed speakers

Frame (W × H)

220 × 292 mm

Overall body depth

172 mm

Rated power

60 W at 8 Ω; transformer taps: 25 W/15 W/7.5 W/4 W/2 W/8 Ω

Front protection rating

IP54

Specialist / product-specific mounting

Part number 50316 · 100 V / 8 Ω

WB 16

A white two-way cabinet speaker for music and speech, with selectable 100 V or 8 Ω operation.

Speaker type

Installation / enclosed speakers

Frame (W × H)

220 × 292 mm

Overall body depth

172 mm

Rated power

60 W at 8 Ω; transformer taps: 25 W/15 W/7.5 W/4 W/2 W/8 Ω

Front protection rating

IP54

Specialist / product-specific mounting

Part number 9051 · 8 Ω

WF 130 ND

A very shallow 13 cm low-midrange driver with a neodymium magnet, for installations with little depth behind the panel.

Speaker type

Midrange drivers

Nominal speaker size

13 cm / 5 inch

Frame (W × H)

148.5 × 148.5 mm

Rear mounting depth

19.4 mm

Cut-out

123 mm

Rated power

40 W

Part number 50329 · 100 V

WL 10 P

A small IP66 cabinet speaker for distributed speech and background music systems.

Speaker type

Installation / enclosed speakers

Frame (W × H)

119 × 119 mm

Rated power

100 V taps: 6 W / 4 W / 2 W / 1 W / 0.5 W

Front protection rating

IP66

Specialist / product-specific mounting

Part number 50302 · 100 V

WL 13 N

A white wooden wall speaker for 100 V announcements and background music.

Speaker type

Installation / enclosed speakers

Frame (W × H)

280 × 170 mm

Overall body depth

65 mm

Rated power

100 V taps: 6 W/3 W/1.5 W

Specialist / product-specific mounting

Part number 50303 · 100 V

WL 13 NR

A white wooden wall speaker for 100 V announcements and background music, with local volume control.

Speaker type

Installation / enclosed speakers

Frame (W × H)

280 × 170 mm

Overall body depth

65 mm

Rated power

100 V taps: 6 W/3 W/1.5 W

Specialist / product-specific mounting

Part number 50321 · 100 V

WL 13 P

A white plastic wall speaker for 100 V announcements and background music.

Speaker type

Installation / enclosed speakers

Frame (W × H)

280 × 170 mm

Overall body depth

61 mm

Rated power

100 V taps: 6 W/3 W/1.5 W

Specialist / product-specific mounting

Part number 50323 · 100 V

WL 13 PR

A white plastic wall speaker for 100 V announcements and background music, with local volume control.

Speaker type

Installation / enclosed speakers

Frame (W × H)

280 × 170 mm

Overall body depth

61 mm

Rated power

100 V taps: 6 W/3 W/1.5 W

Specialist / product-specific mounting

Part number 50370 · 100 V

WL 16 EV - 100 V

Wall-mounted speaker with a white plastic cabinet and metal grille. Fitted with a full range driver and a 100 V transformer.

Speaker type

Installation / enclosed speakers

Frame (W × H)

204 × 254 mm

Overall body depth

85 mm

Rated power

100 V taps: 6 W/3 W/1.5 W

Specialist / product-specific mounting

Part number 50373 · 100 V

WL 25.20 AB EV - 100 V

Wall-mounted speaker with a white plastic cabinet and metal grille. Fitted with two full range drivers and two 100 V transformers for space saving A/B connection according to DIN EN 60849/VDE 0828 and VDE 0833–4.

Speaker type

Installation / enclosed speakers

Frame (W × H)

204 × 254 mm

Overall body depth

85 mm

Rated power

2 × 6 W / 2 × 3 W / 2 × 1.5 W transformer taps (100 V, A/B circuits)

Specialist / product-specific mounting

Part number 50373 · 100 V

WL 25.20 EV - 100 V

Wall-mounted speaker with a white plastic cabinet and metal grille. Fitted with a full range driver and a 100 V transformer.

Speaker type

Installation / enclosed speakers

Frame (W × H)

204 × 254 mm

Overall body depth

85 mm

Rated power

100 V taps: 6 W/3 W/1.5 W (100 V)

Specialist / product-specific mounting

Part number 1053 · 8 Ω

WS 13 E

A 13 cm full-range driver with a paper cone, also suited to low-midrange duty and hi-fi replacement work.

Speaker type

Full-range drivers

Nominal speaker size

13 cm / 5 inch

Frame (W × H)

131 × 131 mm

Overall body depth

52 mm

Rear mounting depth

51 mm

Cut-out

113 mm

Rated power

40 W

Part number 1054 · 4 Ω

WS 17 E

A 17 cm hi-fi woofer for multi-way systems and replacement work, in the 4 Ω version.

Speaker type

Bass drivers / woofers

Nominal speaker size

17 cm / 6.5 inch

Frame (W × H)

188 × 188 mm

Overall body depth

79 mm

Rear mounting depth

75 mm

Cut-out

150 mm

Rated power

60 W

Part number 1055 · 8 Ω

WS 17 E

A 17 cm hi-fi woofer for multi-way systems and replacement work, in the 8 Ω version.

Speaker type

Bass drivers / woofers

Nominal speaker size

17 cm / 6.5 inch

Frame (W × H)

188 × 188 mm

Overall body depth

79 mm

Rear mounting depth

75 mm

Cut-out

150 mm

Rated power

60 W

Part number 1057 · 4 Ω

WS 20 E - 4 Ω

20 cm (8") HiFi woofer with polypropylene cone. Due to balanced frequency response curve suitable as low-midrange driver for large 4-way speaker systems.

Speaker type

Bass drivers / woofers

Nominal speaker size

20 cm

Frame (W × H)

236 × 236 mm

Overall body depth

85.9 mm

Rear mounting depth

85 mm

Cut-out

186 mm

Rated power

80 W

Front protection rating

IP65 — front side only when built into a sealed enclosure

Specialist / product-specific mounting

Part number 1056 · 8 Ω

WS 20 E

A 20 cm hi-fi woofer for two-way systems and as a replacement driver in many hi-fi speakers.

Speaker type

Bass drivers / woofers

Nominal speaker size

20 cm / 8 inch

Frame (W × H)

236 × 236 mm

Overall body depth

85.9 mm

Rear mounting depth

85 mm

Cut-out

186 mm

Rated power

80 W

Front protection rating

IP65 — front side in a sealed enclosure (sealing and a front grille may be needed)

Part number 1057 · 4 Ω

WS 25 E 4 Ω

A 25 cm, 4 Ω woofer with a coated paper cone, rubber surround and extended rear pole plate for long excursion.

Speaker type

Bass drivers / woofers

Nominal speaker size

25 cm

Frame (W × H)

283 × 283 mm

Overall body depth

107 mm

Rear mounting depth

106 mm

Cut-out

225 mm

Rated power

80 W

Specialist / product-specific mounting

Part number 1061 · 8 Ω

WS 25 E

A 25 cm hi-fi woofer with an extended rear pole plate, suited to replacing woofers in standard hi-fi speakers.

Speaker type

Bass drivers / woofers

Nominal speaker size

25 cm / 10 inch

Frame (W × H)

283 × 283 mm

Overall body depth

107 mm

Rear mounting depth

106 mm

Cut-out

225 mm

Rated power

80 W
